Installing and Removing an AC Power Supply
Enterasys S-Series S4 Chassis Hardware Installation Guide 3-15
4. With the power supply properly inserted into the PS1 slot, carefully slide the supply forward
until it is connected to the backplane. See Figure 3-12.
The front panel should be flush with the face of the S4 chassis. If you encounter significant
resistance before the front panel is flush, remove and reinsert the power supply. Do not force
the power supply into place.

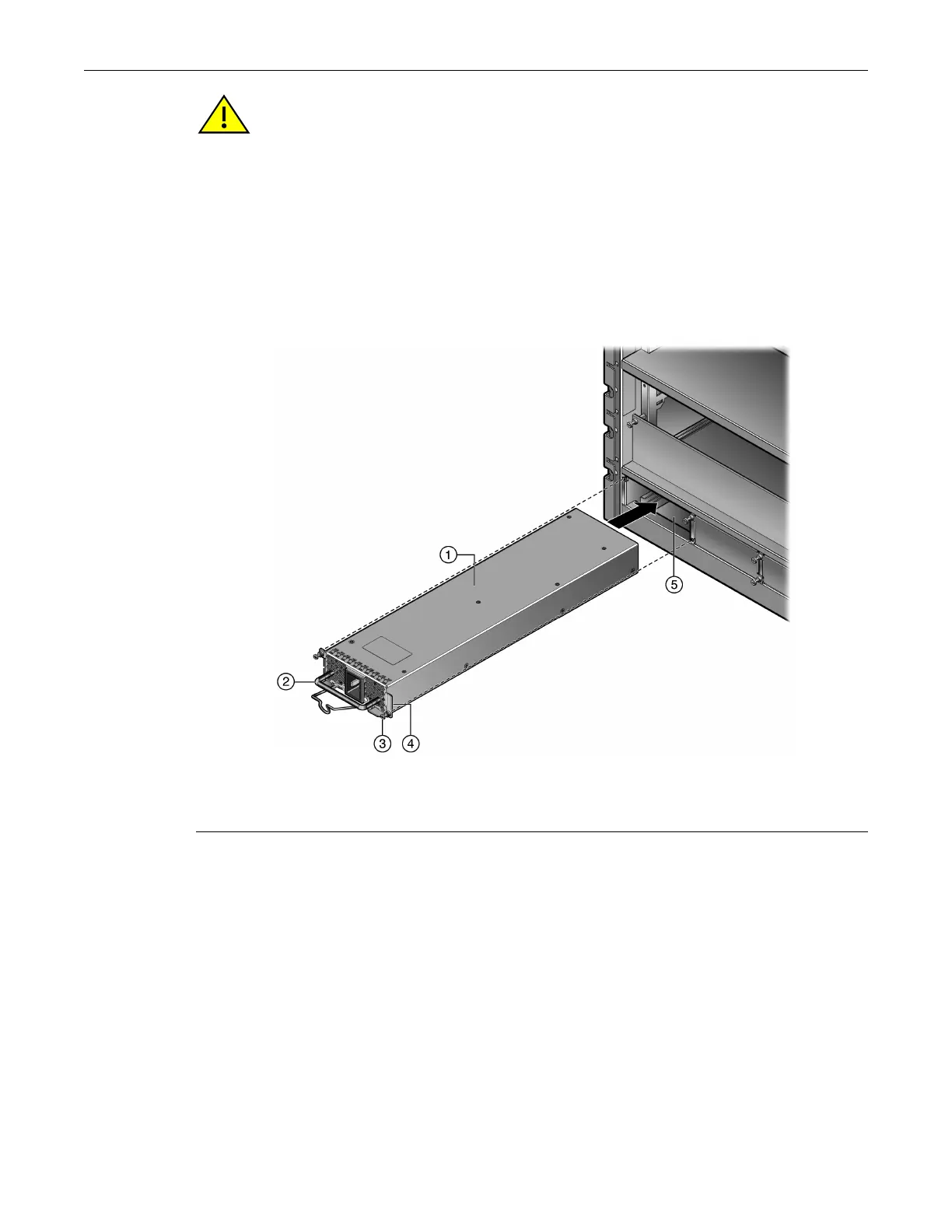

Figure 3-12 Installing an AC Power Supply
5. Secure the power supply to the chassis by screwing the captive screws into the chassis.
Caution: Forcing a misaligned power supply into place can damage the power supply and/or the
chassis backplane.
Precaución: Colocar de manera forzada una fuente de poder o no colocarla bien alineada podría
dañarla y/o maltratar el panel posterior del chasis.
1 Mandatory power supply installed in slot PS1 4 Faceplate
2 Captive screw 5 Power supply slot
3 Power supply handle
