Installing the S4 Chassis
3-8 Chassis Setup
Installing the Cable Management Clips
You can keep S-Series module cables neat and secure by installing the cable management clips that
are included with the S4 chassis. Using the cable management clips ensures that cables are
bundled close to the chassis and that cabling is not accidentally loosened or disconnected from the
chassis during operation.
The S4 chassis ships with five cable management clips, which you install on the left front
mounting bracket of the chassis after you have installed the chassis. A completed installation
creates four separate cable management spaces, one for each module.
To install the cable management clips:
1. Slip each clip into the slots on the left mounting bracket. See Figure 3-5.

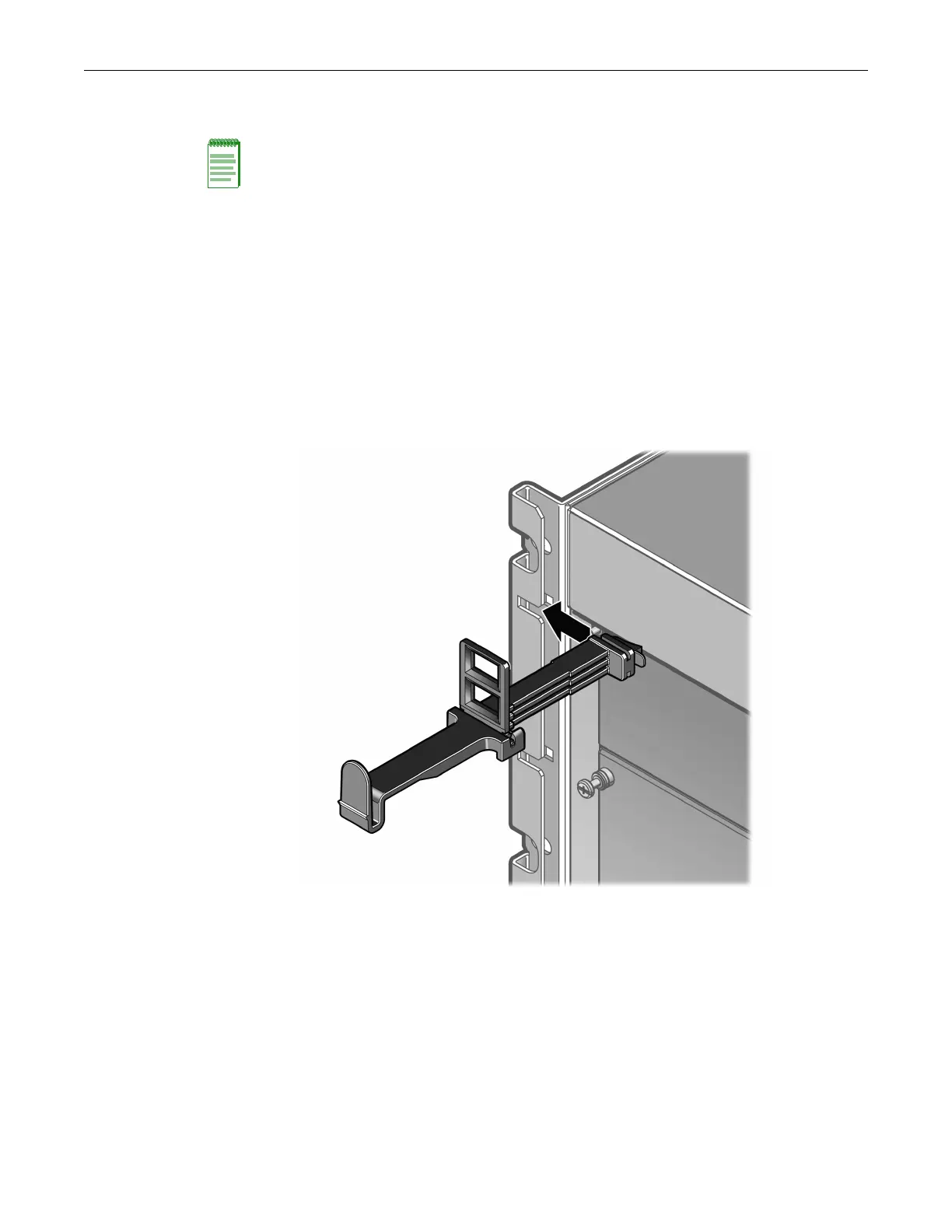

Figure 3-5 Installing a Cable Management Clip in the Left Mounting Bracket
Note: Installing the cable management clips is optional. If your installation location does not have
the space needed for installing the cable management clips (for example, in an enclosed rack), do
not install the cable management clips.
