Installing the S4 Chassis
Enterasys S-Series S4 Chassis Hardware Installation Guide 3-7
Mid-Mounting an S4 Chassis
To install the S4 chassis in a rack using the mid-mounting brackets:
1. Lift the chassis and slide it all the way into the rack until the mid-mounting brackets are
against the front of the rack posts.
2. Use 10 screws (5 per side) to secure the chassis to the rack, starting with the bottom holes and
working toward the top of the chassis. See Figure 3-4.

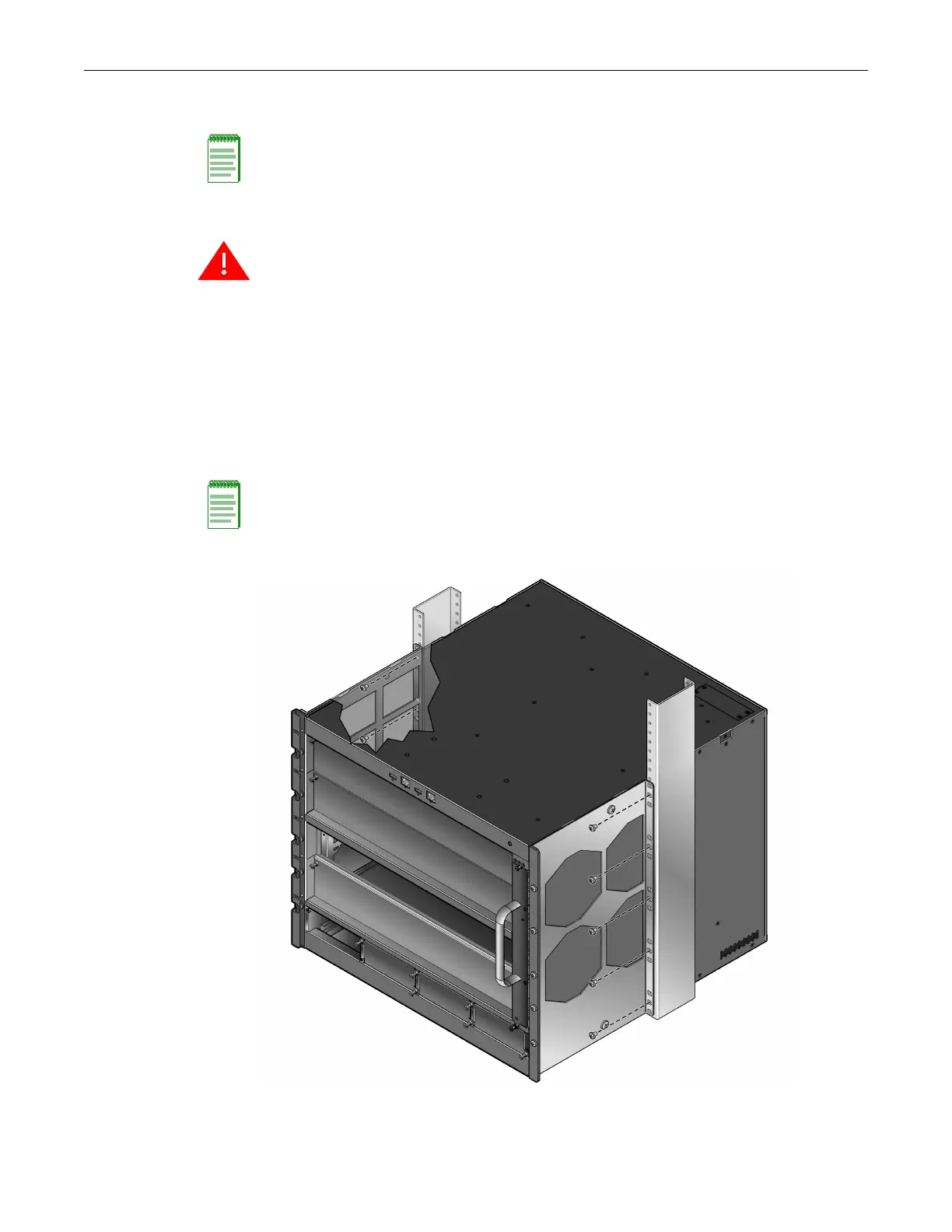

Figure 3-4 Mid-Mounting the S4 Chassis in a Rack
Note: You must install the mid-mounting brackets on the S4 chassis before installing the S4 chassis
in the rack. See “Installing the Mid-Mount Brackets” on page 3-4.
Warning: To help prevent personal injury, at least two people are required to lift the chassis into
the rack.
Advertencia: Para ayudar a prevenir alguna lesión personal , al menos dos personas son
requeridas para levantar el chasis y meterlo al rack.
Warnhinweis: Zum Schutz vor körperlichen Schäden, sollten sie mit min. zwei Personen das
Chassis in das Rack heben.
Note: Refer to Table A-7 on page A-4 for recommended torque values to use when installing the S4
chassis using standard threaded fastener machine screws and bolts.
