Cleaning the Media Feed Rollers for Tray 2 (AcuLaser CX16NF only)
Be sure to remove the duplex option before cleaning the media feed rollers for Tray 2.
1. If the duplex option is installed, remove it.
Note:
If the duplex option is not installed and the locking pins are installed at the back of Tray 2, remove the
locking pins (one in each opening on the left and right sides at the back of Tray 2).
To remove a locking pin, turn it to either the left or the right so that its grip is vertical, and then pull
out the locking pin to remove it.
2. Remove the dust cover from Tray 1 and close the tray.

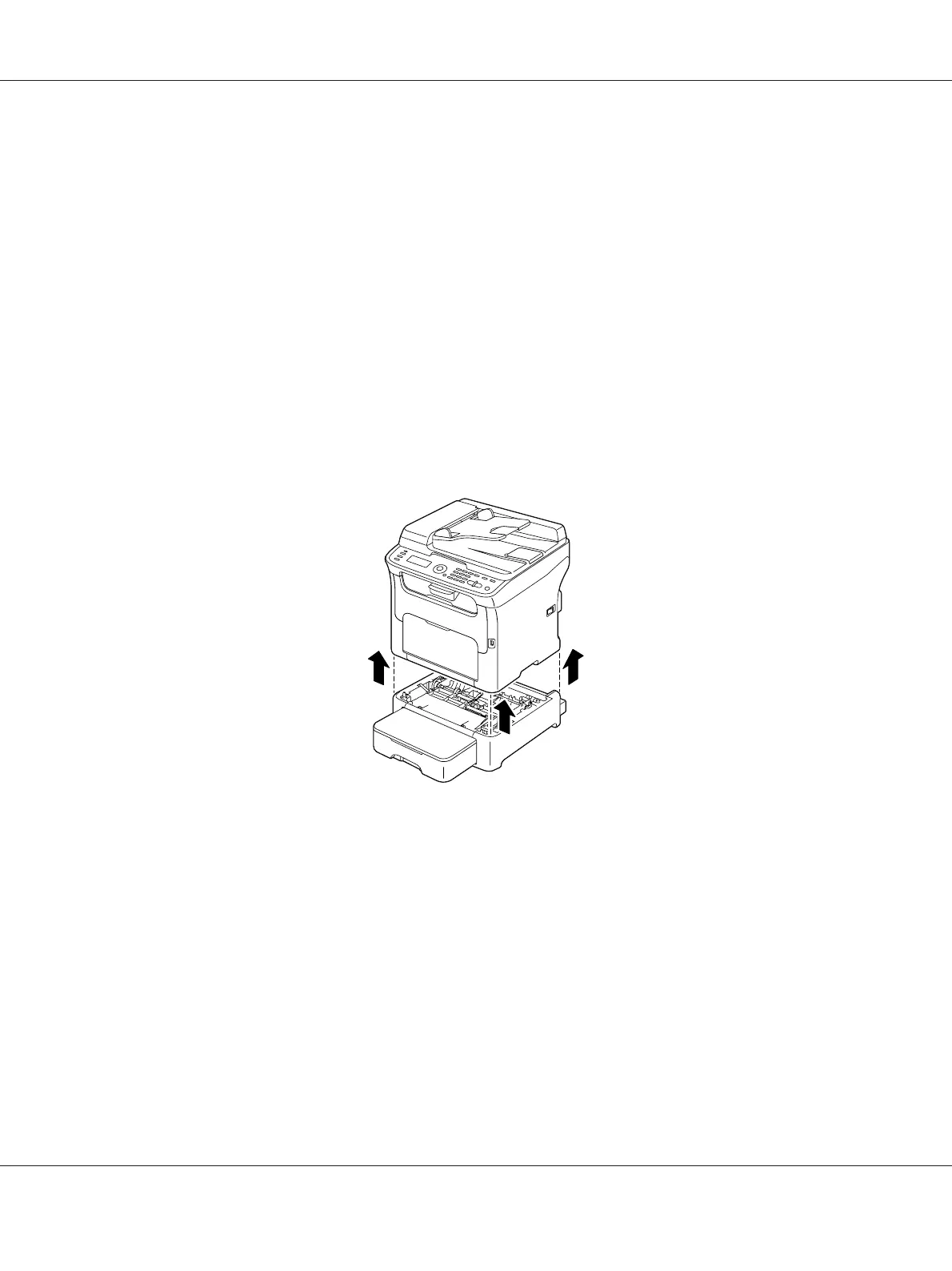

3. Lift the machine off of Tray 2 and temporarily place it on a sturdy flat surface.
AcuLaser CX16 Series Printer / Copier / Scanner User’s Guide
Maintenance 141
