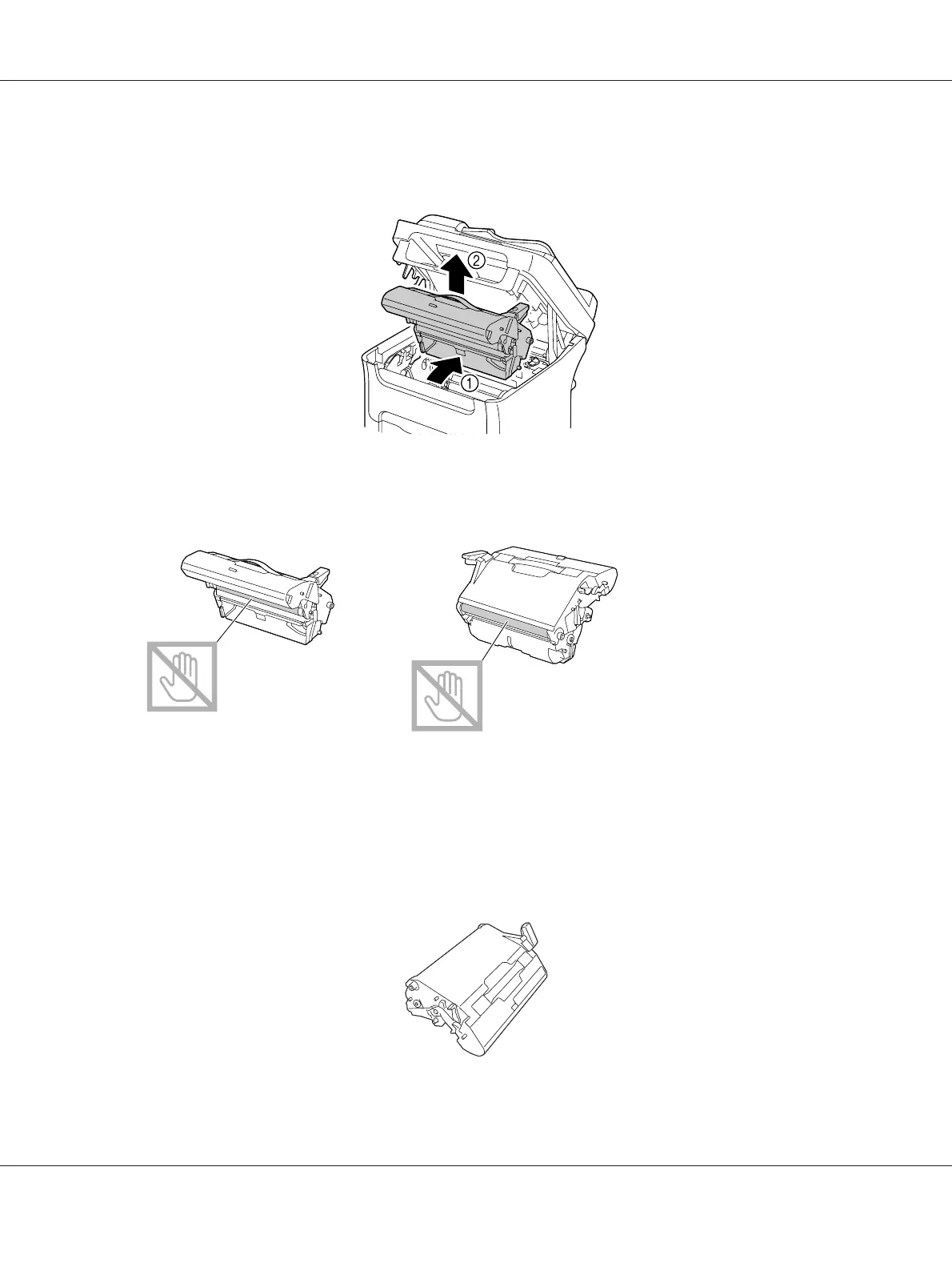

8. Grab the handle and lift it up slightly to the back, and then slowly pull the photoconductor unit out
vertically.
Note:
❏ Do not touch the PC drum and the transfer belt on the photoconductor unit.
❏ Position the removed photoconductor unit horizontally as shown in the illustration below.
Be sure to keep the photoconductor unit horizontal and place it where it will not become dirty.
Do not leave the photoconductor unit removed for more than 15 minutes, and do not place the
removed photoconductor unit in a location where it would be exposed to direct light (such as
sunlight).
AcuLaser CX16 Series Printer / Copier / Scanner User’s Guide
Maintenance 150
