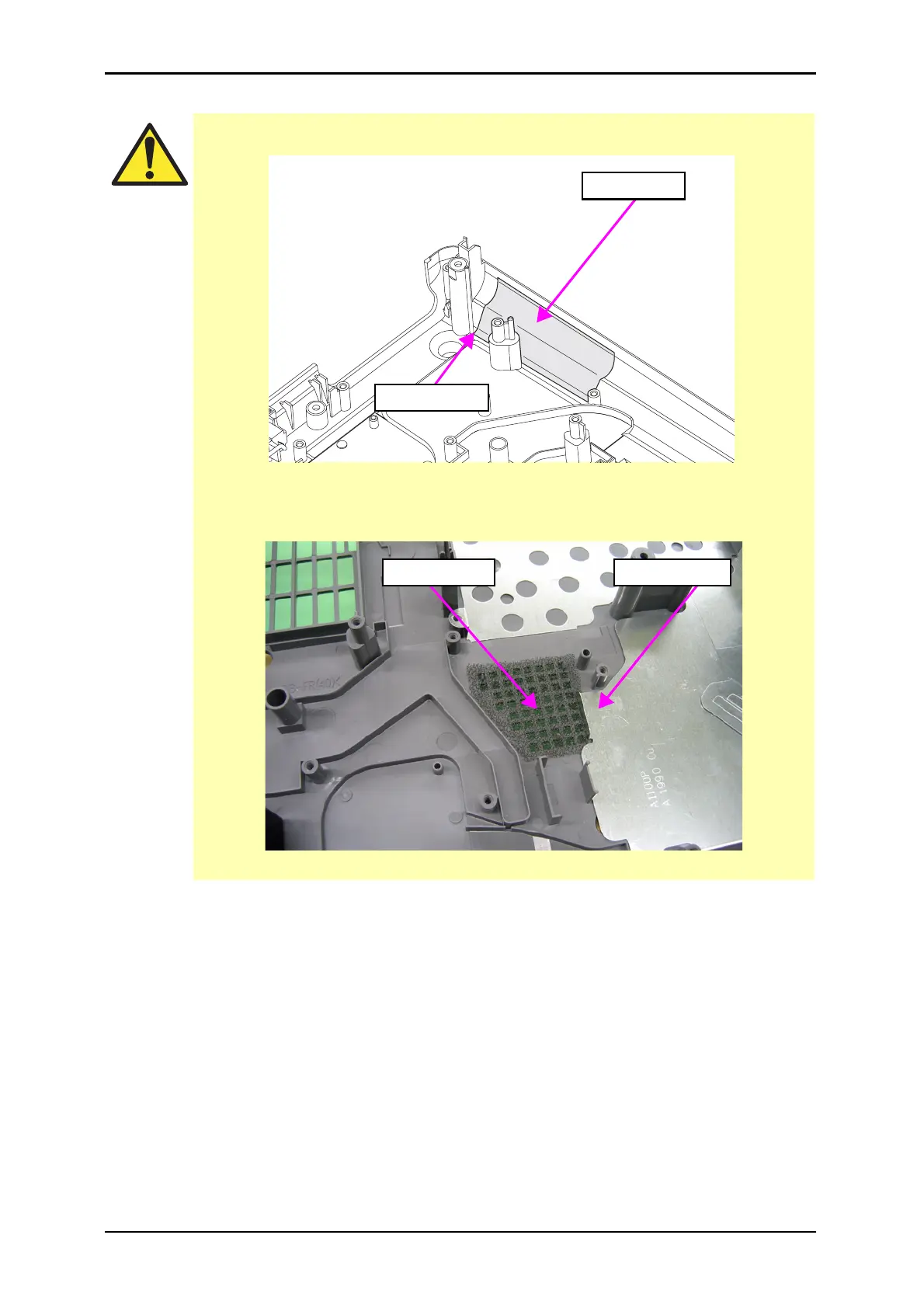

 When installing the EMI Sheet, stick it to the position described below.
Figure 4-53.
 When installing the Lamp Shield, secure the PS Air Filter under it.
Figure 4-54.
EMI Sheet
stick position
Lamp ShieldPS Air Filter
