Epson EMP-X5 Service Manual

3-21
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
3.3.9 Switch Board’s Operation Check

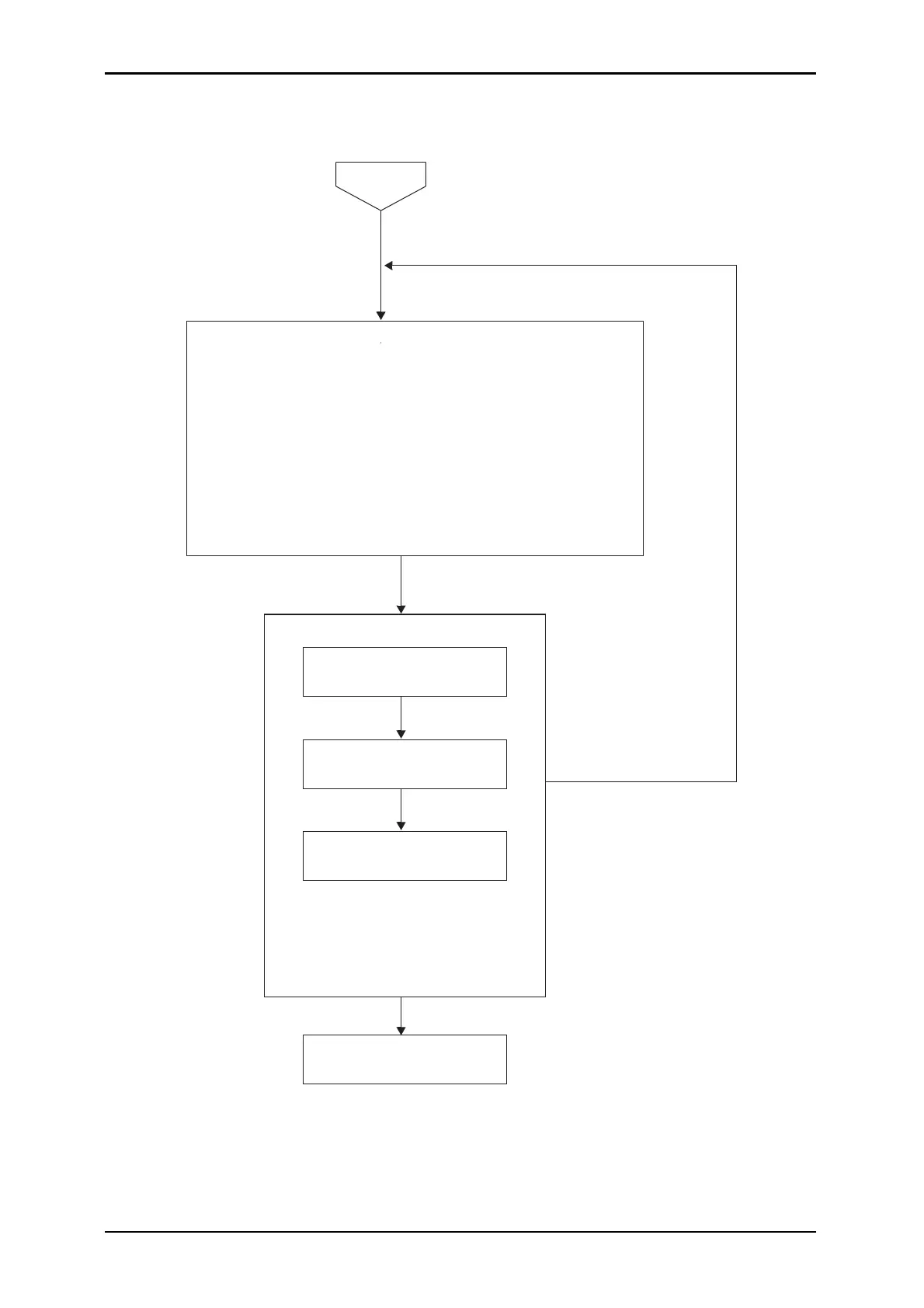

Flowchart 3-11 Switch’s Operation Check
Start
NG
2. Replace Switch Board.
1. Does pressing [Power] button turn the power on/off?
2. Does pressing [Menu] button display the menu window?
3. Does pressing [Source Search] button change input sources?
4. Does pressing [Help] button display the help window?
5. By pressing [Enter] button, is the selected item effective?
6. By pressing the keystone buttons, is the adjustment effective?
7. By pressing [ESC] button, is the current status canceled?
1. Re-connect MA board
CN702 correctly.
3. Replace Optical Engine
and MAB set.
END
NG
NG
If the buttons does not work correctly,
apply the remedy from the top (1).
If it doesnot work, go on to the next
remedy.
For more information, refer to 4.3.4.1. "Removing the Switch Board Assy." (p. 17)/4.4.2 "Removing the Optical
Engine and MAB set(1) (MA Board Assy.) /IF Case" (p. 26)/4.4.5 "Removing the Optical Engine and MAB set (2)
(Optical Engine)" (p. 39).

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
