Epson EMP-X5 Service Manual

4-25
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
4.4 Removing the Engine/Boards
4.4.1 Removing the Foot Detection Assy. (EMP-X5 only)
1).Disconnect the cable of the Foot Detection Assy. from the connector CN705 on the MA
Board.
2). Remove the two screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Foot
Detection Assy., and remove the Foot Detection Assy.

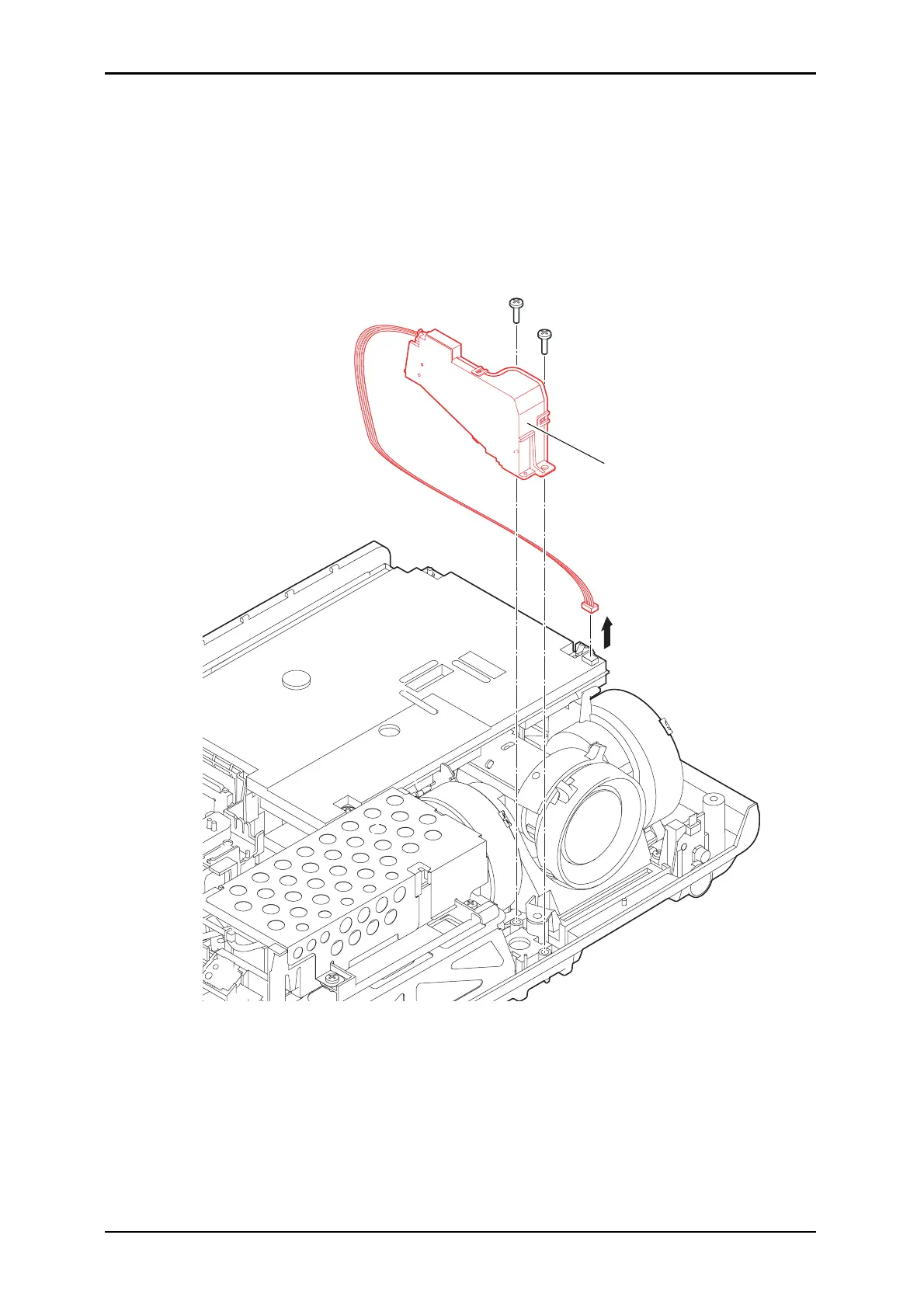

Figure 4-19.
Foot Detection Assy.

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
