Epson EMP-X5 - Removing the Lower Case

4-51
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
4.5.4 Removing the Lower Case
1. Remove the following parts from the Lower Case.
• Lower Case Seal
• Filter,RC
• Lamp Shield B
2. Remove the screw (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secures the Lamp Shield, and
remove the Lamp Shield from the Lower Case.
3. Remove the PS Air Filter.

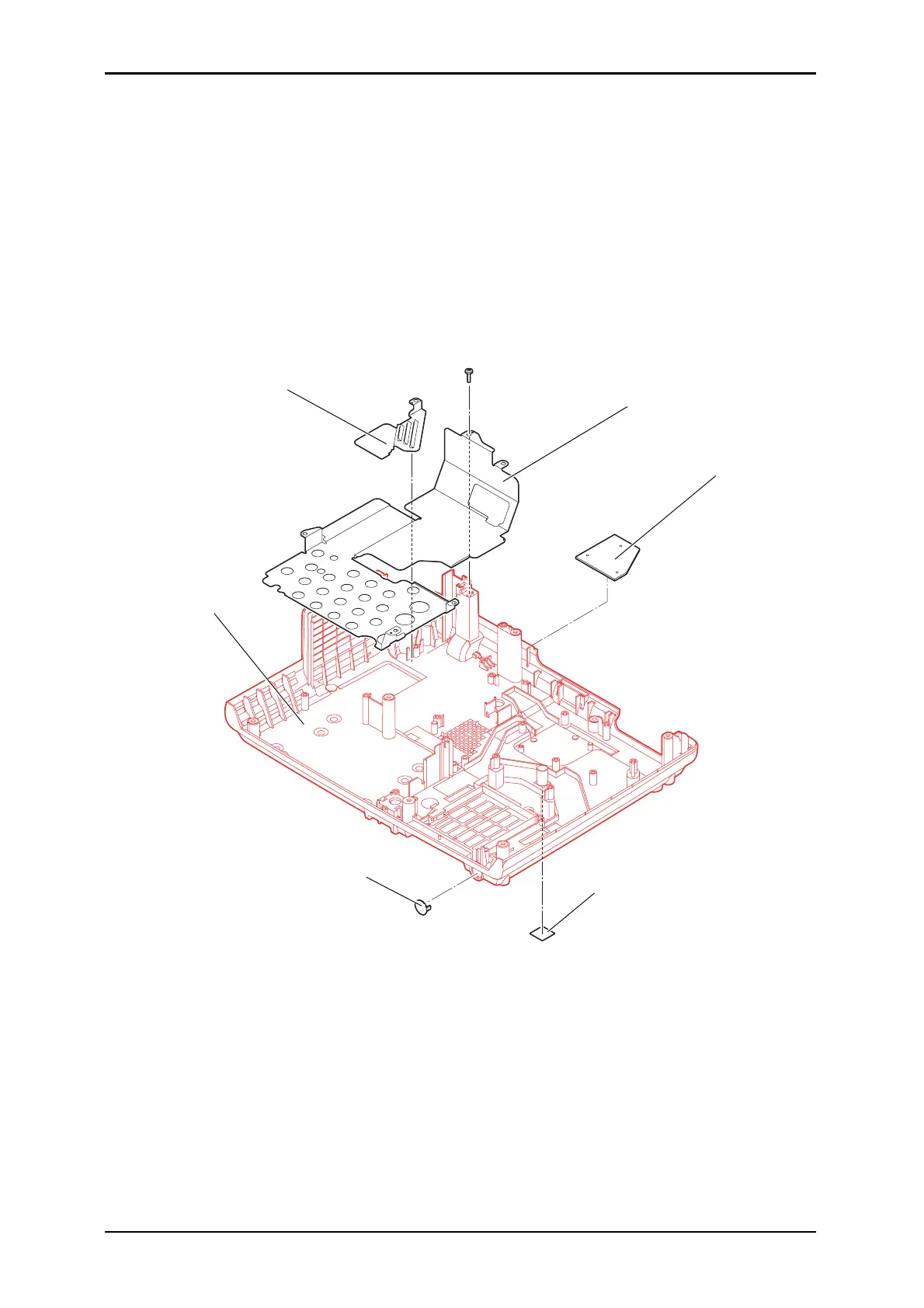

Figure 4-52.
Lamp Shield B
Lower Case
Filter,RC
PS Air Filter
Lower Case Seal
Lamp Shield
