Epson EMP-X5 Service Manual

4-26
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
4.4.2 Removing the Optical Engine and MAB set(1) (MA Board Assy.)
/IF Case

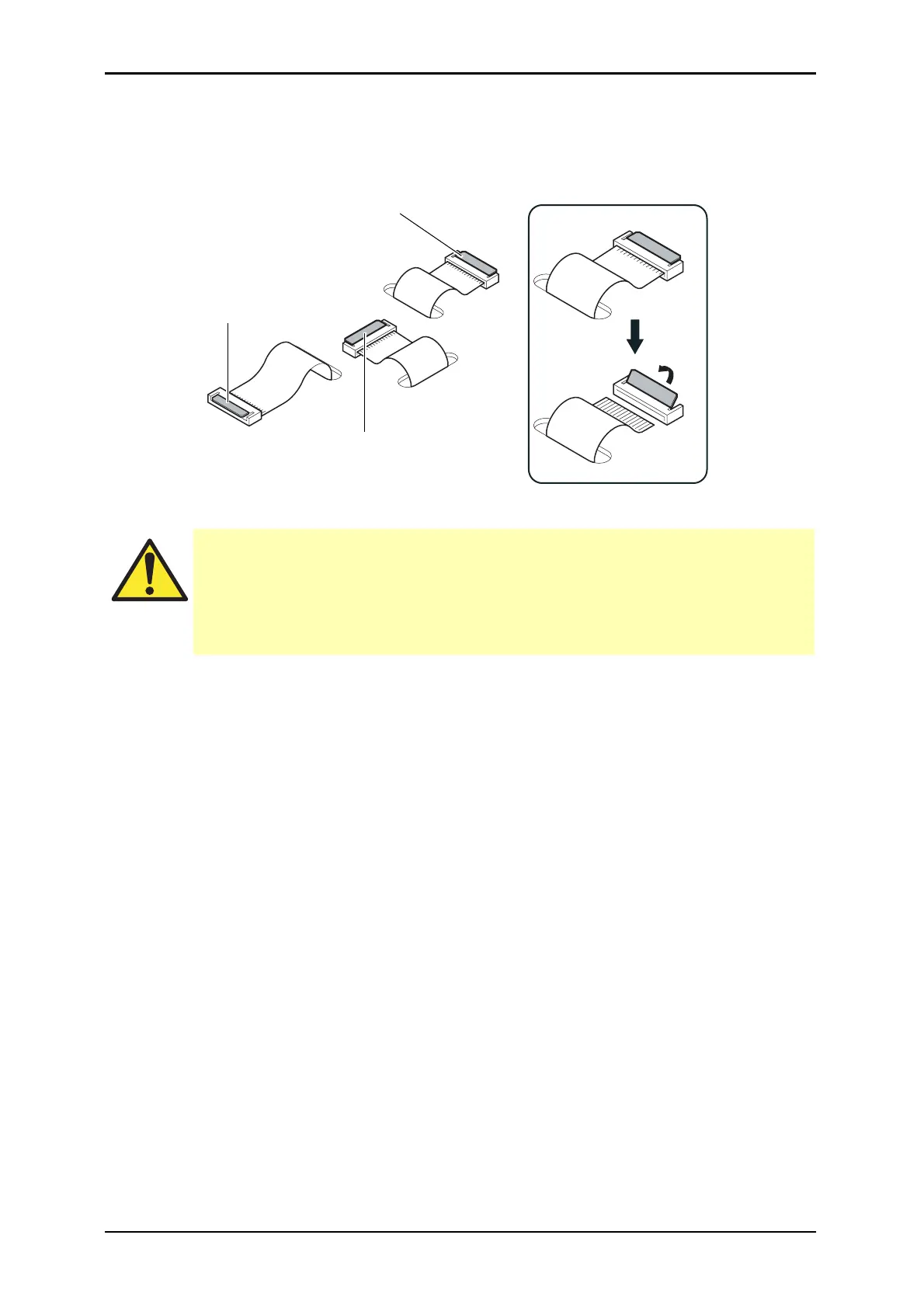

1).Unlock the connectors of the Light Valve R/G/B connection cables.
Figure 4-20.
 When connecting the R/G/B Light Valve cables, be sure to insert the R/G/B Light
Valve cables securely into the connectors to the end. If there is a loose connection
(a half-way/slant connection), it may cause short-circuiting, or malfunction, and
which may result in damage to or overheating of the ICs on the cables.
 Be sure to lock the connectors when reassembling.
Light Valve R
Light Valve G
Light Valve B
Locked
Unlocked

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
