2).Disconnect all the following cables that are connected to the MA Board from the board.
• CN1400/CN1500/CN1600: Light Valve R/G/B connection cables
• CN1700: Power Cable
• CN700: Lamp Lid Detection Switch
• CN701: SCI Cable
• (* CN702): Switch Board cable
• CN703: RC Board Assy.
• (* CN704): Shutter Switch cable
• CN801: TH Board (Lamp Thermistor)
• CN802/CN803: Intake Fan 1, Intake Fan 2
• CN804: EX Fan
• CN805: P/S Fan
• CN806: Lamp Fan
• CN807: P/S Thermistor
• CN501: Speaker (EMP-X5/EMP-S5 only)
• CN705: Foot Detection Assy. (EMP-X5 only)
*: The connectors to be disconnected before this step. If remaining connected, disconnect
them at this point.

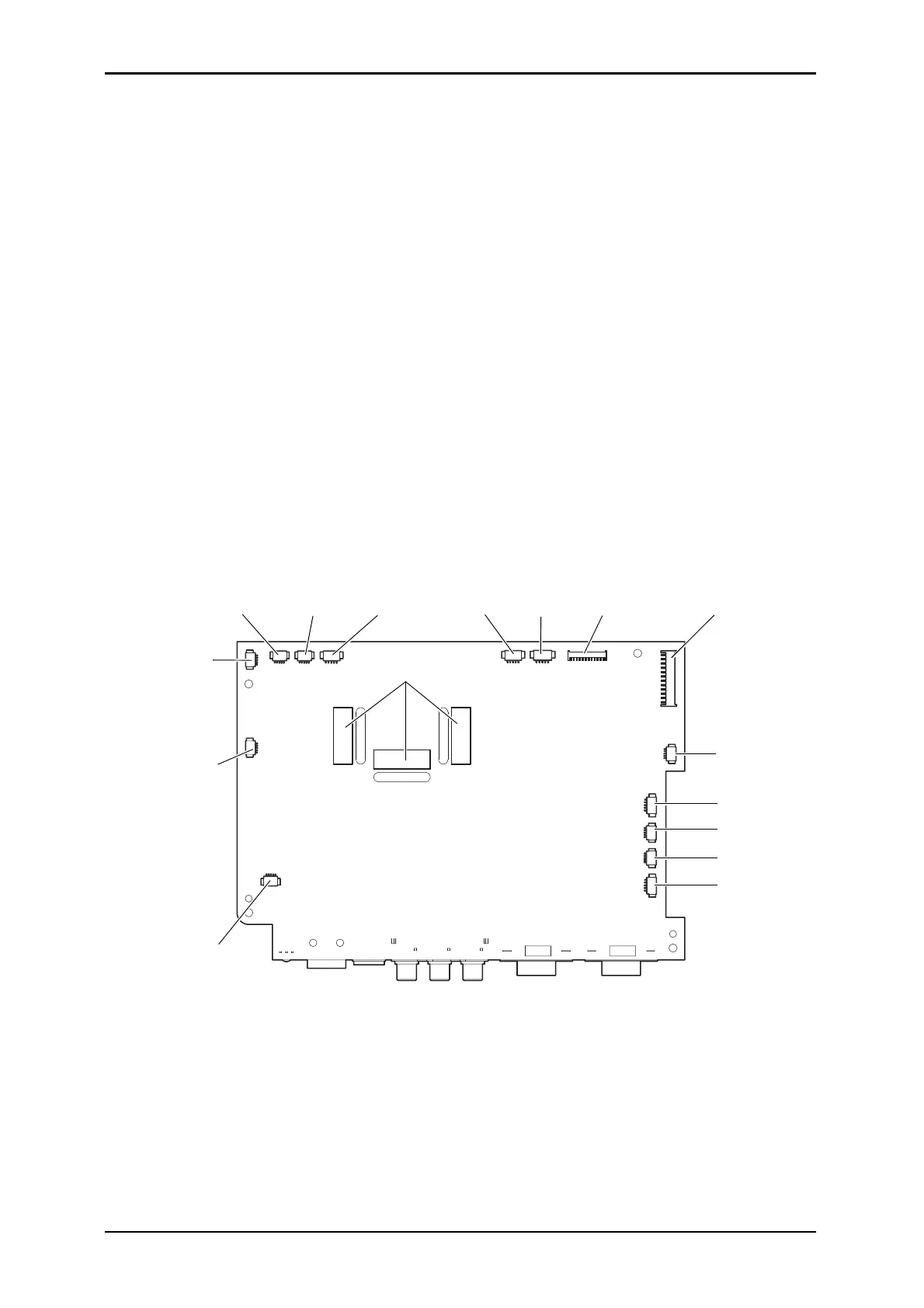

Figure 4-21.
CN1700CN802 CN803 CN703
CN806
Light Valves
CN807
CN805
CN804
CN801
CN700
CN501
(EMP-X5/S5 only)
CN1600
CN1500
CN1400
CN702CN704 CN701
CN705
(EMP-X5 only)

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
