Epson EMP-X5 Service Manual

4-28
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
 Removing the Optical Engine and MAB set (1) (MA Board Assy.) /IF Case
(EMP-822/EMP-83’s case)
1).Remove the three screws (one C.C.SCREW,3X6,F/ZN-3C, and two C.B.P-TITE
SCREW,3X10,F/ZB-3C) that secures the MA Board Assy., and lift it up.
2).Disconnect the Speaker Unit Cable from the connector CN3003, and remove the MA
Board Assy.
3).Remove the three screws (C.B.SCREW,3X6,F/ZB-3C) that secure the IF Case, and
remove the IF Case.
4).Remove the RC Filter from the IF Case.
5).Remove the IF Label from the IF Case.

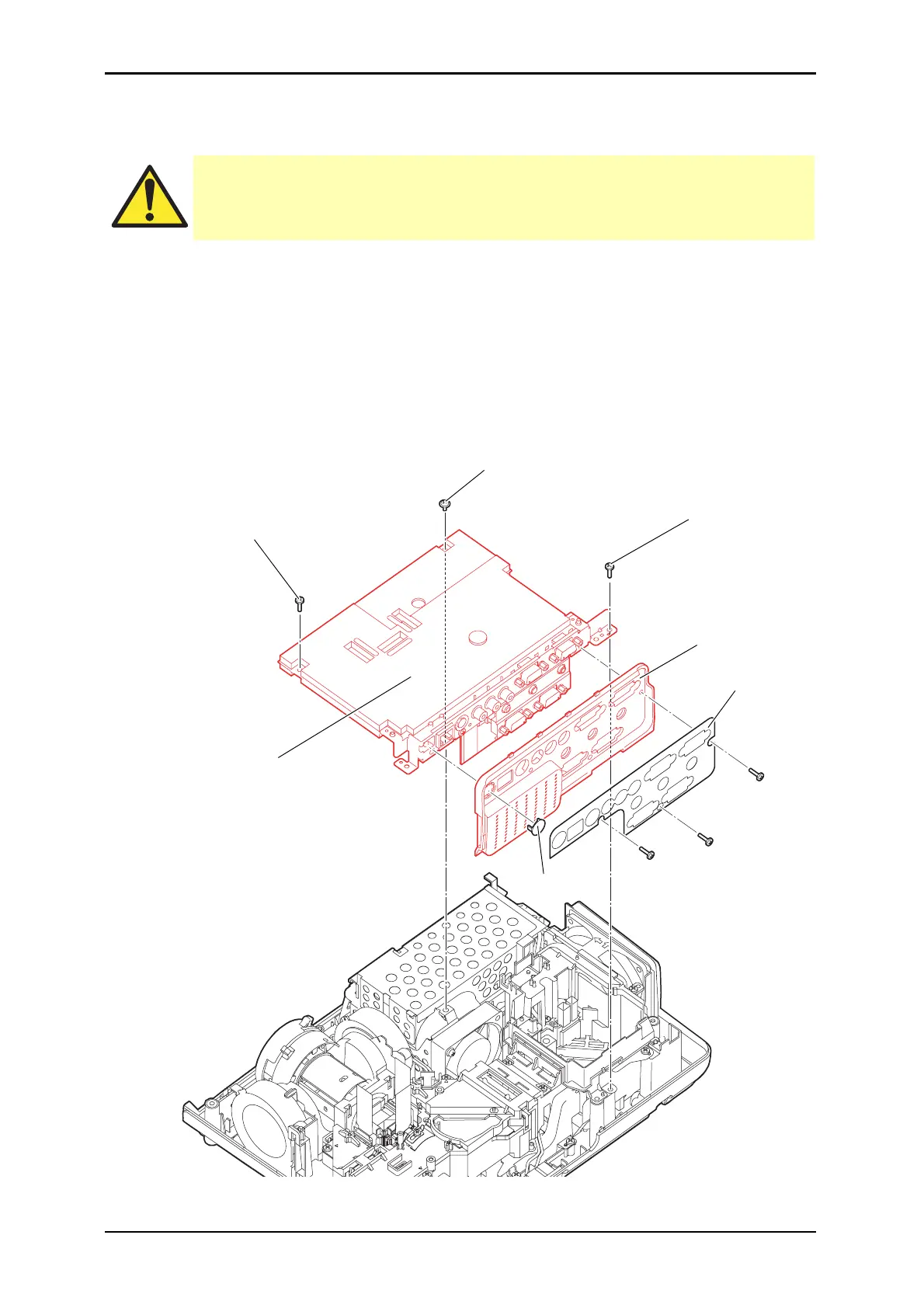

Figure 4-22.
Be careful when lifting the IF Board Assy., as the Speaker Unit Cable is
connected to connector CN3003.
MA Board Assy.
IF Case
IF Label
RC Filter
C.B.P-TITESCREW,
3X10,F/ZB-3C
C.C.SCREW,3X6,
F/ZN-3C
C.B.P-TITESCREW,
3X10,F/ZB-3C

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
