4.5.3 Removing the Lamp Fan/Speaker Unit (EMP-822/EMP83 only)
 Removing the Lamp Fan
1).Remove the two screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Lamp
Duct, and remove the Lamp Duct and the Lamp Fan from the Lower Case.
 Removing the Speaker Unit
1).Remove the three screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Speaker
Unit, and remove the Speaker Unit from the Lower Case.
2).Remove the screw (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secures the Speaker
Spring, and remove the Speaker Spring from the Speaker Unit.

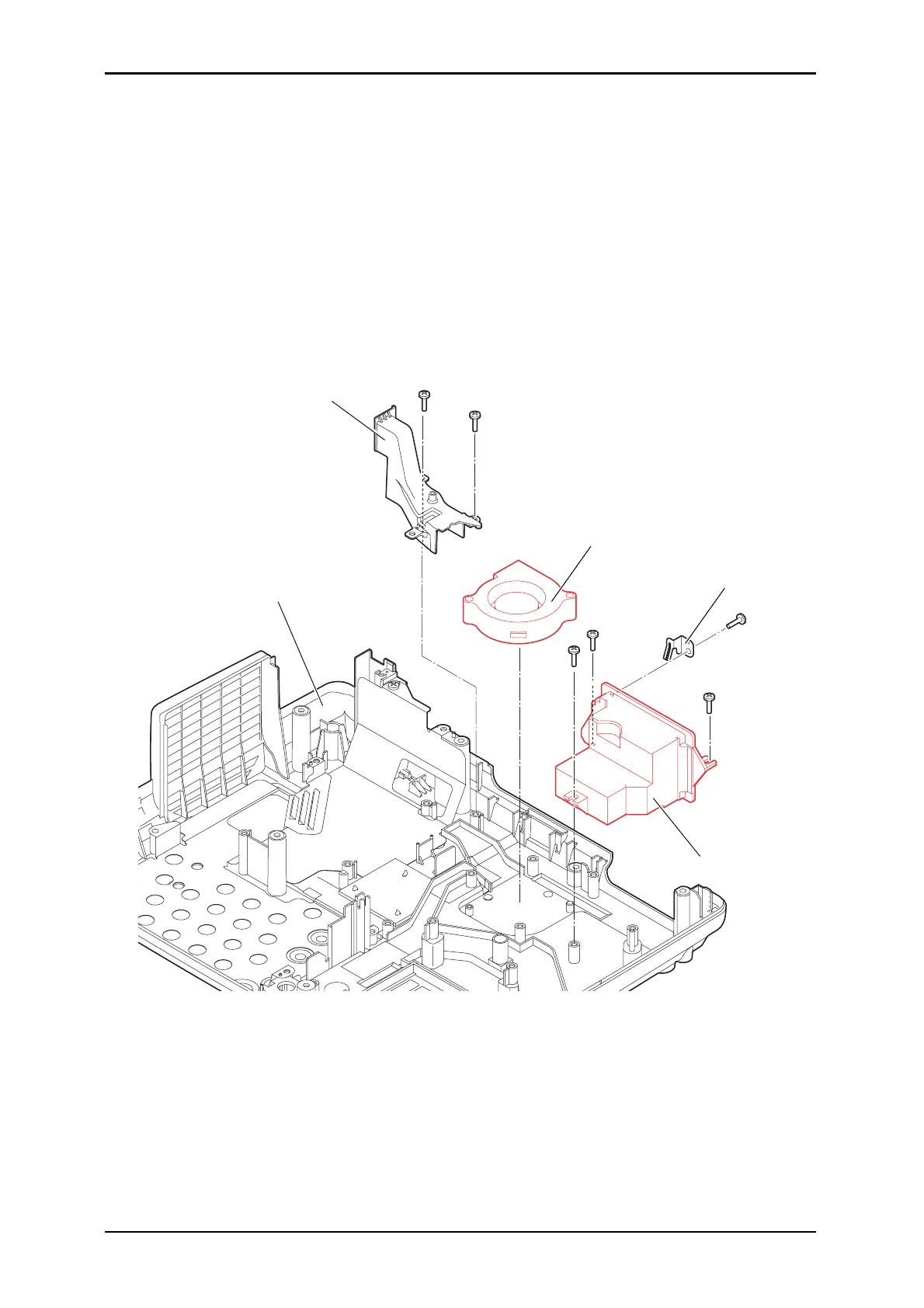

Figure 4-51.
Lower Case
Lamp Duct
Lamp Fan
Speaker Unit
Speaker Spring
