Epson EMP-X5 Service Manual

4-49
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A

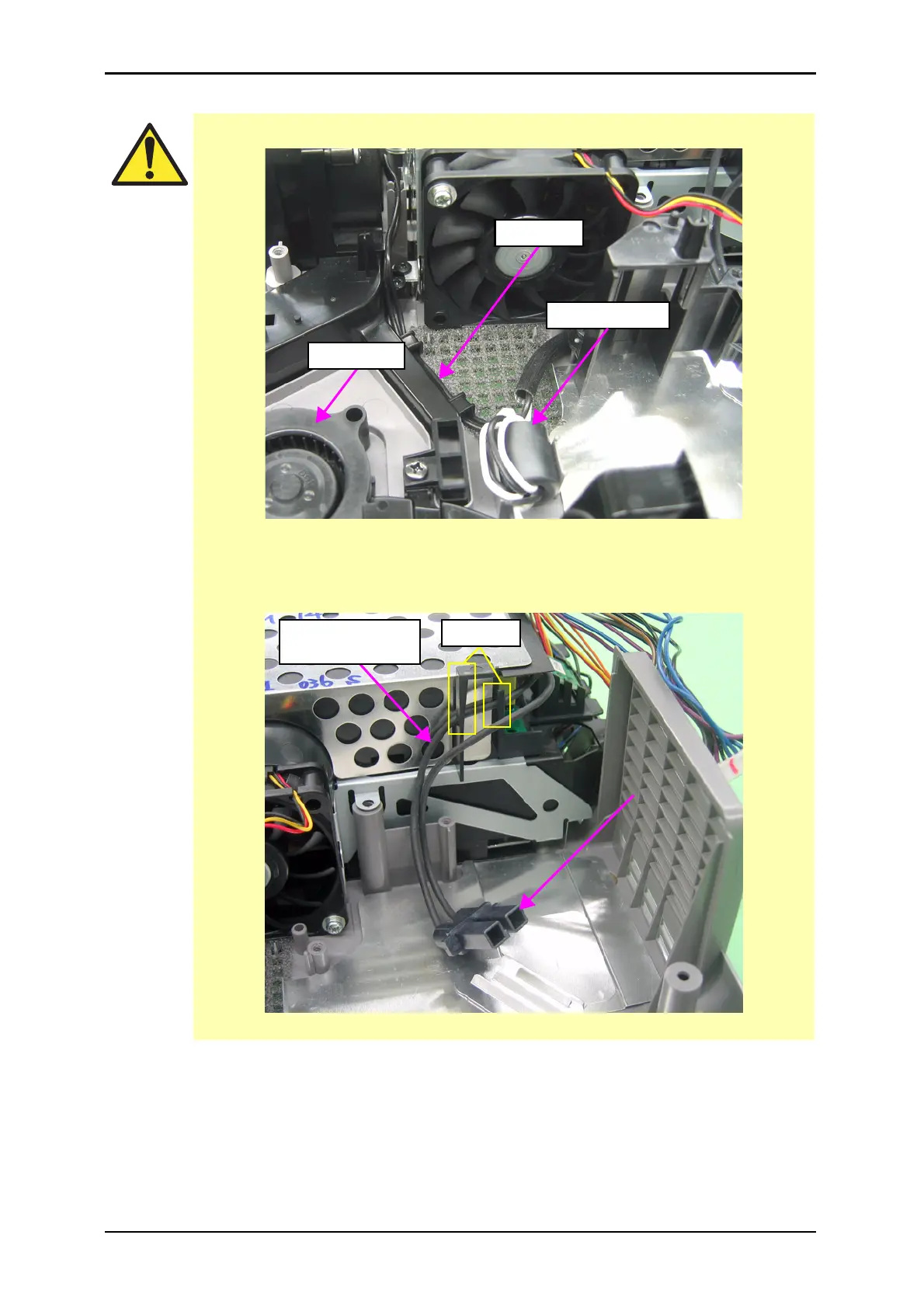

• The Ferrite Core is set so that the AC Cable is facing the Lamp Fan side.
Figure 4-49.
• The Lamp Connector Cable in the figure below are routed to the two ditches of the
PS Ballast Assy.
Figure 4-50.
Ferrite Core
AC Cable
Lamp Fan
Ditches
Lamp Connector
Cable

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
