4-43
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
4.5 Removing Other Main Parts
4.5.1 Removing the Inner EX Duct A/Intake Fan/RC Board Assy.
Removing the Inner EX Duct A
1).Remove the two screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Inner
Exhaust Duct A, and remove the Inner Exhaust Duct A.
Removing the Intake Fan
1).Remove the five screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Intake
Duct, and remove the Intake Duct together with the Intake Fans.
2).Remove the four screws (two each: C.B.P-TITE SCREW,3X12,F/ZN-3C) that secure the
Intake Fans, and remove the Intake Fans from the Intake Duct.
3).Remove the Intake Fan Sheet (one each) from the Intake Fans.
Removing the RC Board Assy.
1).Remove the RC Board Assy. from the Lower Case.
2).Remove the RC Cable from the RC Board Assy.

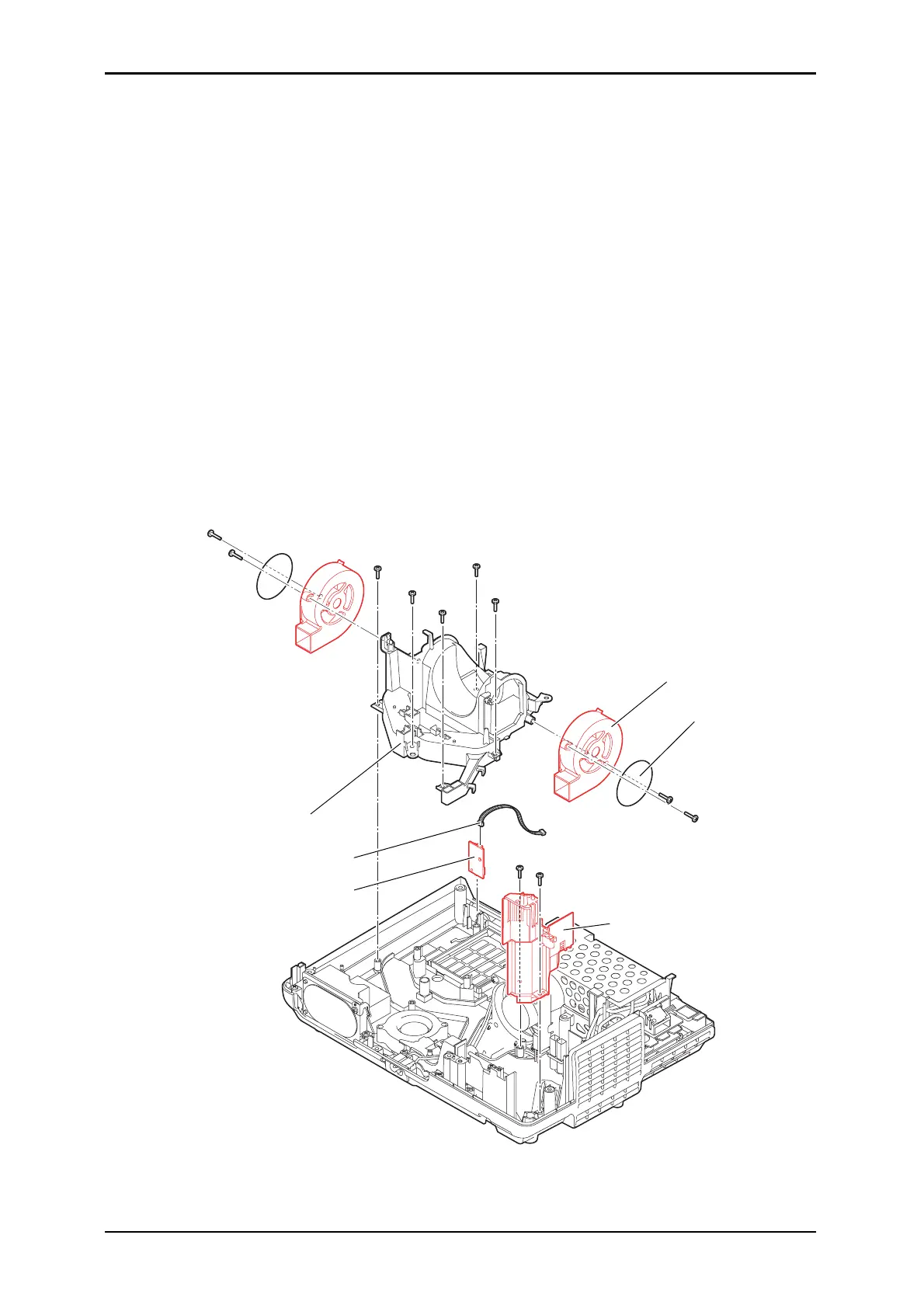

Figure 4-40.
Inner Exhaust Duct A
RC Board Assy.
RC Cable
Intake Fan
Intake Fan Sheet
Intake Duct
