4.4.4 Removing the EX Fan/Inner EX Duct B
1. Remove the three screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the Inner EX
Duct B, and remove the Inner EX Duct B together with the EX Fan.
2. Remove the two screws (C.B.P-TITE SCREW,3X10,F/ZB-3C) that secure the EX Fan, and
remove the EX Fan from the Inner EX Duct B.

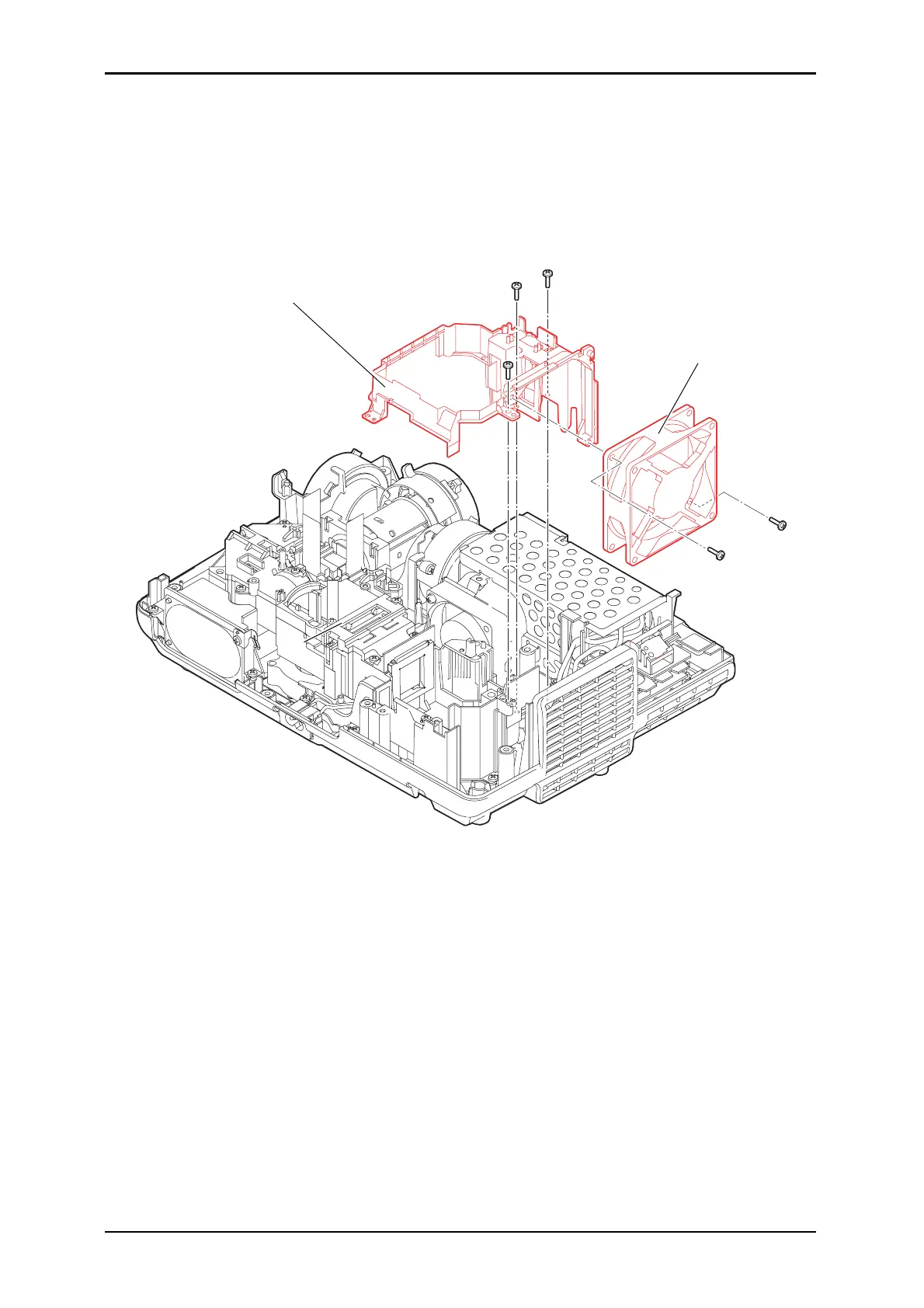

Figure 4-34.
EX Fan
Inner EX Duct B
