Epson EMP-X5 Service Manual

4-38
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A

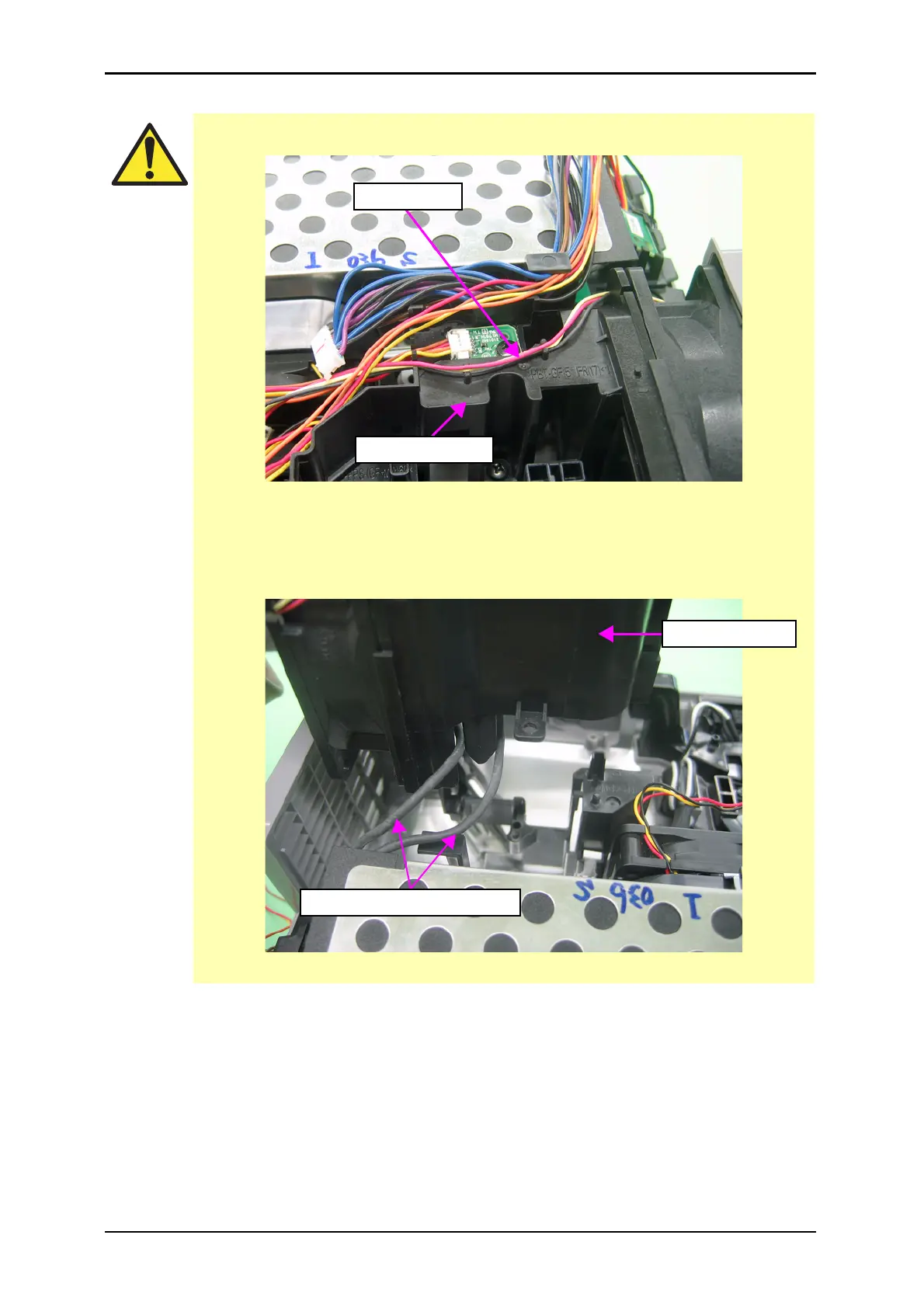

 Route the cable of the Ex Fan to the ditch of the Inner EX Duct B.
Figure 4-35.
 When installing the Inner EX Duct B, split the Lamp Connector Cable into
two, and route the cables to the protrusion of Inner EX Duct B as shown in the
figure below.
Figure 4-36.
Ex Fan Cable
Inner EX Duct B
Inner EX Duct B
Lamp Connector Cable
