Epson EMP-X5 Service Manual

4-17
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A
4.3.4.1. Removing the Switch Board Assy.
1. Remove the four screw (C.C.P-TITE SCREW,3X8,F/ZN-3C) that secure the Switch Board
Assy., and remove the Switch Board Assy. from the Upper Case Unit.
2. Remove the following parts from the Upper Case Unit.
• Button (the color differs according to the model.)
• LED Lens
• Lens Shading Sheet
• LED Shading Cushion
3. Remove the SW Shading Sheet from the Switch Board Assy.

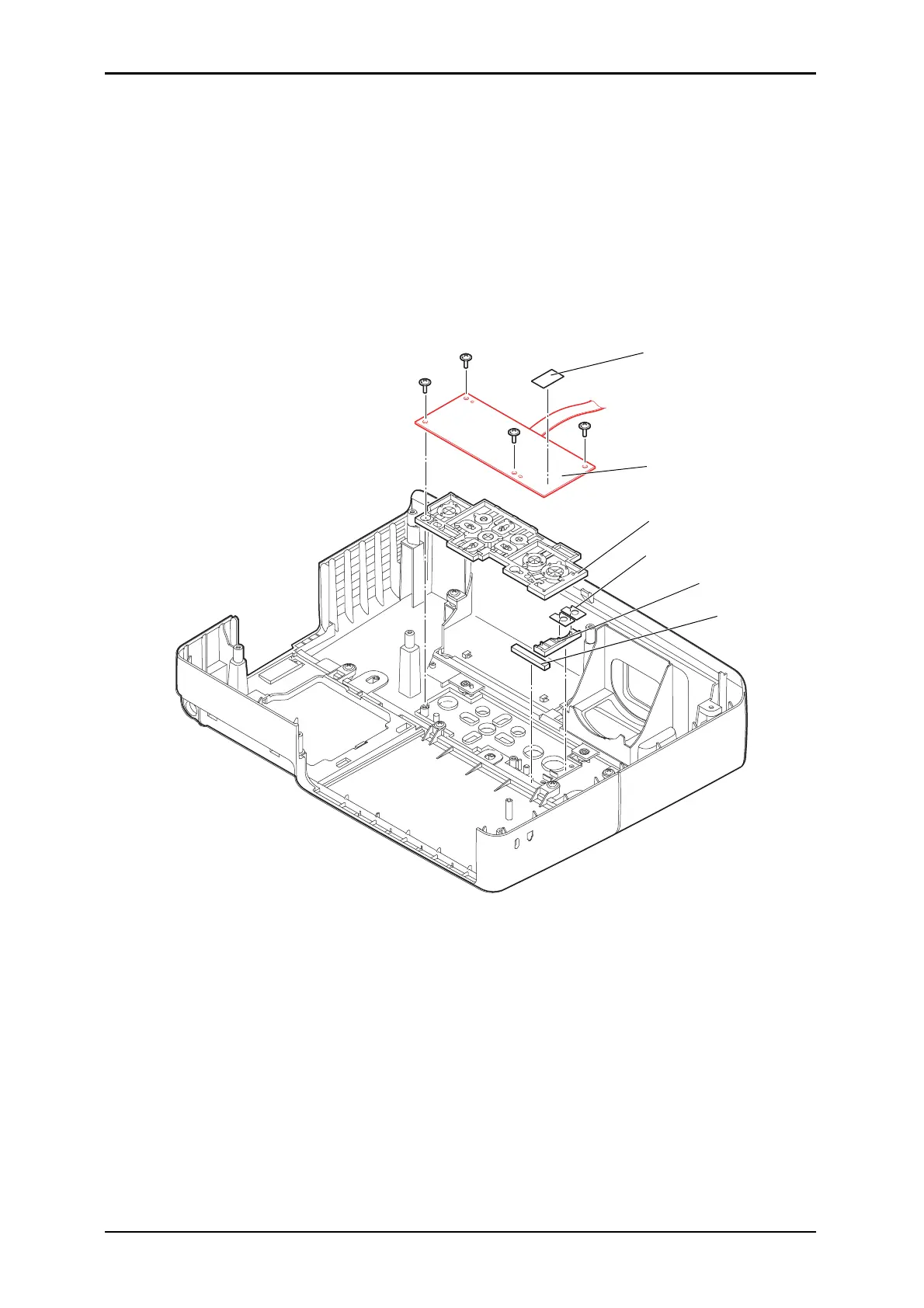

Figure 4-10.
Switch Board Assy.
Button
LED Lens
SW Shading Sheet
LED Shading
Cushion
Lens Shading Sheet

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
