Epson FF-680W User Manual

Back

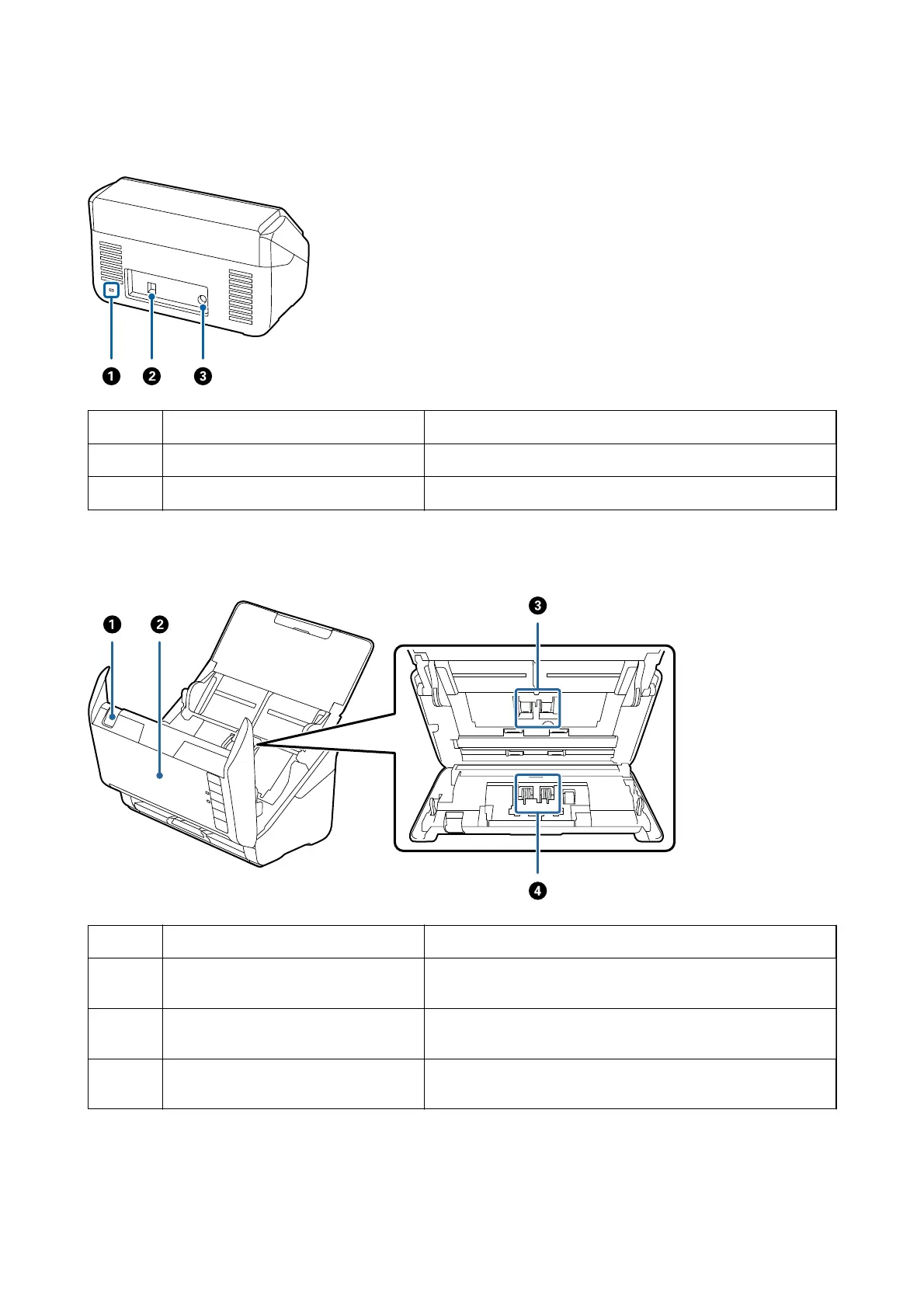

A
Security slot Inserts a security lock for theft prevention.
B
USB port Connects a USB cable.
C
DC inlet Connects the AC adapter.
Inside
A
Cover open lever Pull the cover open lever and open the scanner cover.
B
Scanner cover Pull the cover open lever and open the scanner cover when
cleaning inside of the scanner and removing jammed paper.
C
Pickup roller Feeds originals. This needs to be replaced when the number of
scans exceeds the service number of papers.
D
Separation roller Feeds originals separately one by one. This needs to be replaced
when the number of scans exceeds the service number of papers.
Related Information
&
“Cleaning Inside the Scanner” on page 102
&
“Replacing the Roller Assembly Kit” on page 107
User's Guide
Scanner Basics
11

Epson FF-680W Specifications

General

Type	Document Scanner
Optical Resolution	600 dpi
ADF Capacity	100 sheets
Duplex Scanning	Yes
Daily Duty Cycle	4, 000 sheets
Connectivity	Wi-Fi
Color Depth	24-bit
