Using Continuous Paper
4.

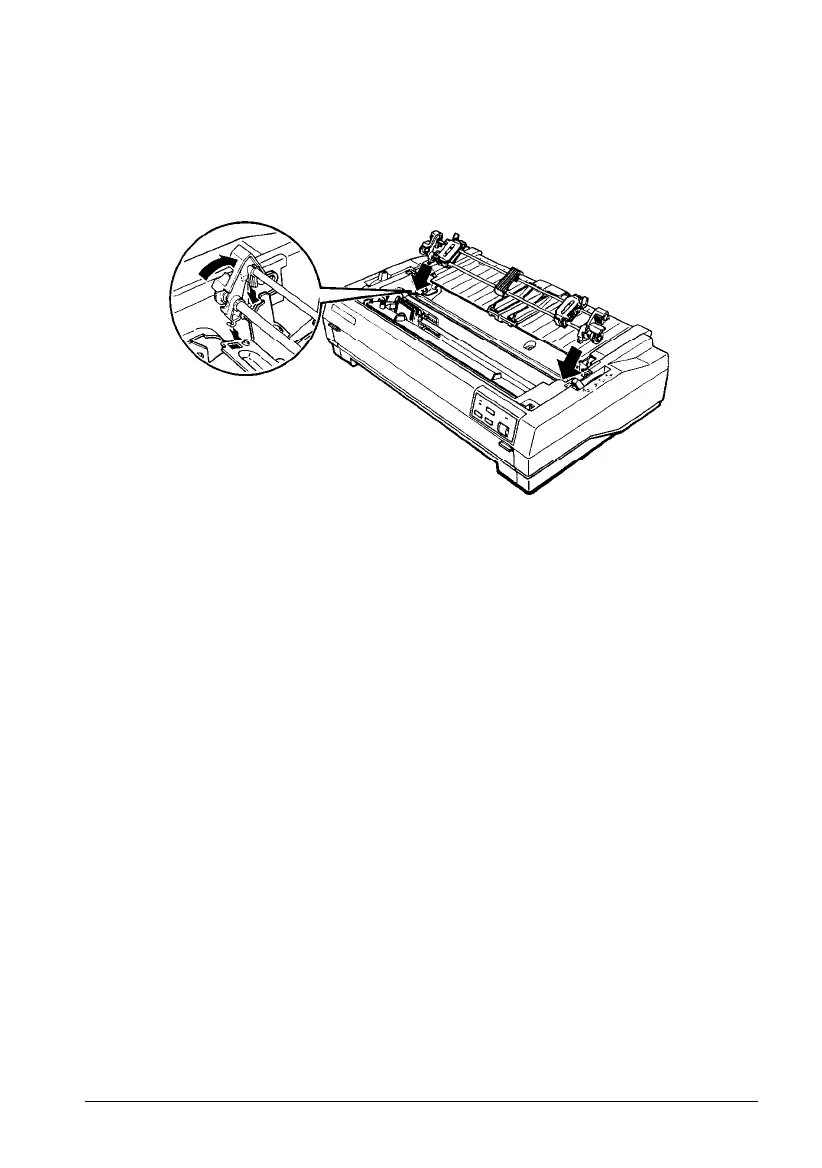

An arrow on each side of the mounting slots shows you where to
install the tractor. Lower it straight down into the slots as shown.
Then push it back in the direction of the arrow in the illustration.
See page 2-16 for instructions on loading paper with the pull tractor.
To remove the tractor unit, press the tractor’s lock tabs, tilt the unit
toward you, and lift it off the printer. Then replace the paper-tension
unit.
Paper Handling 2-9
