Assembling the Printer
Installing the ribbon cartridge
1.
Make sure the printer is not plugged into an electrical outlet.
2.

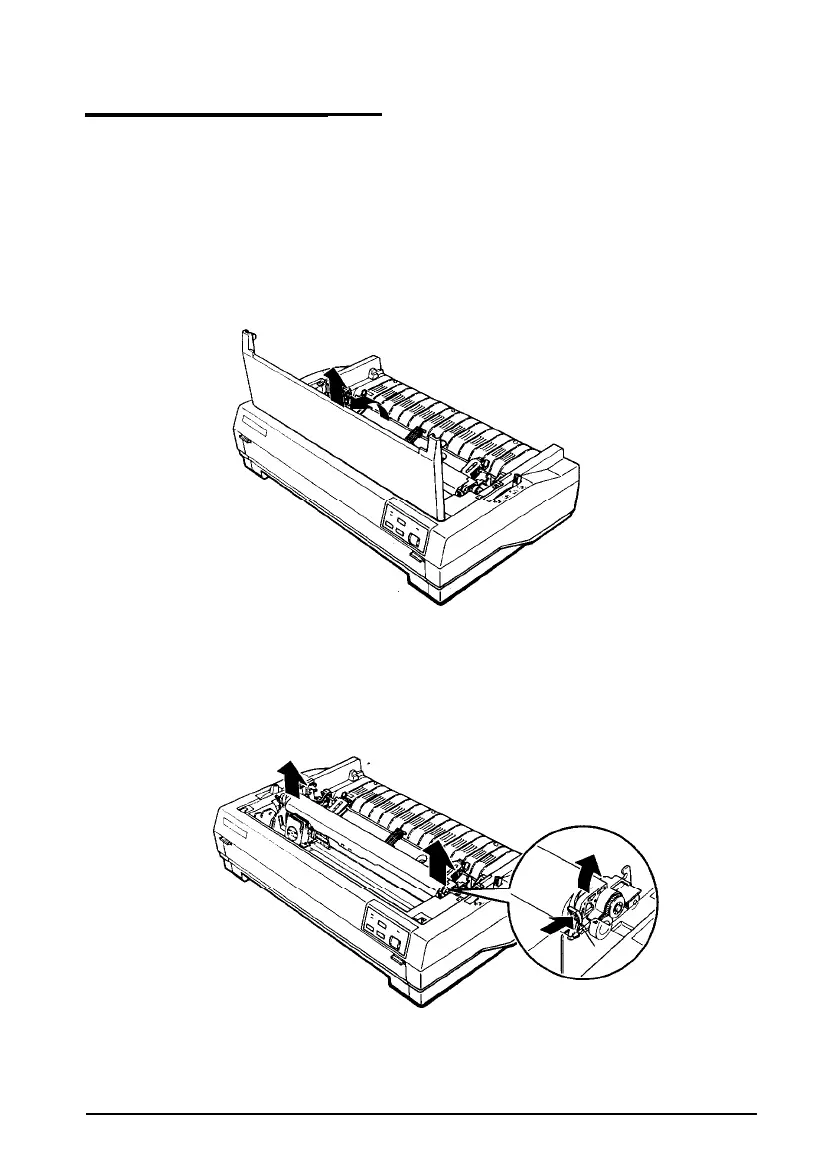

Lift the printer cover by its back edge and then pull it straight up
and off.
3.
Grasp the tabs on each side of the paper-tension unit as shown
below. Press up firmly with your thumbs to lift the front of the
unit; then pull the paper-tension unit up and off the printer.
4.
Slide the print head to the middle of the printer.
1-6
Setting Up the Printer
