Cut-Sheet Feeders
3.
Make sure the paper-release lever is in the single-sheet position.
4.

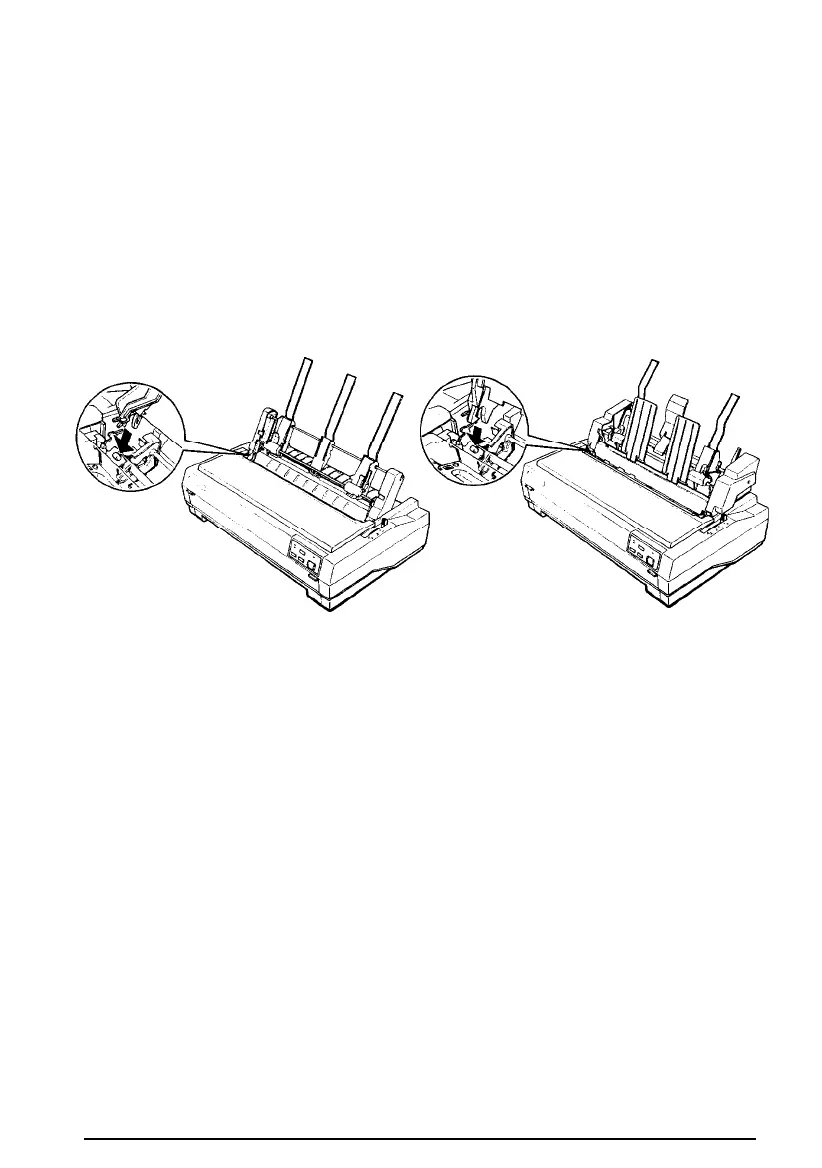

Hold the cut-sheet feeder in both hands. Press down on the latch
levers and fit the notches in the cut-sheet feeder over the
mounting posts on the printer. Release the latch levers to lock
the cut-sheet feeder in place.
5.
Replace the printer cover by first inserting the front tabs into the
slots on the printer, then lowering it into place.
You are now ready to load paper with your cut-sheet feeder.
To remove a cut-sheet feeder, reverse the steps above.
Loading paper with the single-bin cut-sheet feeder
1.
Make sure the paper guide is removed.
Using the Printer Options
4-3
