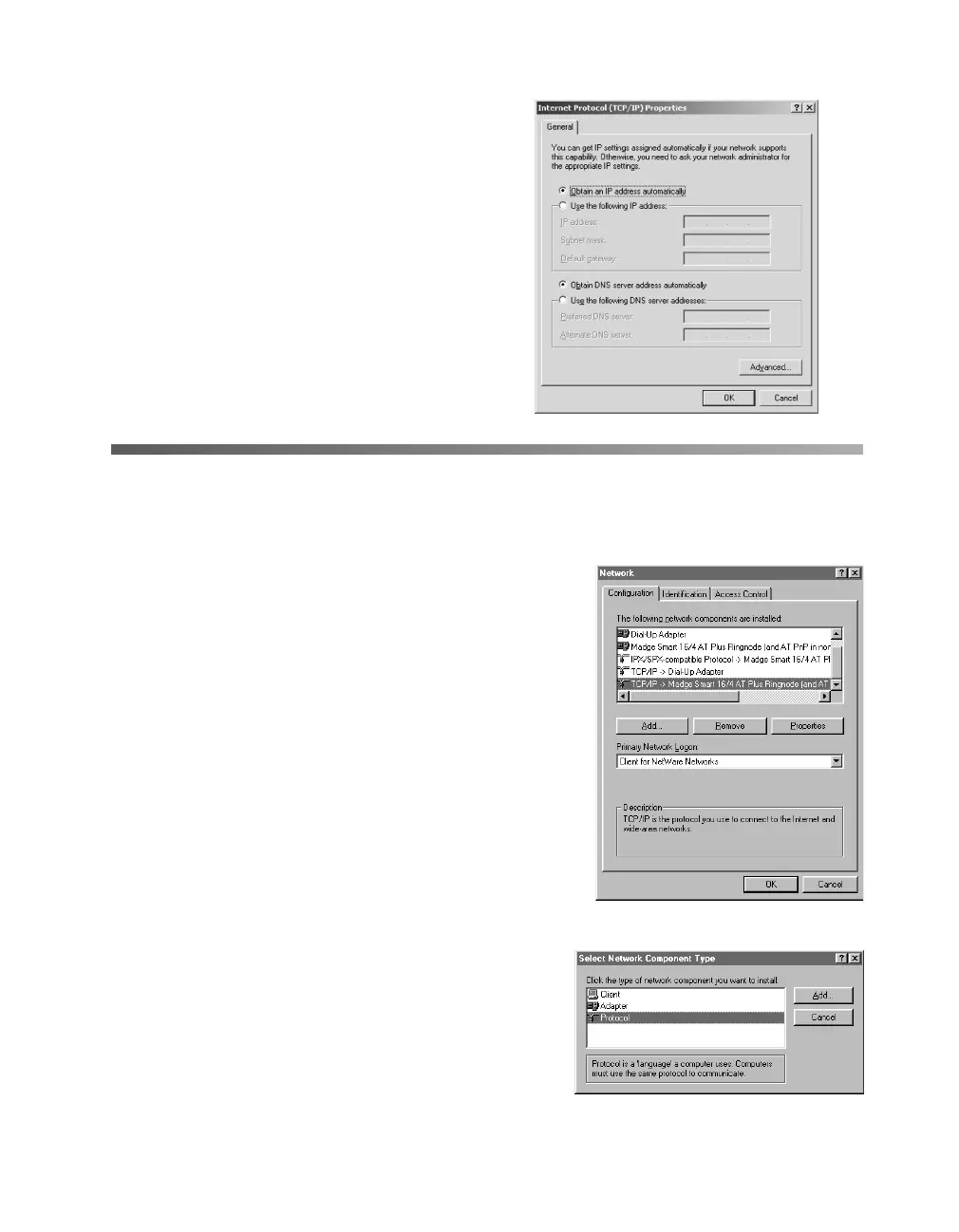

Installing the TCP/IP Protocol
123
4. Make sure that
Obtain an IP address
automatically
is selected and click
OK
.
(If you need to manually assign an IP
address, contact your Network
Administrator.)
5. Click
OK
to close the Local Area
Connection Properties screen.
6. Click
Close
to close the Local Area
Connection screen.
Installing the TCP/IP Protocol on
Windows 98 and Windows 95
1. Open the Control Panel and double-click the
Network
icon. If necessary, click the
Configuration
tab to display the window on
the right.
2. Check that
TCP/IP
appears in the list of
installed network components.
If it appears in the list, go to Assigning an IP
Address for Windows 95 and Windows 98
(First Release) on page 124.
If you dont see
TCP/IP
in the list, continue
with the next step.
3. Click the
Add
button.
4. When you see the screen on the right, select
Protocol
from the list and click the
Add
button. The Select Network Protocol
window appears.

Table of Contents

Other manuals for Epson GT-30000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson GT-30000 and is the answer not in the manual?

Epson GT-30000 Specifications

Power IconPower
voltageAC 100V-120V, 220V-240V
frequency50-60Hz
power consumption operating without ADF65W
power consumption operating with ADF90W
power consumption standby without optional unit12W
Operating Environment IconOperating Environment
temperature operating41ºF to 95ºF (5ºC to 35ºC)
humidity operating10% to 80% (no condensation)
humidity storage10% to 85% (no condensation)
Scanning Specifications IconScanning Specifications
optical resolution600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution9600 x 9600 dpi with interpolation
effective pixels7020 x 10200 pixels (600 dpi)
color depth internal36 bits per pixel
color depth external24 bits per pixel (selectable)
grayscale depth internal/external12 bits per pixel
grayscale depth external8 bits per pixel
scanning speed at 1600 dpi, draft mode, color0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art0.39 msec/line (approx.)
Weight and Dimensions IconWeight and Dimensions
maximum read area11.7" x 17.0" (297mm x 432mm)
width25.9" (658mm)
depth19.2" (488mm)
height10.0" (254mm)
weight66 lb (37.5 kg approx.)
