Epson GT-30000 User Manual

52
Installing the Software
Installing Presto! PageManager
Follow these steps to install Presto! PageManager:

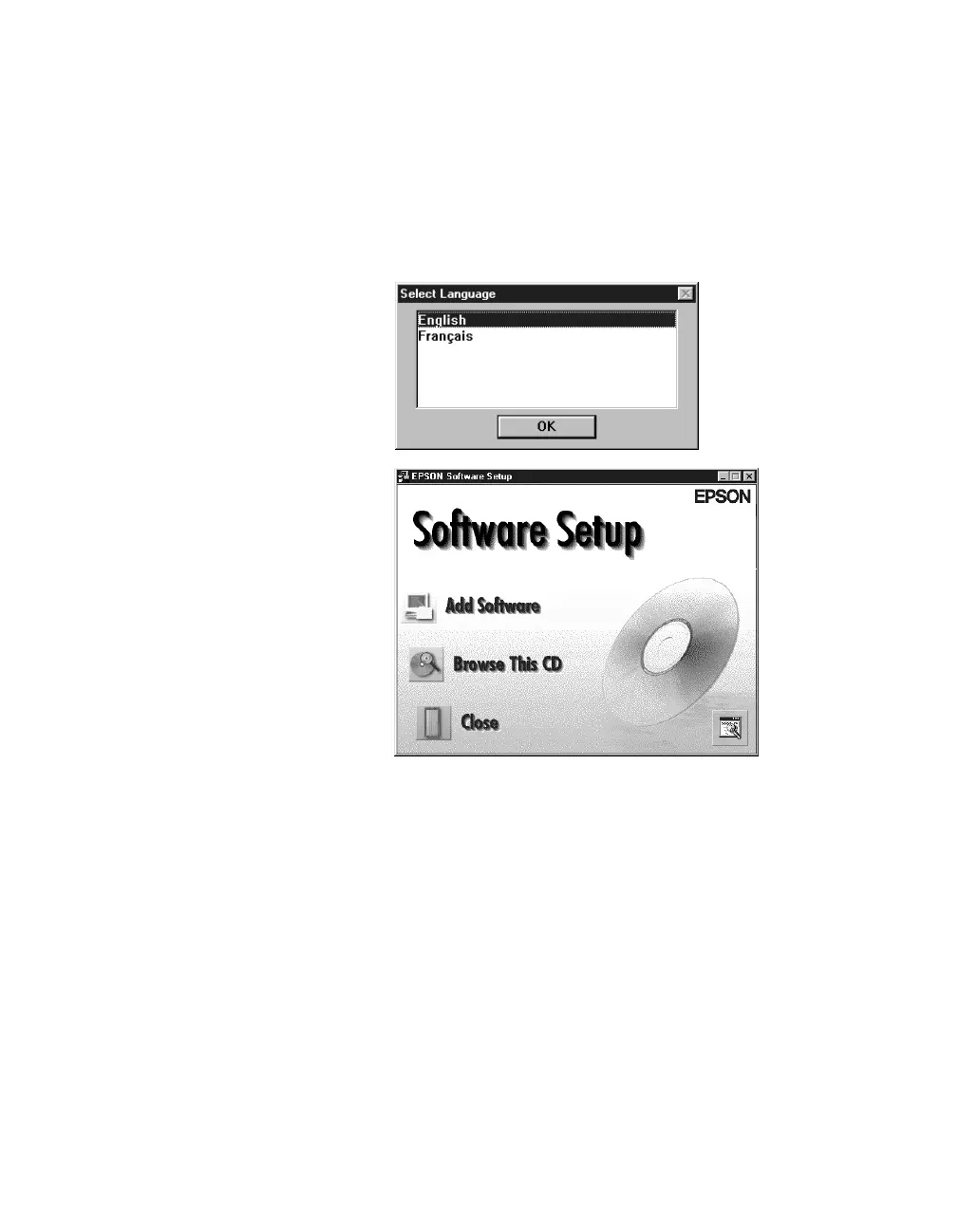

1. If necessary, insert your scanner software CD-ROM in the drive. If you don’t see
the Select Language screen, double-click
My Computer
on your desktop, then
double-click the
Epson
CD-ROM icon.
2. Make sure
English
is
selected and click
OK
. The
Software Setup window
appears.
3. Click
Browse This CD
.
4. To install Presto!
PageManager, double-click
the
pagemgr
folder, then
double-click the
English
folder.
5. Double-click the
Setup.exe
icon, then
follow the instructions on
the screen.
6. When installation is
complete, click
OK
, then restart your computer.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
