Epson GT-30000 User Manual

How to Scan
57

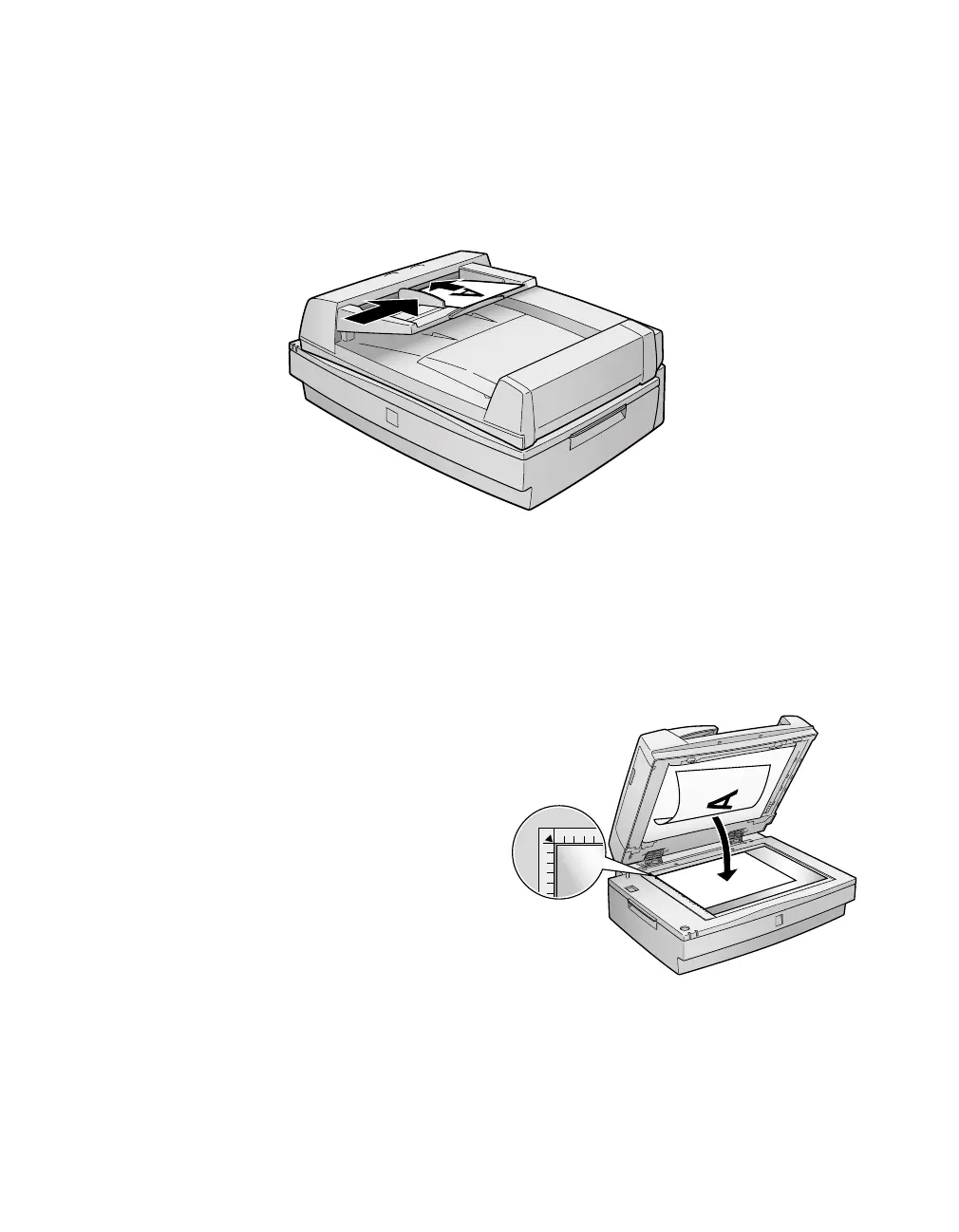

To load documents into the ADF, follow these steps:
1. Slide the edge guide all the way out.
2. Insert the document stack face up into the ADF until it meets resistance. Then
move the right edge guide so it is flush with the right edge of your document.
3. Continue with the scanning procedure on page 58.
Placing a Single Original Document
Follow these steps to position a single page:
1. Raise the ADF and place your
document face down on the
document table.
2. Position the document so the
horizontal and vertical edges are
carefully aligned with the scales on
the top and left side of the
document table.
3. Close the ADF slowly. Be careful
not to move the document.
top corner of
document

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
