Installing the TCP/IP Protocol
125
When you have your IP address, follow the steps below to assign it to your computer.
1. Select
TCP/IP
on the list of
installed network components,
and then click the
Properties
button. If necessary, click the
IP
Address
tab.

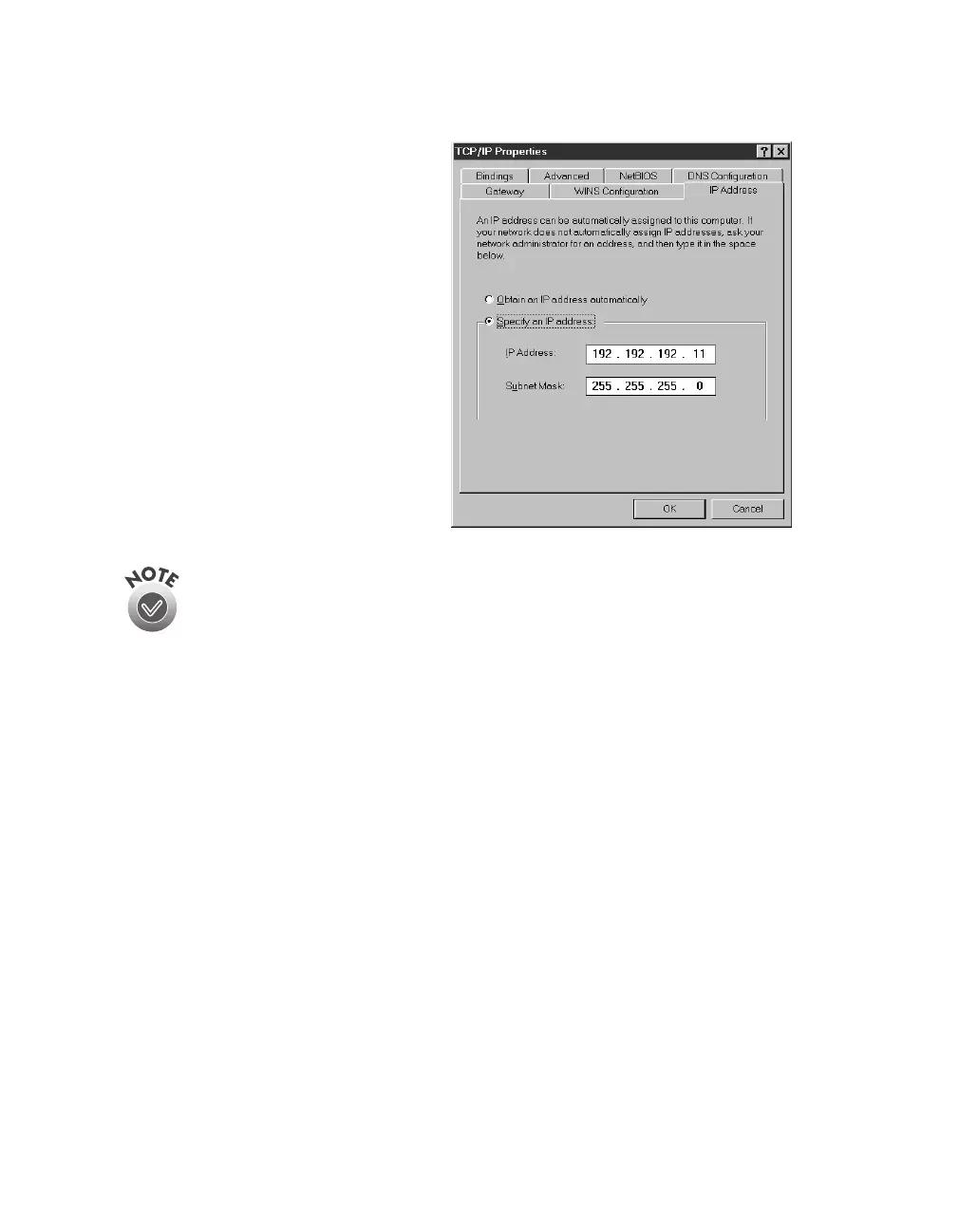

2. Click
Specify an IP address
,
and then enter the IP address
and subnet mask.
If you’re using a DHCP server on your network, you can assign an IP
address automatically by selecting Obtain an IP address automatically and
clicking OK.
3. Click
OK
to close the TCP/IP Properties window, then click
OK
again to close
the Network window and have your IP address assignment take effect.
Make sure you share the IP address for the scanner server with all client computers on
the network.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
