Epson GT-30000 User Manual

28
Installing the Software
Testing the Scanner’s Operation (Windows Me)
Follow these steps to test scanner operation:
1. Open the Windows Control Panel and
double-click the
Scanners and
Cameras
icon to open the Scanners and
Cameras Properties window.

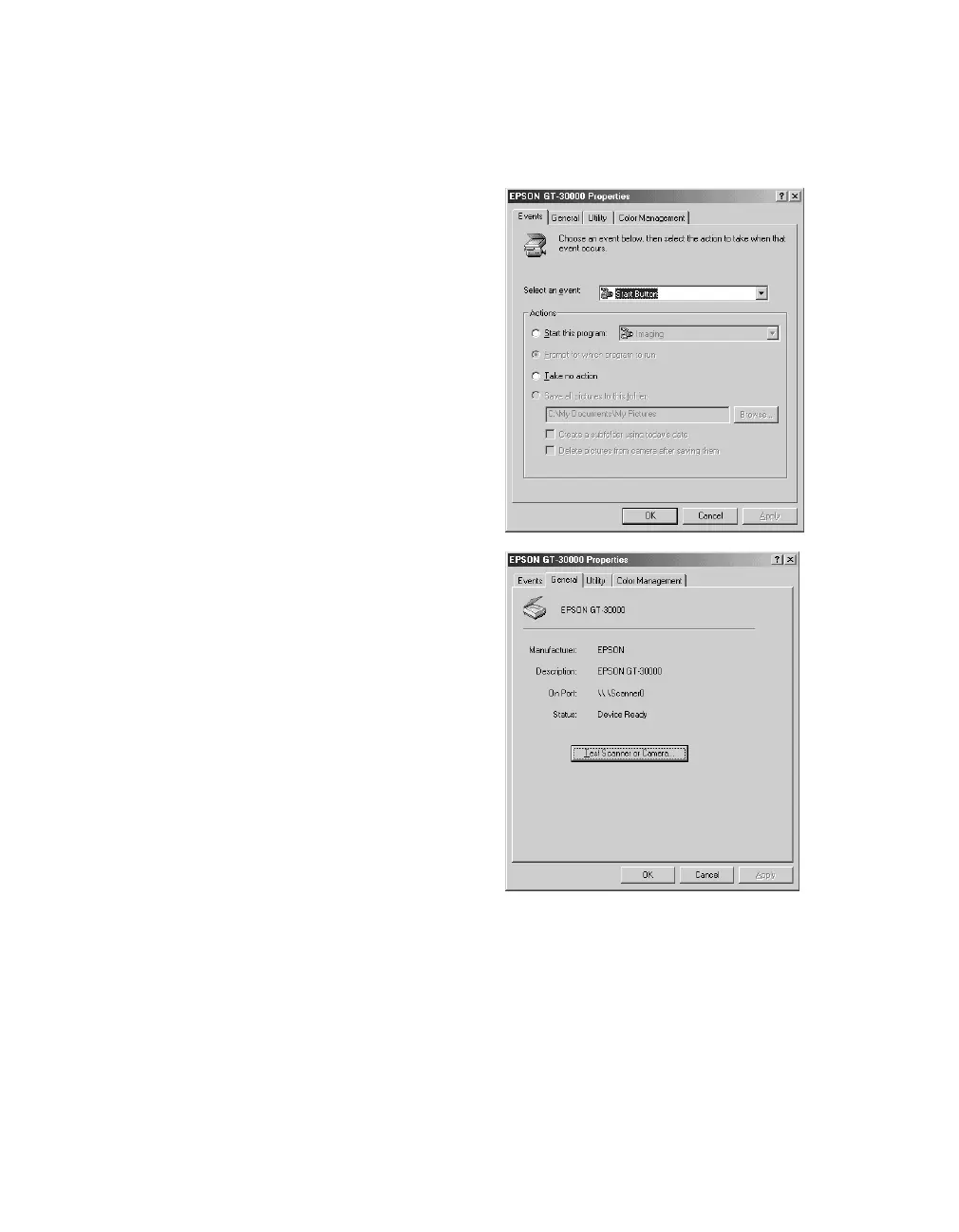

2. Double-click the
EPSON GT-30000
icon to display the Properties window.
3. Click the
General
tab, then click the
Test Scanner or Camera
button. If
the scanner is operating properly, a Test
Successful message displays. Click
OK
to
close the message.
Device Ready
appears next to
Status
on the Properties
window.
4. Click
OK
to close the Properties
window.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
