Epson GT-30000 User Manual

Installing the Software
37

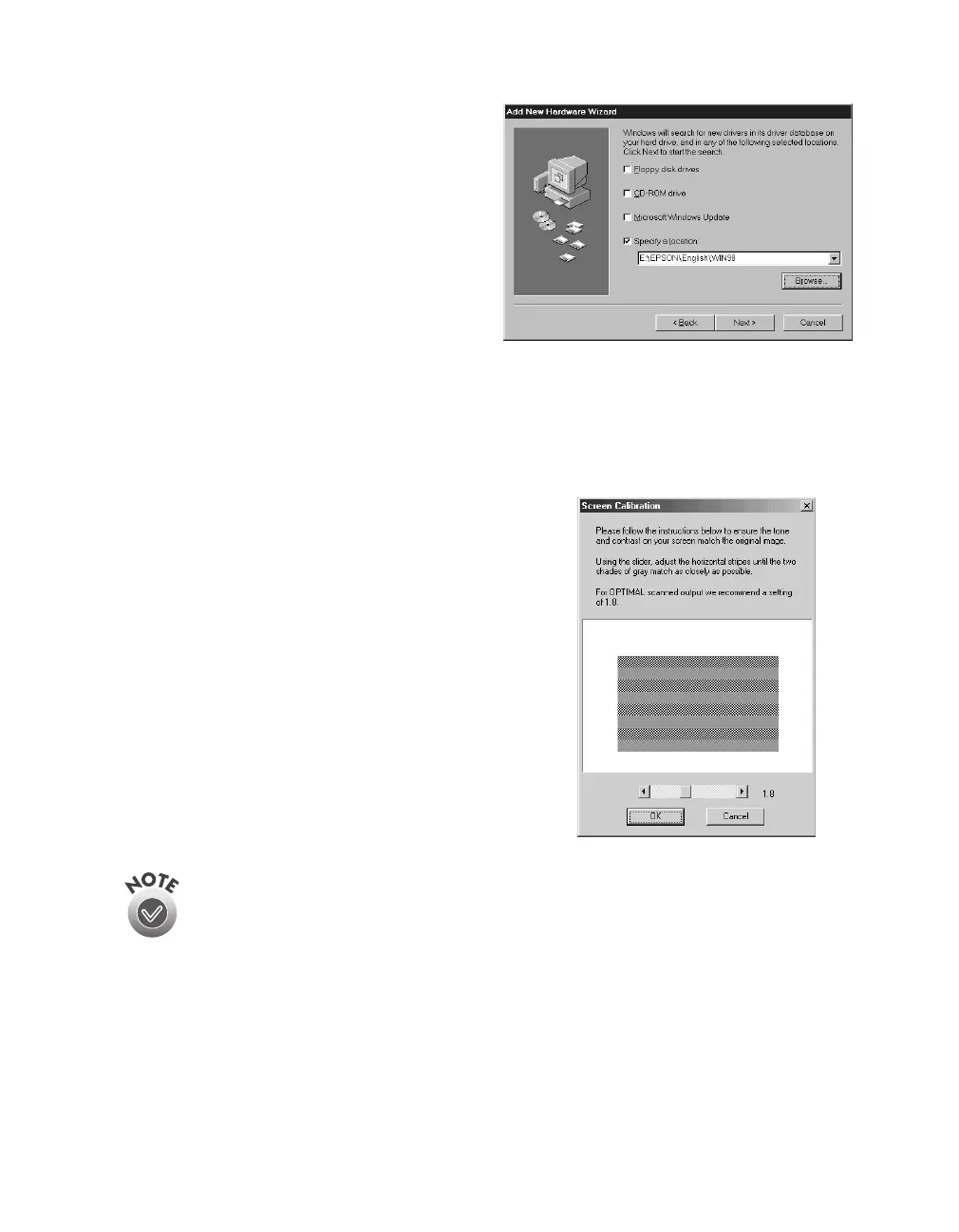

4. Select
Specify a location
, if
necessary. Browse to
EPSON\English\WIN98
on your
CD-ROM drive. Then click
Next
.
(The example on the right shows “E”
as the CD-ROM drive. Your
CD-ROM drive letter may be
different.)
5. Follow the instructions on the screen.
If you see a message asking for your Windows 98 CD-ROM, insert it and click
OK
(or select
Specify a location
, click
Browse
, and locate the Windows 98
source files on your hard drive. Then click
OK
.) When prompted, reinsert your
scanner software CD-ROM.
6. When you see the Screen Calibration window,
move the slider right or left until the stripes
match as closely as possible. (The stripes will
not match perfectly. The recommended setting
is 1.8.) Then click
OK
.
The EPSON Screen Calibration Utility
calibrates the preview image you see in your
EPSON TWAIN HS driver to match your
monitor settings.
You won’t need to change the screen calibration as long as you continue
to use the same display. If you need to recalibrate your screen at a later
time, double-click the Scanners and Cameras icon in your Windows
Control Panel to open the Scanners and Cameras Properties window.
Select EPSON GT-30000 on the Devices tab, if necessary, and click the
Properties button to display the EPSON GT-30000 Properties window.
Click the Utility tab, and then click the Screen Calibration Utility button.
7. When installation is complete, click
Finish
.
Continue with the instructions in the next section to install Acrobat Reader, if
necessary, and register your scanner online.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
