Epson GT-30000 User Manual

40
Installing the Software

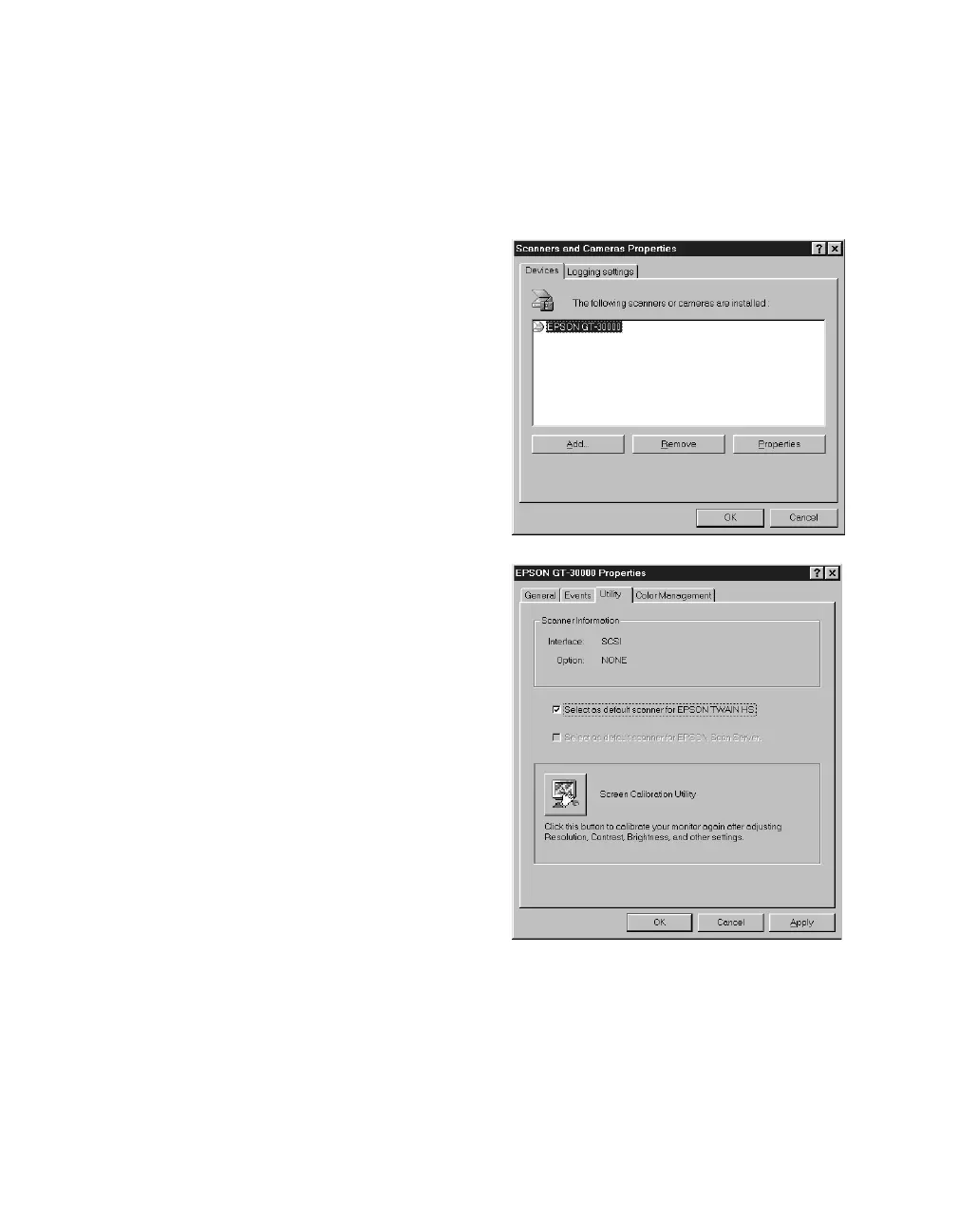

Selecting the GT-30000 as Your Default Scanner
(Windows 98)
If you have more than one scanner connected to your computer and you’re running
Windows 98, you can set up the EPSON GT-30000 as your default scanner.
1. Open the Windows Control Panel and
double-click the
Scanners and
Cameras
icon to open the Scanners and
Cameras Properties window.
2. Select
EPSON GT-30000
, if necessary,
and click the
Properties
button.
3. Click the
Utility
tab. Make sure
Select
as default scanner for EPSON TWAIN
HS
is checked, and then click
OK
.
4. Click
OK
to close the Scanners and
Cameras Properties window.
The default scanner remains in effect until
you use this procedure to change it again.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
