Epson ProSix S5 Series User Manual

Maintenance 9. Cable Unit
S5 Rev.5 169

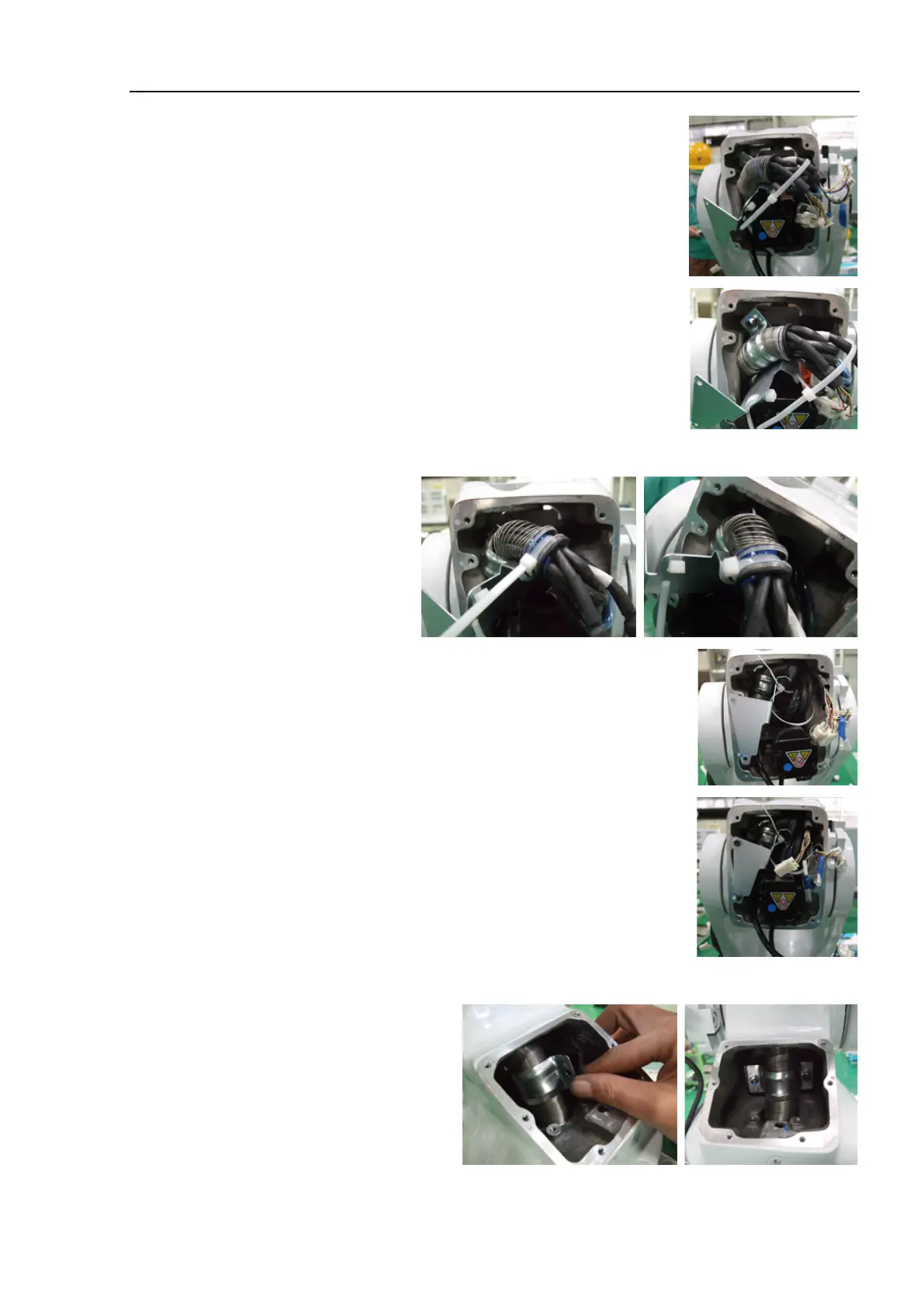

(6)
Secure the wire tie as shown
in the picture.
(7)
Mount
the saddle to the supporting plate.
GT-SA bolt : M4×10
Tightening torque : 2.8 N·m (0.29 kgf·m)
(8)
Secure the cables to the supporting plate as shown in the picture.
(9)
Loosely secure the cables in the Arm #3
with a wire
tie.
(10)
Secure
the supporting plate to the Arm #3.
GT-SA bolt : 2-M4×10
Tightening torque : 2.8 N·m (0.29 kgf·m)
(11)
Mount the saddle to the spring (some
winds from the end) of the lead line.
