Maintenance 9. Cable Unit
170 S5 Rev.5

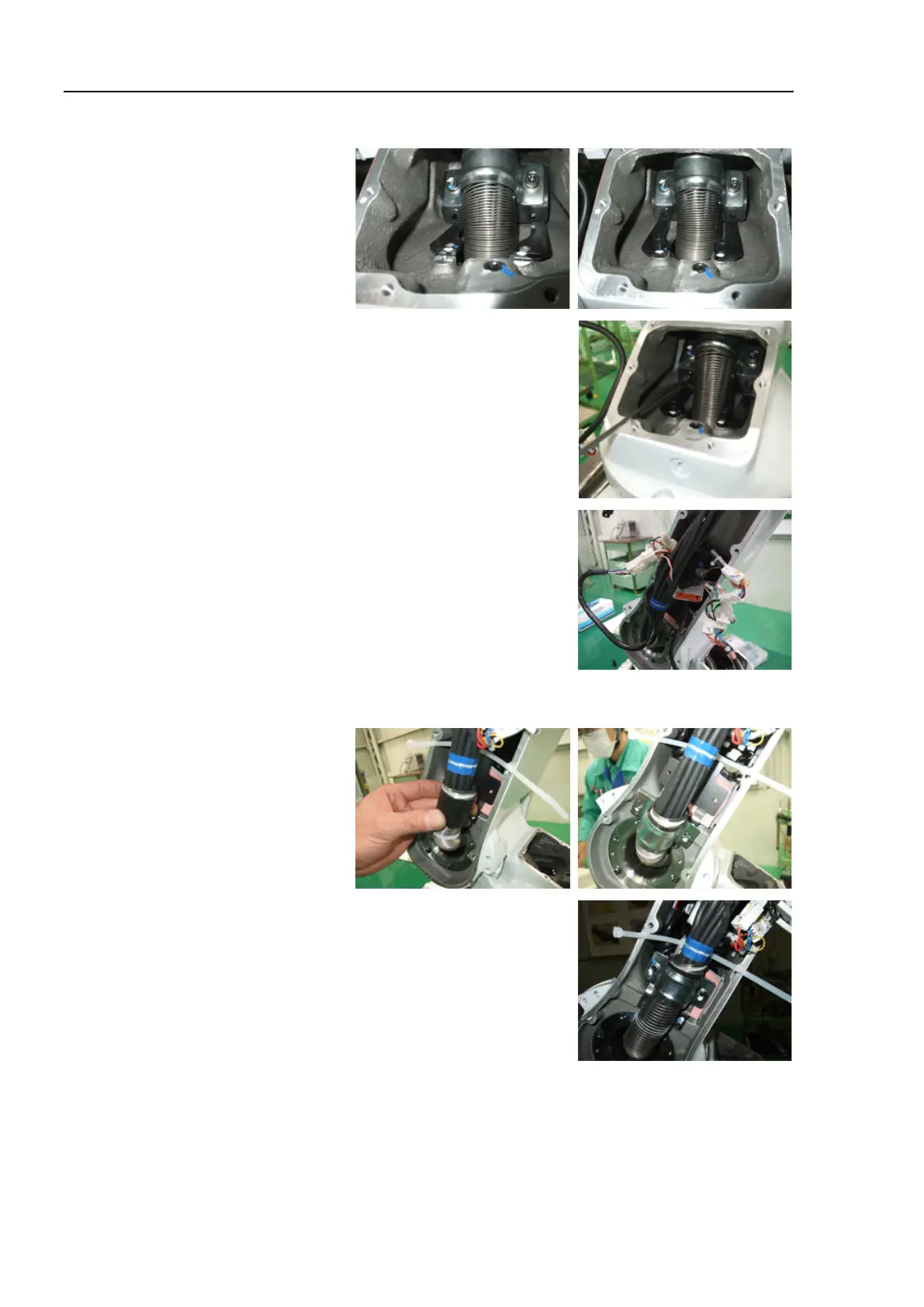

Mount the supporting plate inside the Arm #1.
ecure the supporting plate and saddle.
the connector to the lead line.
Remove the backup battery.
Connector: For Joint #2 (L), For Joint #3 (U)
Mount the rubber plate and saddle to the spring (some winds from the end) of the
lead line.
Secure the saddle to the Arm #2.
Hexagon socket head cap bolt
: 2-M4×6
(with disc spring 2H-4, M4 washer)
Tightening torque
: 2.8 N·m (0.29 kgf·m)
To Next Page
