Maintenance 9. Cable Unit
172 S5 Rev.5

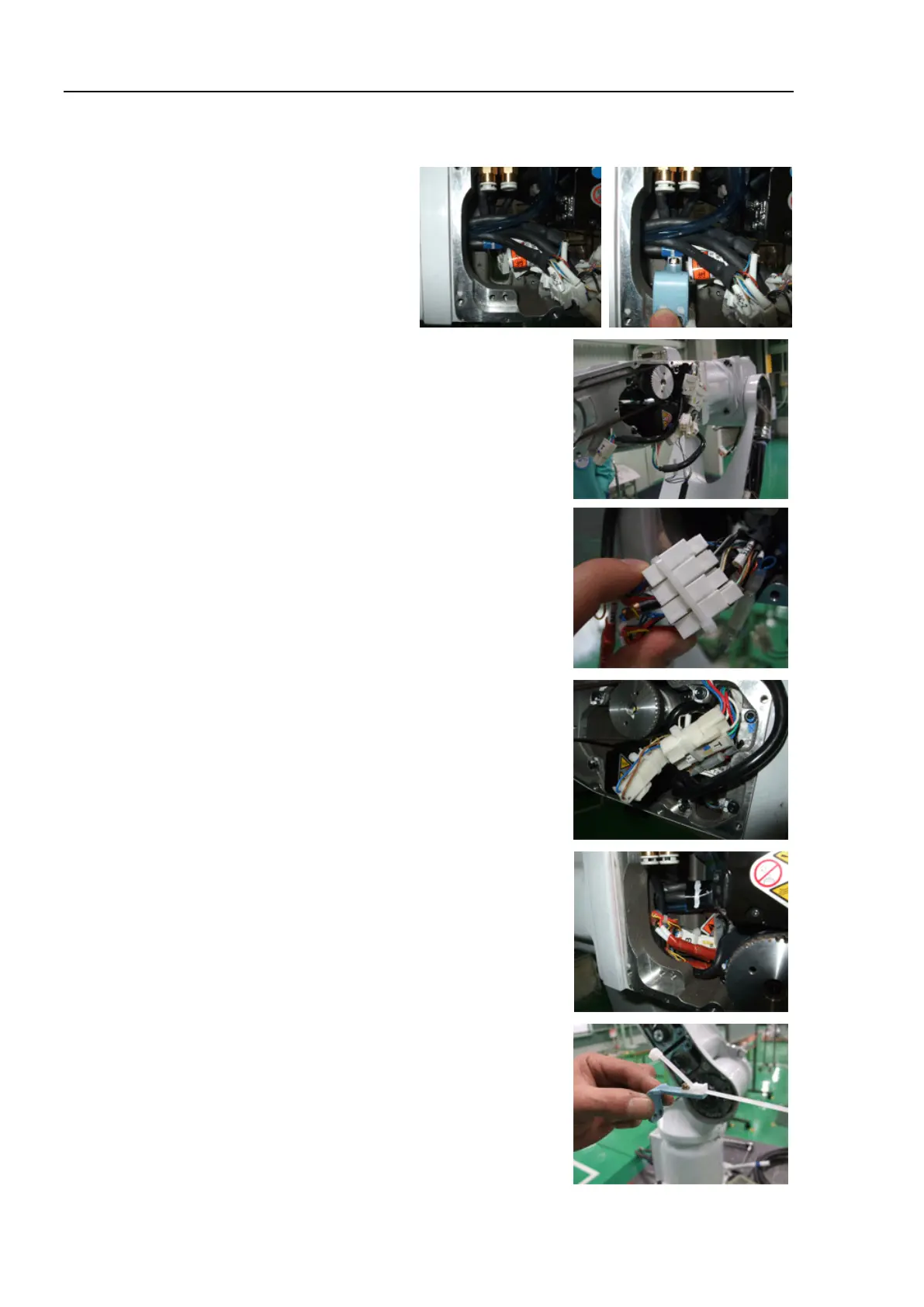

(22)
Put the cable
in the position in the Arm #4 as shown in the picture below, with the
white marking
on the cable as the guide.
(23)
Connect the connector to the lead line.
Remove the backup battery.
Connector: For Joint #5 (B), For Joint #6 (T)
(24)
Bind the signal connectors with a wire tie as
shown in the picture.
Connector: For Joint #5 (B), For Joint #6 (T)
(
25)
Bind the power connectors with a wire tie as
shown in the picture.
Connector: For Joint #5 (B), For Joint #6 (T)
(26)
Put the connector of the signal cable in the
position shown in the picture.
(27)
Pass the wire tie through the cable
fixing plate.
