Epson ProSix S5 Series User Manual

Setup & Operation 1. Safety
S5 Rev.5 11

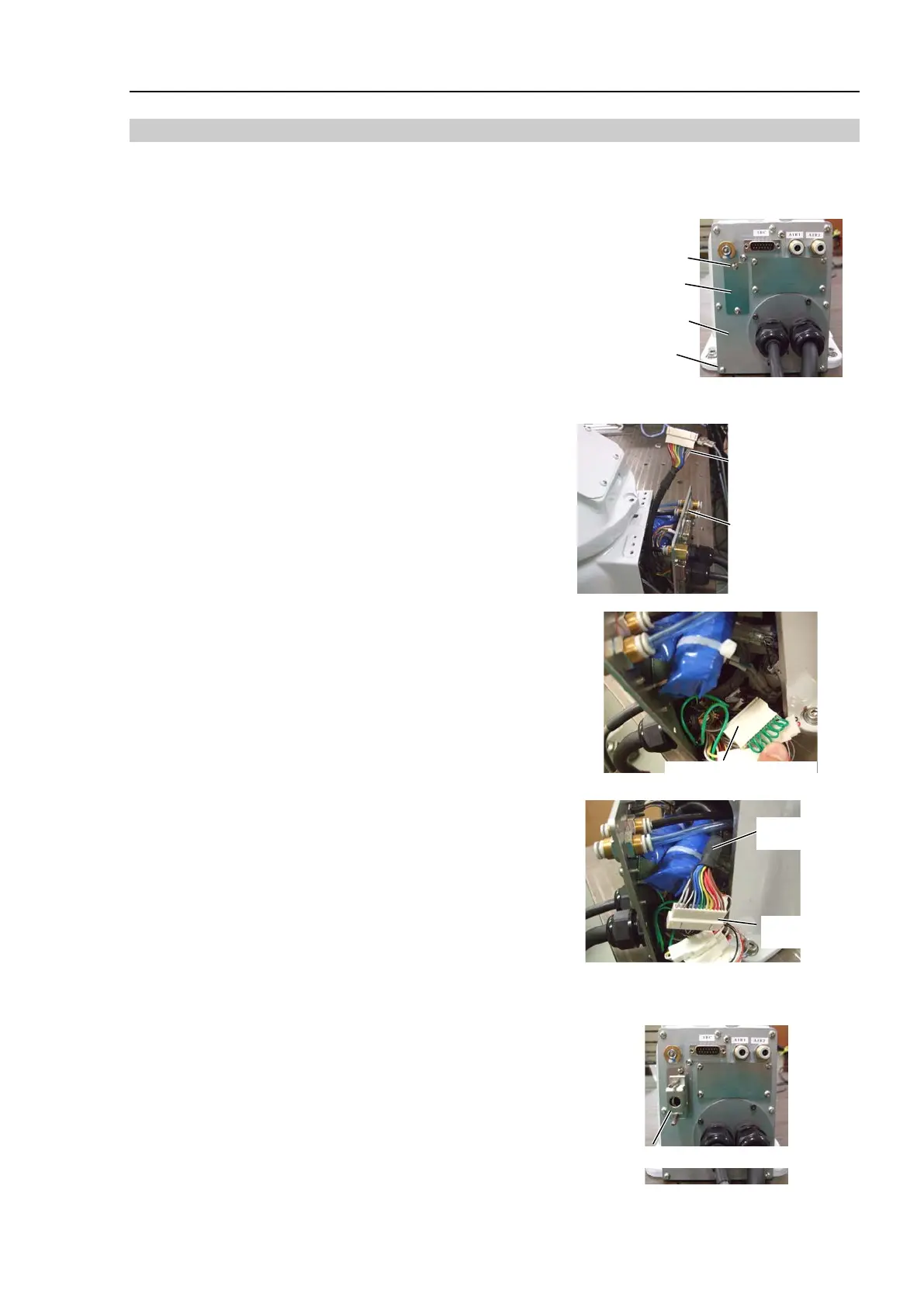

How to connect the connection cable
If you purchased the manipulator and connection cable together, the cable has been
installed to the manipulator before shipment. This procedure is not necessary.
(1)
Turn OFF the controller.
Connector plate
Hiding plate
(2) 2-M4×8
(3) 4-M4×8
(2)
Remove the hiding plate.
2-M4×10
(3)
Open the connector plate.
4-M4×10
(4)
Pass the cable through the hole below
the hiding plate from the outside.
Connect
the connection cable to the
connector plate.
2-M4×10
Connection cable
Connector plate
(5)
Take out the connector of internal cable
SW1.
Internal short connector
(6)
Disconnect the internal short connector.
Keep the short connector to the inside of
base or somewhere not to lose.
(7)
Connect the connection cable and
internal
cable SW1.
Connector
SW1
Connection
cable
(8)
Mount the connector plate. Be careful not to catch the cables.
4-M4×10
(9)
If the brake release unit is not used,
mount the external short
connector.
To prevent the external short connector
from falling
off, secure the two screws
included with the connector.
External short connector
