2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 91
Installing Software
Before installing the PROFIBUS-DP master board manufactured by molex to the PC with
EPSON RC+ 7.0 installed, you must install the applicomIO Console application and
drivers according to the type of board you are using.

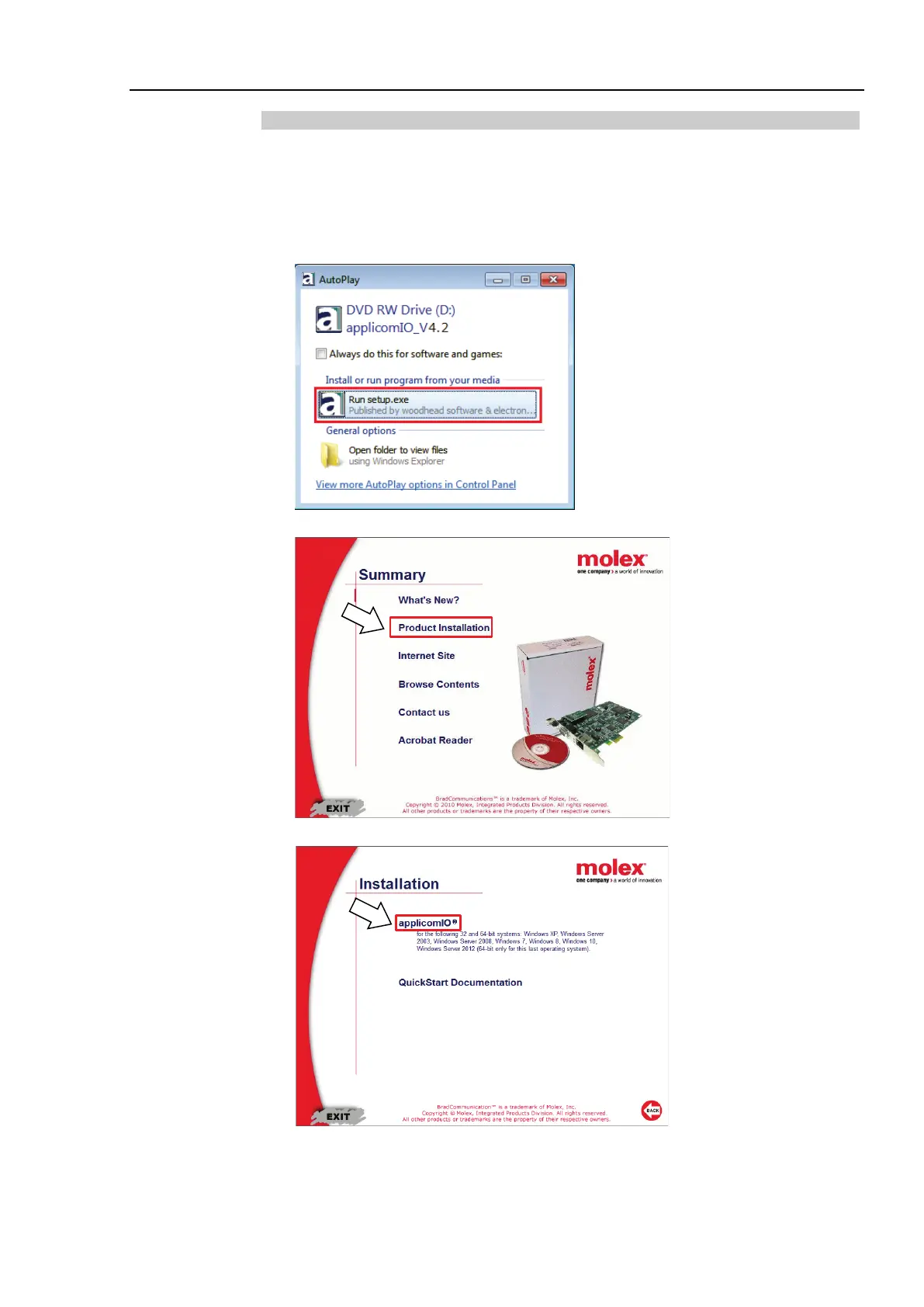

1. Insert the applicomIO Console CD-ROM to the PC with EPSON RC+ 7.0 installed.
2. The following dialog box appears. Select “Run setup.exe”.
3. The [Summary] dialog box appears. Select “Product Installation”.
4. The [Installation] dialog box appears. Select “applicomIO”.
