2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 193

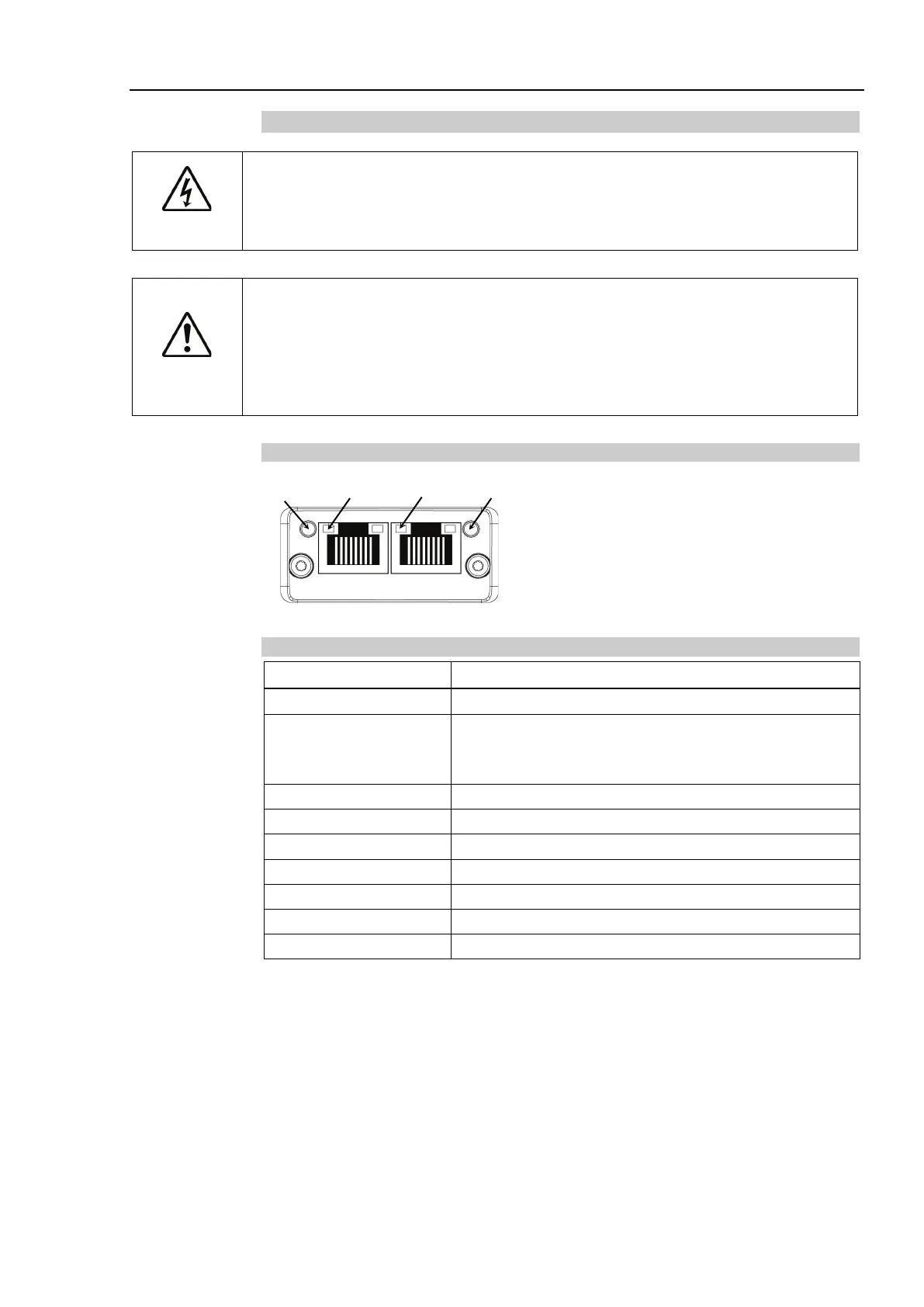

2.3.6 Installing EtherNet/IP Slave Module
WARNING
■
Make sure that the power is turned OFF before installing/removing any
modules
or connecting/disconnecting any cables. Working with the power ON is
extremely hazardous and may result in electrical shock and/or malfunction of
equipment.
CAUTION
■
Pay attention to the followings in order to prevent the th
e connecter from coming
off.
1. Use the connectors attached to the module.
2. Insert the connectors all the way seated.
3. Fix the cables at proper positions in order not to put a load on the
connectors.
Appearance
NS LED
MS LED
(port 1) (port 2)
LINK/Activity LED
Specifications
Item
Specification
Name
EtherNet/IP slave module
Supported Connection
I/O messaging connection (Cyclic),
Explicit messaging connection
EtherNet/IP communication protocol
Baud Rates
10 M, 100 M (bps)
Transfer Distance
Standard Ethernet protocol
Cable
Standard Ethernet protocol
Mode
Slave
Interface
1 EtherNet/IP port
Max. Input data size
2048 bits (256bytes)
Max. Output data size
2048 bits (256bytes)
