2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 129
2.3.3 Installing EtherNet/IP Master Board Manufactured by molex

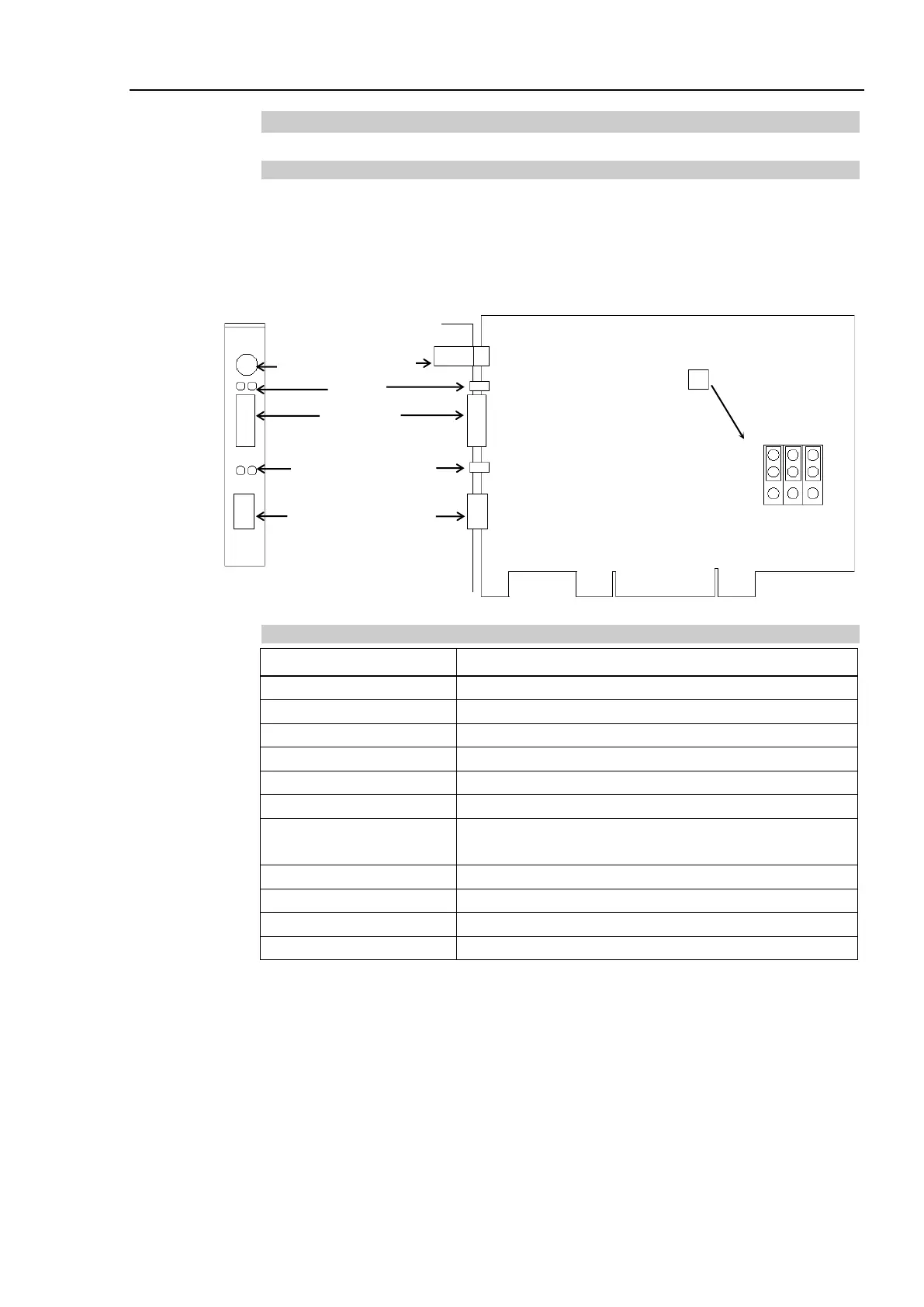

Appearance
Part names and functions of the EtherNet/IP Master Board manufactured by molex are
shown in the following figure. For details on the status display LEDs, refer to 4.
Troubleshooting in this manual.
PCU-ETHIO
C0 C1 C2
JP1
JP1
0
1
D-Sub 9 pin
(Not in use)
Status Display LED (2)
EtherNetI/P Connector
4-pin Terminal
Watchdog Port
(Do not use this port.)
Jumper Pin for Board Address
LED (2)
(Not in use)
Specifications
Item
Specification
Part Number
EtherNet/IPMaster Board manufactured by molex
Mode
Master
Baud Rates
10, 100 (Mbps)
Interface
EtherNet/IP 1 port
Maximum Node
127
Connection Type
Cyclic, Change of State
Explicit message
connection
Yes
EDS support
Yes
Max. Input Data Size
1024 bit (128 bytes)
Max. Output Data Size
1024 bit (128 bytes)
Automatic Detection
Yes. Devices can be detected automatically.
