2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 17
7. Install the DeviceNet board manufactured by Hilscher in your Controller.
When installing the DeviceNet master board manufactured by molex, refer to 2.1.3
Installing DeviceNet Master Board Manufactured by molex later in this chapter.
When installing the DeviceNet slave board, refer to 2.1.5 Installing DeviceNet Slave
Board later in this chapter.
8. Operate the DeviceNet network.
2.1.2 DeviceNet Network Construction
Network Configuration

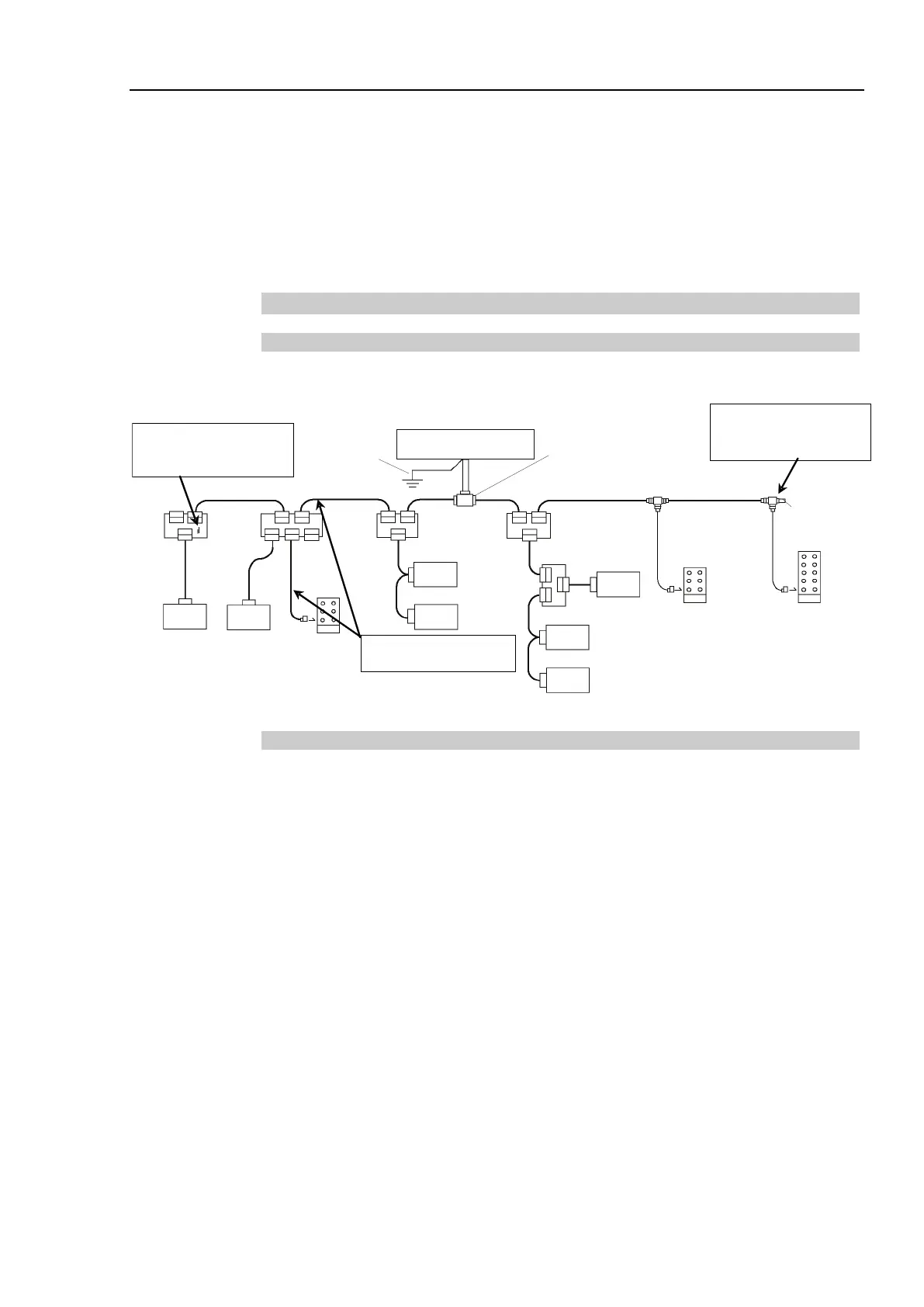

DeviceNet network is configured as shown in the following figure.
Communications
power supply
Node
Node
Node
Node
Node
Node
Node
Use DeviceNet cables.
Ground to
100 Ω or less.
T-branch
Tap
Drop Line
Drop
Line
Drop Line
Drop Line
Drop Line
Drop Line
Drop
Line
Waterproof
slave
T-branch
Connector
Attach a terminating
resistor on each end
of the trunk line.
Connector with
terminating
resistor
Trunk
Line
Trunk Line
Trunk Line
Trunk Line
Power Supply Tap or
T-branch Tap
DC24V
Attach a terminating
resistor on each end
of the trunk line.
T-branch
Tap
T-branch
Tap
T-branch Tap
Trunk
Line
T-branch
Connector
Drop
Line
Drop
Line
Waterproof
slave
Node
There are two types of nodes: master and slave. The master controls a network and
gathers data from its slaves. The slaves, including external I/O and other devices, output
data in response to the master’s output order and informs the master of its input status.
You can install masters anywhere in the network. You can connect up to 64 nodes
(including the server) in the network.
