RC700 / RC90 Option Fieldbus I/O Rev.14 227
2.5.2 Installing PROFINET Slave Module
WARNING
■
Make sure that the power is turned OFF before installing/removing any
modules
or connecting/disconnecting any cables. Working with the power ON is
extremely hazardous and may result in electrical shock and/or malfunction of
equipment.
CAUTION
■
Pay attention to the followings in order to prevent the th
e connecter from coming
off.
4. Use the connectors attached to the module.
5. Insert the connectors all the way seated.
6. Fix the cables at proper positions in order not to put a load on the
connectors.

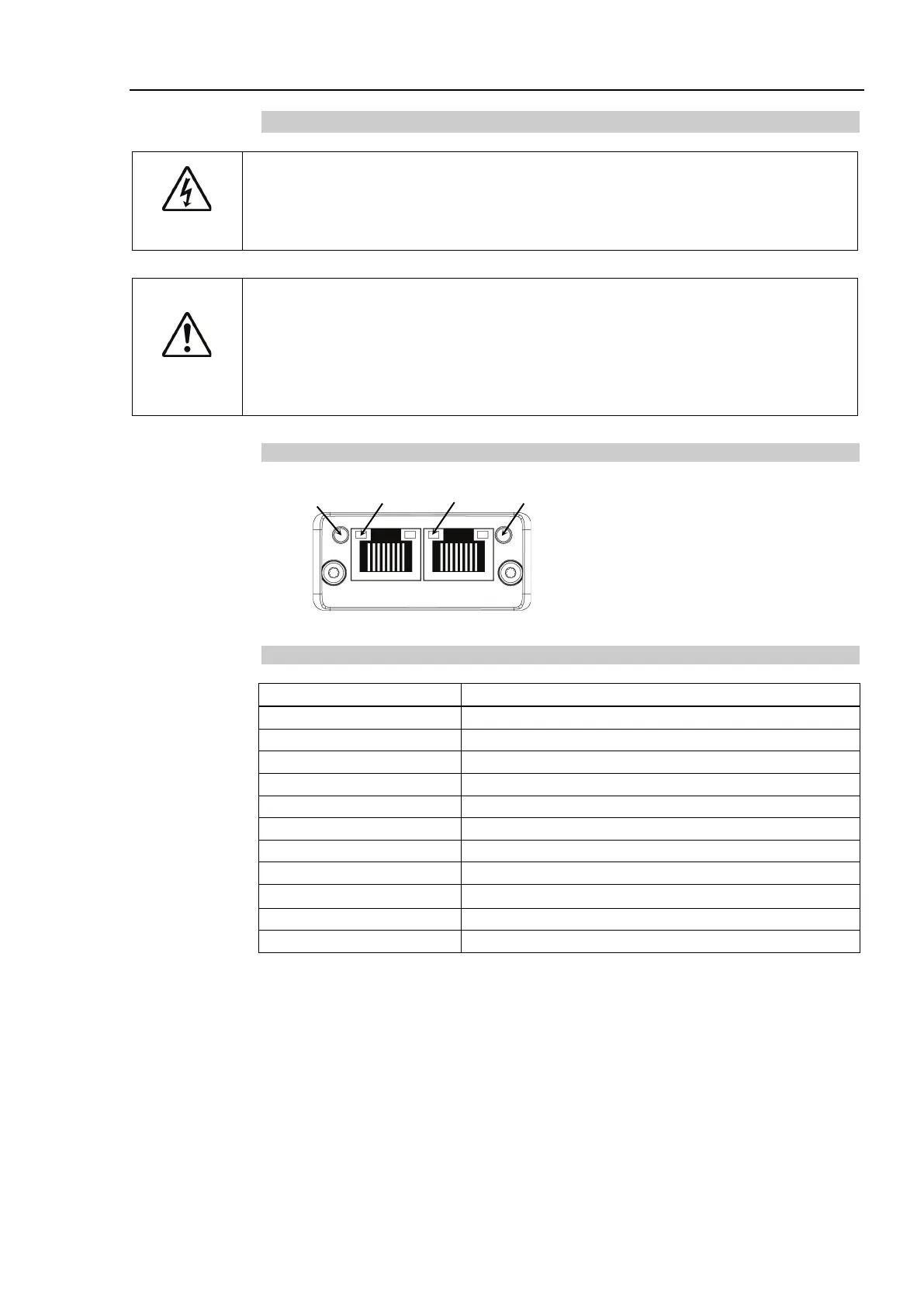

Appearance
NS LED
MS LED
(port 1) (port 2)
LINK/Activity LED
Specifications
Item
Specification
Name
PROFINET Slave Module
Connection Method
RT (Real-Time)
Protocol
PROFINET IO
Device type
IO device
Baud Rates (bps)
100 M bps, full duplex
Maximum segment length
100 m
Cable
RJ45 with connector 100BASE-TX (Cat5)
Cycle time
2 ms
Interface
RJ45 port × 1
Input Data Size
Max. 2048 bits (256 bytes)
Output Data Size
Max. 2048 bits (256 bytes)
