2. Installation
142 RC700 / RC90 Option Fieldbus I/O Rev.14

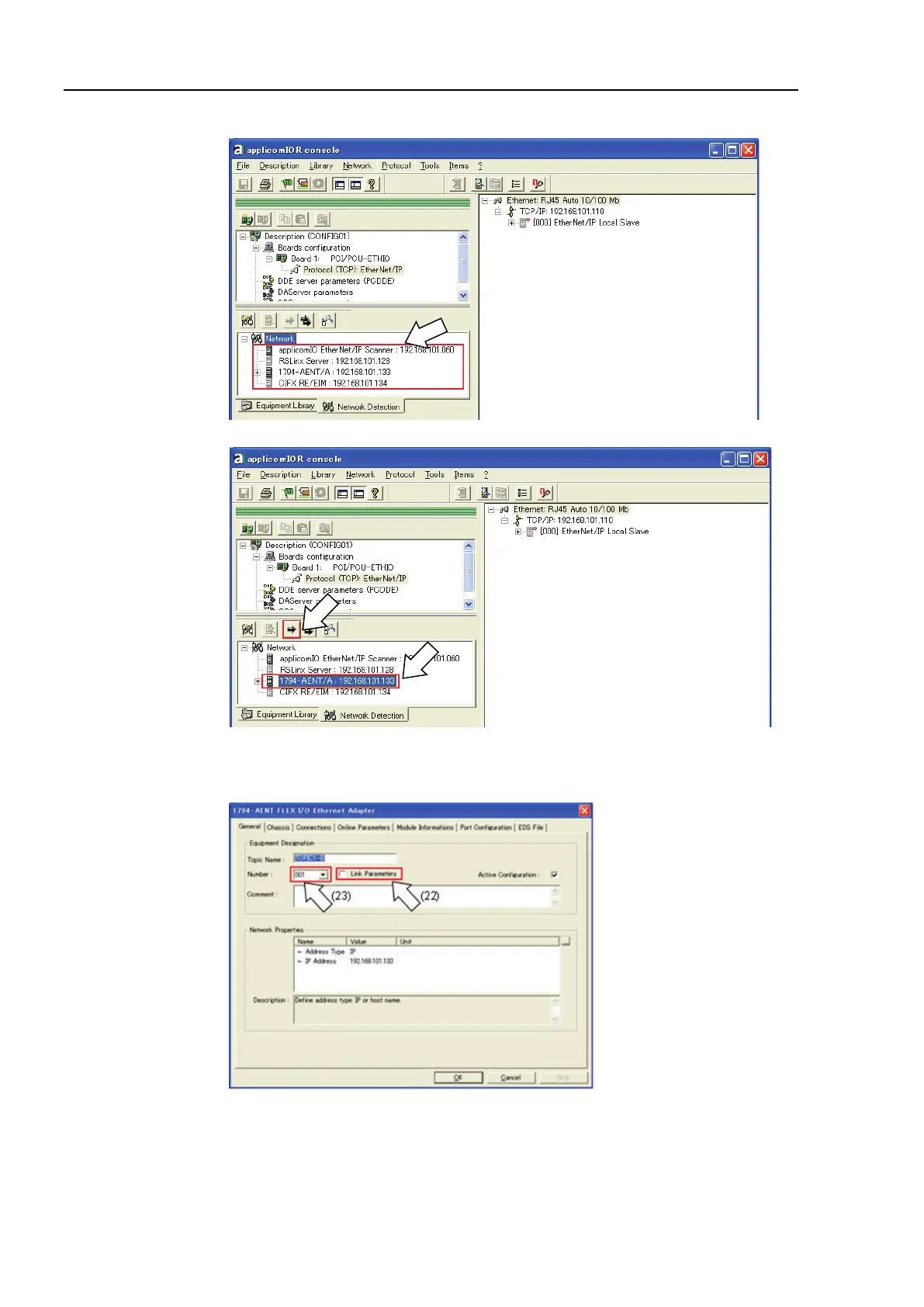

19. The list of detected devices is displayed in the [Network detection] panel.
20. Select a device you want to scan.
21. Click <Insert in Configuration>.
22. The following dialog box appears.
Uncheck the [Link Parameters] checkbox.
23. Assign a number in the range from 1 to 127 in <Number: >.
This number is āDevice IDā. It is required when creating a SPEL+ program.
To Next Page
