2. Installation

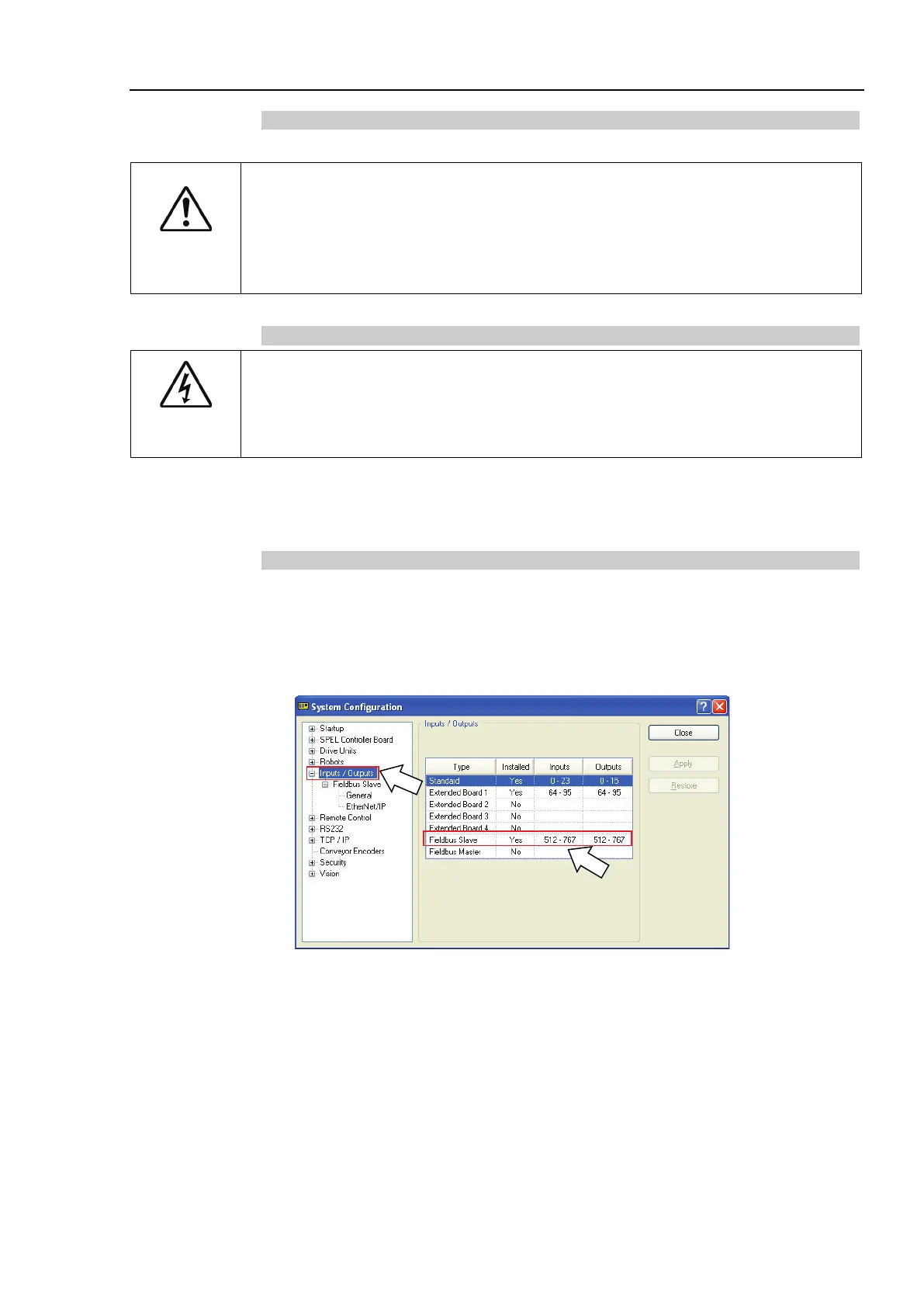

RC700 / RC90 Option Fieldbus I/O Rev.14 195
Wiring
Use a standard Ethernet connector for wiring to the board.
CAUTION

You can use the general Ethernet hub or Ethernet switch for the EtherNet/IP.
However, be sure to use a product complying with the industrial standards or
noise resistant Ethernet cable (STP cable). If you use an office use product or
UTP cable, it may c
ause communication errors and may not offer the proper
performance.
Installing Module
WARNING

Make sure that the power is turned OFF before installing/removing any
modules
or connecting/disconnecting any cables. Working with the power ON is
extremely hazardous and may result in electric shock and/or malfunction of
equipment.
Install the module to the dedicated slot on the T/VT series Manipulator.
Reference: Manipulator manual Setup & Operation 17. Fieldbus I/O
Confirmation and Configuration of EPSON RC+ 7.0
When the EtherNet/IP slave module is installed to the T/VT series Manipulator, it is
recognized automatically. Confirm whether EPSON RC+ 7.0 has recognized the
EtherNet/IP slave module using the following procedure.
1. Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(2)
(3)
2. Select [Inputs / Outputs].
3. Confirm that the following items are displayed in “Fieldbus Slave”.
Installed : Yes
Inputs : 512-767 (default setting)
Outputs : 512-767 (default setting)
