4. Troubleshooting (PROFIBUS DP)
298 RC700 / RC90 Option Fieldbus I/O Rev.14
Slave: Data Link Error
MS
NS
Master LED Condition
Light OFF
Red Light Blinking
Absent Slave LED Condition
(Data link error)
Light OFF Red Light ON

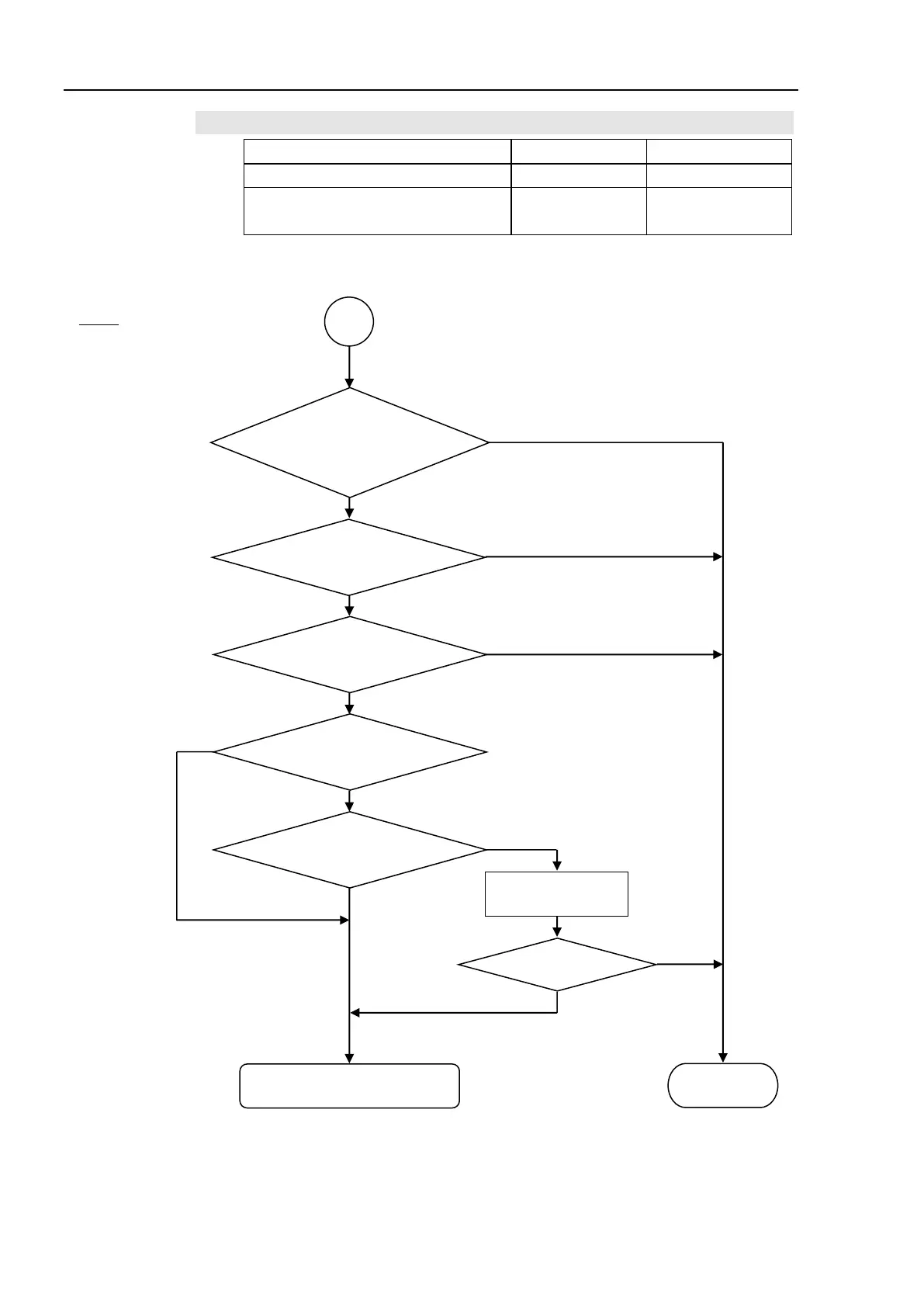

♦ Process Flowchart
Replace the unit.
3
 No Problem
Check
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
Finish
 No Change
 No Change
 The trouble unit is not found.
Rarely
Problem exists. (Fix it.)
No change
Immediately
The unit is not found.
The unit is found.
Yes
The problem is fixed.
The problem is fixed.
No
No problem
See 4.2.3.1 and 4.2.3.2.
See 4.2.3.3.
No change
Check for noise influence.
Divide the network and
find the trouble unit.
Does an error occur immediately?
Normal Communication?
Consult the PROFIBUS manufacturer.
Replace moving cable.
(Replace deteriorated cable).
