Epson RC90 User Manual

2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 71
EPSON RC+7.0 Configuration
To use the Fieldbus master board, the Robot system option setting and Fieldbus master
setting should be enabled on the EPSON RC+ 7.0.
(1) Select [Setup]-[Option Setting] and display the [Option] dialog box.
(2) Refer to the EPSON RC+ Users Guide 23. Installing Controller Options and
enable the Fieldbus Master option.

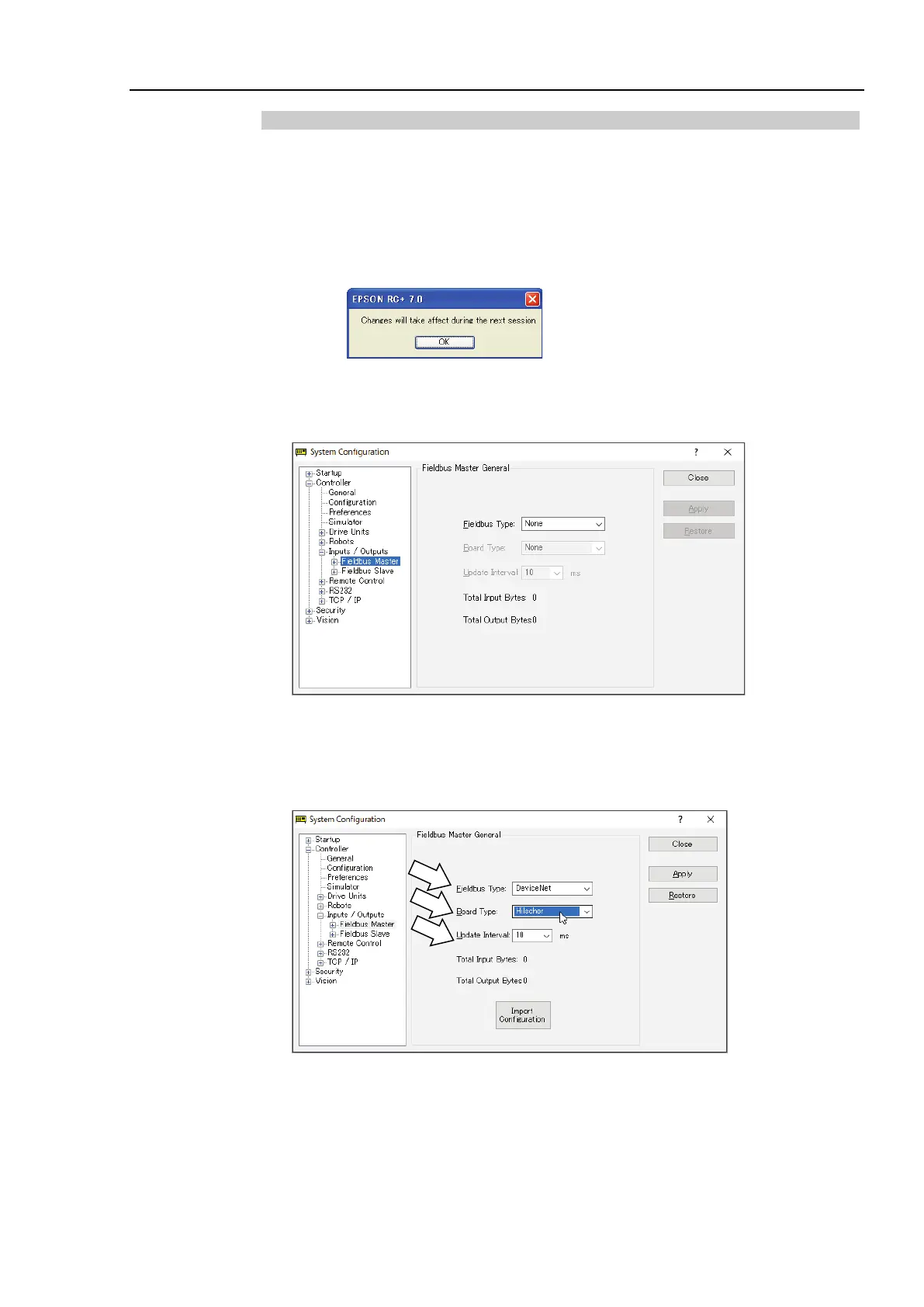

(3) The following message dialog box appears.
Click <OK> and reboot EPSON RC+7.0.
After EPSON RC+7.0 is started, the option setting is enabled.
(4) Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(5) Select [Inputs/Outputs]-[Fieldbus Master]-[General].
(6) Set the following items:
[Fieldbus Type:] DeviceNet
[Board Type:] Hilscher
[Update Interval:] Update cycle for the DeviceNet master I/O
Click <Import Configration>.
