Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 104
SE Group Confidential (Related Staff Only)

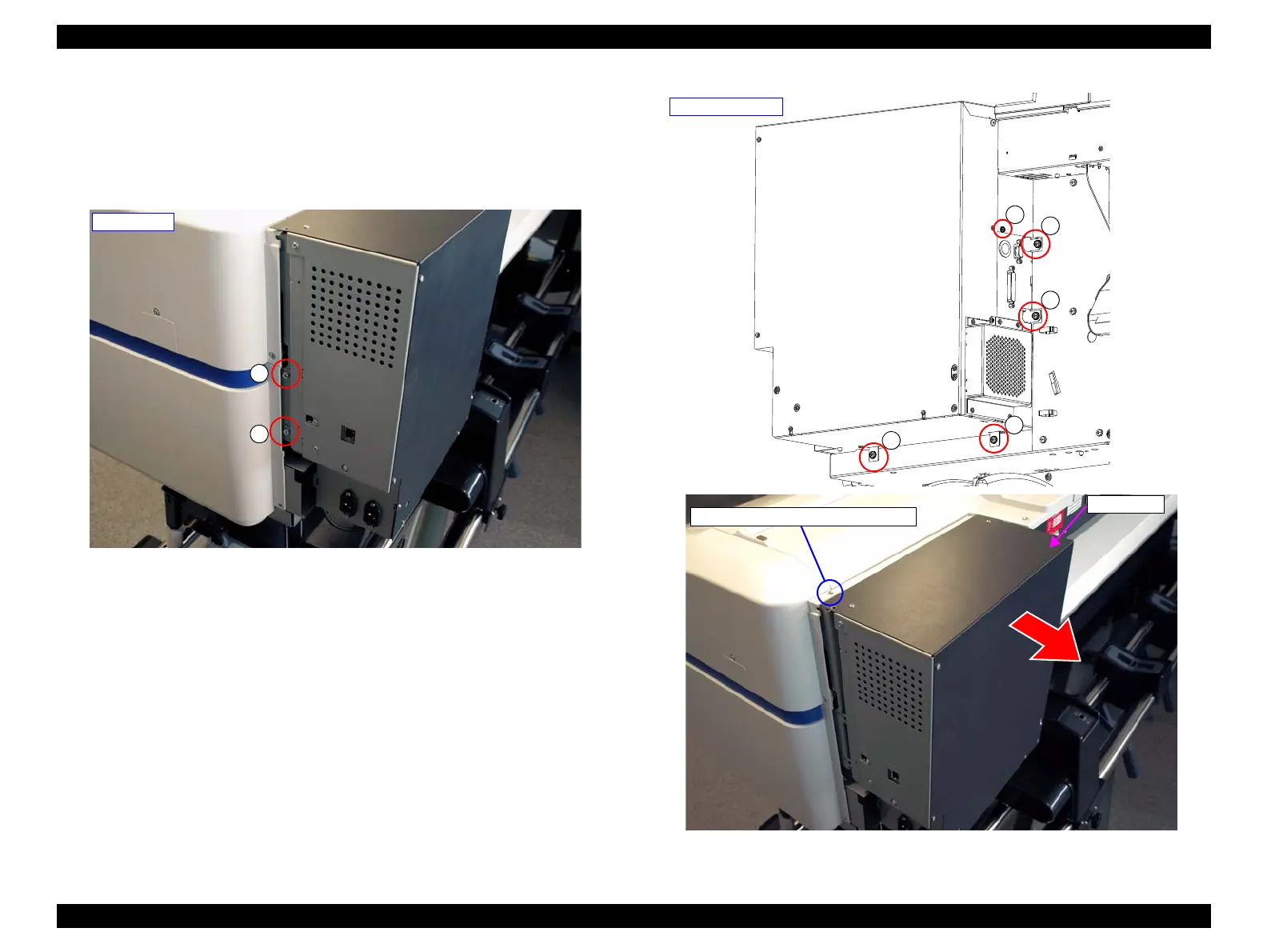

5. Remove the seven screws that secure the Board Box, and slide the Board Box in
the direction of the arrow.
B) Silver M4x10 screw with washer: 6 pcs
C) Silver M3x6 screw: 1 pcs
Figure 3-21. Sliding the Board Box
Figure 3-22. Sliding the Board Box
B
B
- Right side -
Board Box
Slide the box until this screw appears.
B
B
B
B
C
- Right rear side -
