Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 105
SE Group Confidential (Related Staff Only)
6. Remove the five screws that secure the Right Upper Cover.
D) Silver M4x12 P-tite screw with washer: 1 pcs
E) Silver M3x10 P-tite screw with washer: 1 pcs
F) Silver M3x8 S-tite screw with washer: 1 pcs
G) Silver M4x10 S-tite screw with washer: 2 pcs

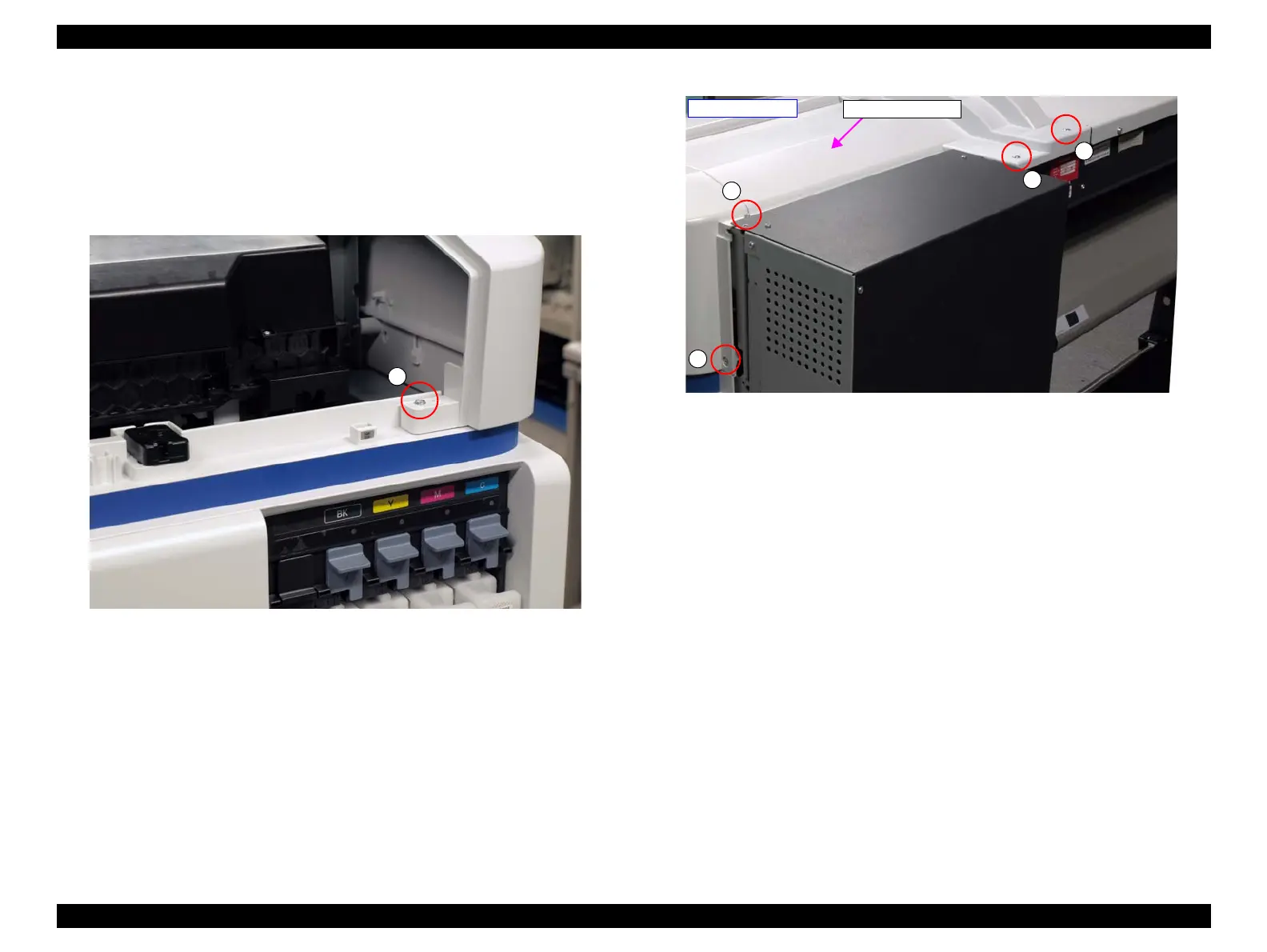

Figure 3-23. Removing the Right Upper Cover
Figure 3-24. Removing the Right Upper Cover
D
E
F
G
G
- Right rear side -
Right Upper Cover
