Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 108
SE Group Confidential (Related Staff Only)
3.4.3.5 Right Cover
1. Remove the Media Loading Lever. (p210)
2. Remove the Panel Unit. (p101)
3. Remove the Right Upper Cover. (p103)
4. Remove the three screws, and remove the Right Cover.
A) Silver M3x8 P-tite screw with washer: 1 pcs
B) Silver M4x12 S-tite screw with washer: 2 pcs

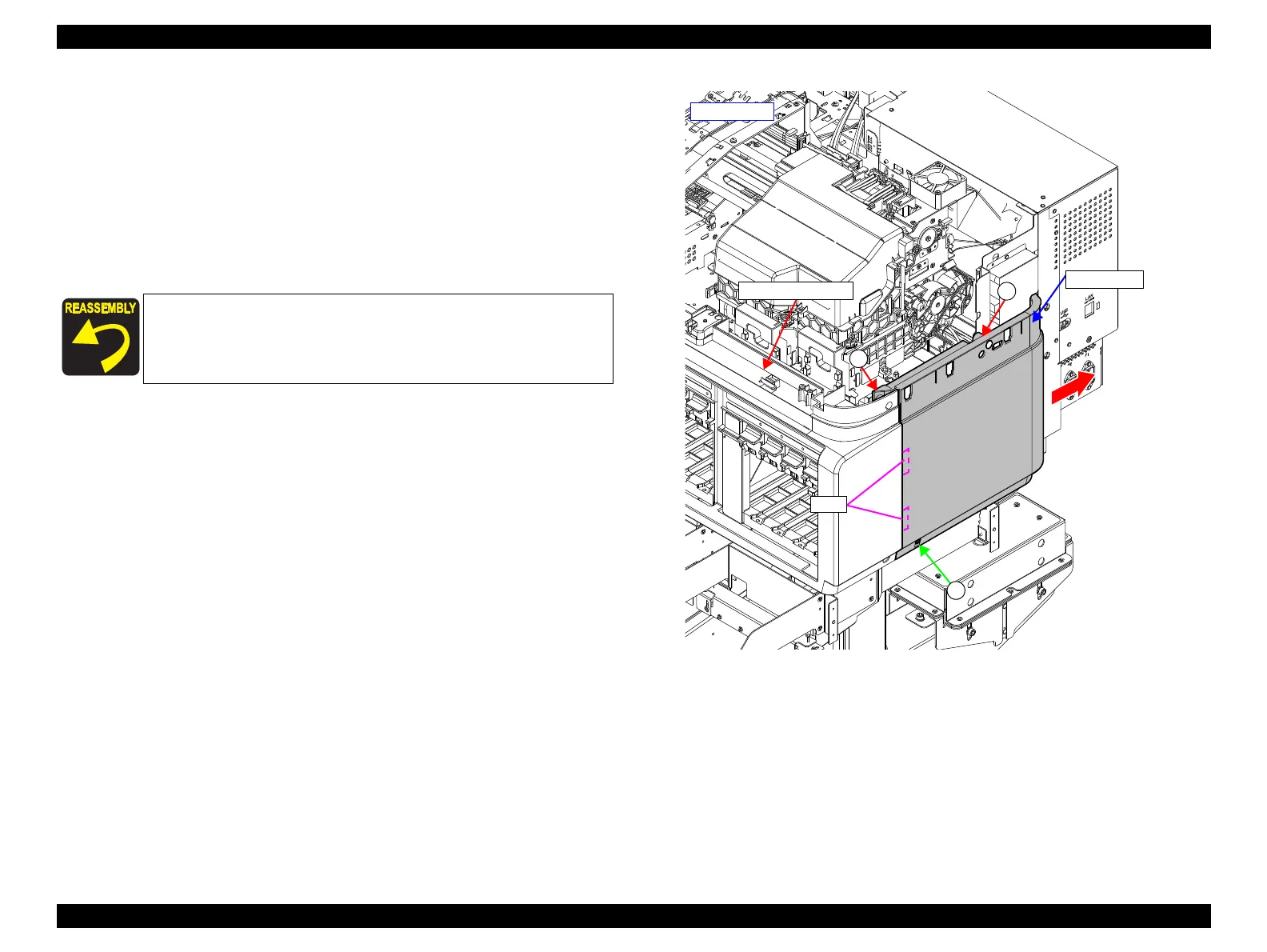

Figure 3-27. Removing the Right Cover
Insert the two tabs of the Right Front Cover into the two
positioning holes on the Right Cover.
B
B
A
- Right side -
Right Front Cover
Right Cover
Tabs
