SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 117
SE Group Confidential (Related Staff Only)
3.4.3.13 Board Box Cover
1. Remove the eight screws that secure the Board Box Cover.
A) Silver M3x6 screw: 8 pcs
2. Lift the Board Box Cover to remove it.

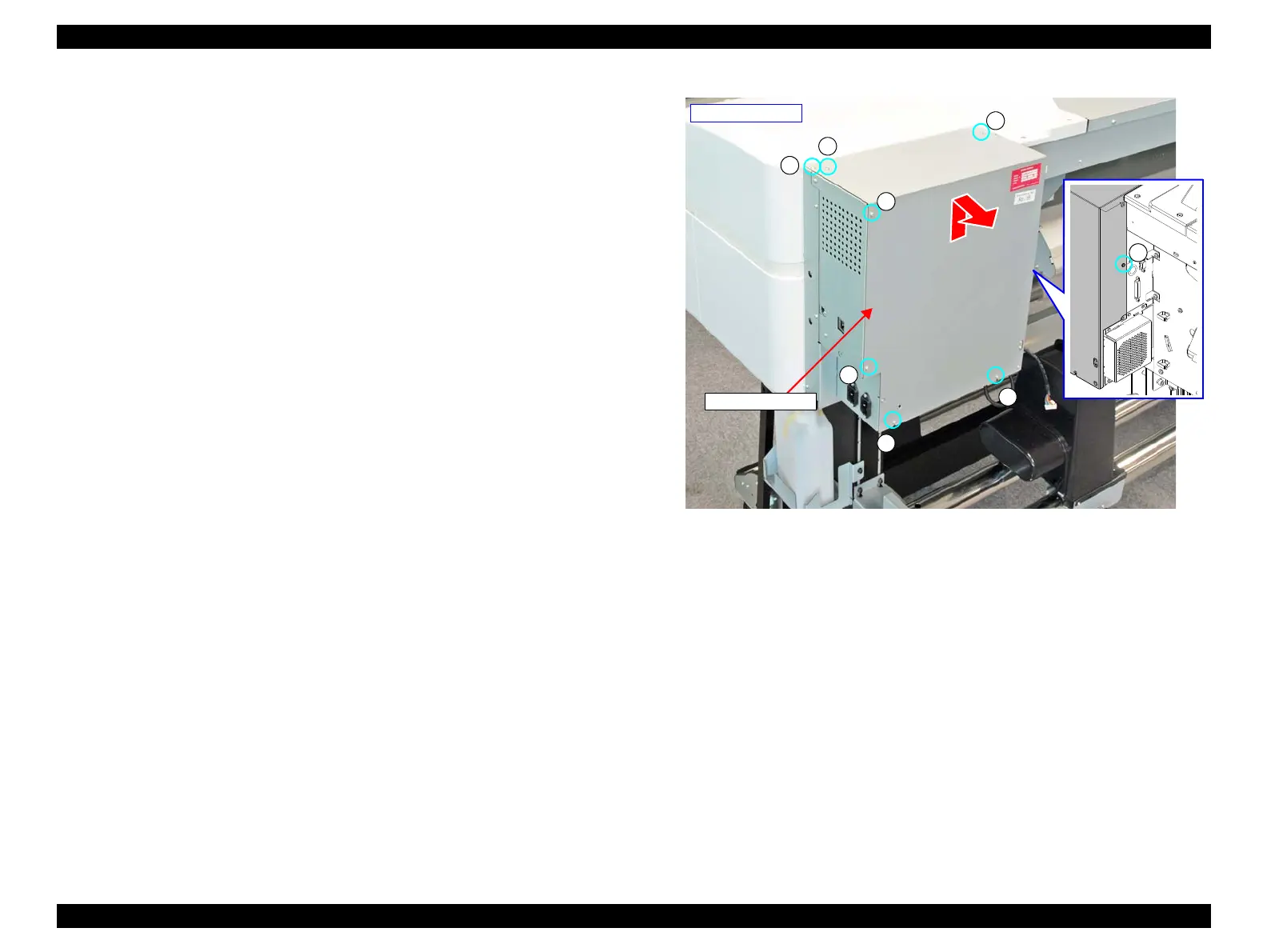

Figure 3-38. Removing the Board Box Cover
A
A
A
A
A
A
A
- Right rear side -
Board Box Cover
A
