DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 116
SE Group Confidential (Related Staff Only)
3.4.3.12 Upper Cover
1. Remove the Media Loading Lever. (p210)
2. Remove the Panel Unit. (p101)
3. Remove the Right Upper Cover. (p103)
4. Remove the Left Rear Cover. (p110)
5. Remove the Left Upper Cover. (p111)
6. Remove the 13 screws, and remove the Upper Cover.
A) Silver M4x10 S-tite screw with washer: 5 pcs
B) Silver M4x8 S-tite screw with built-in washer: 8 pcs

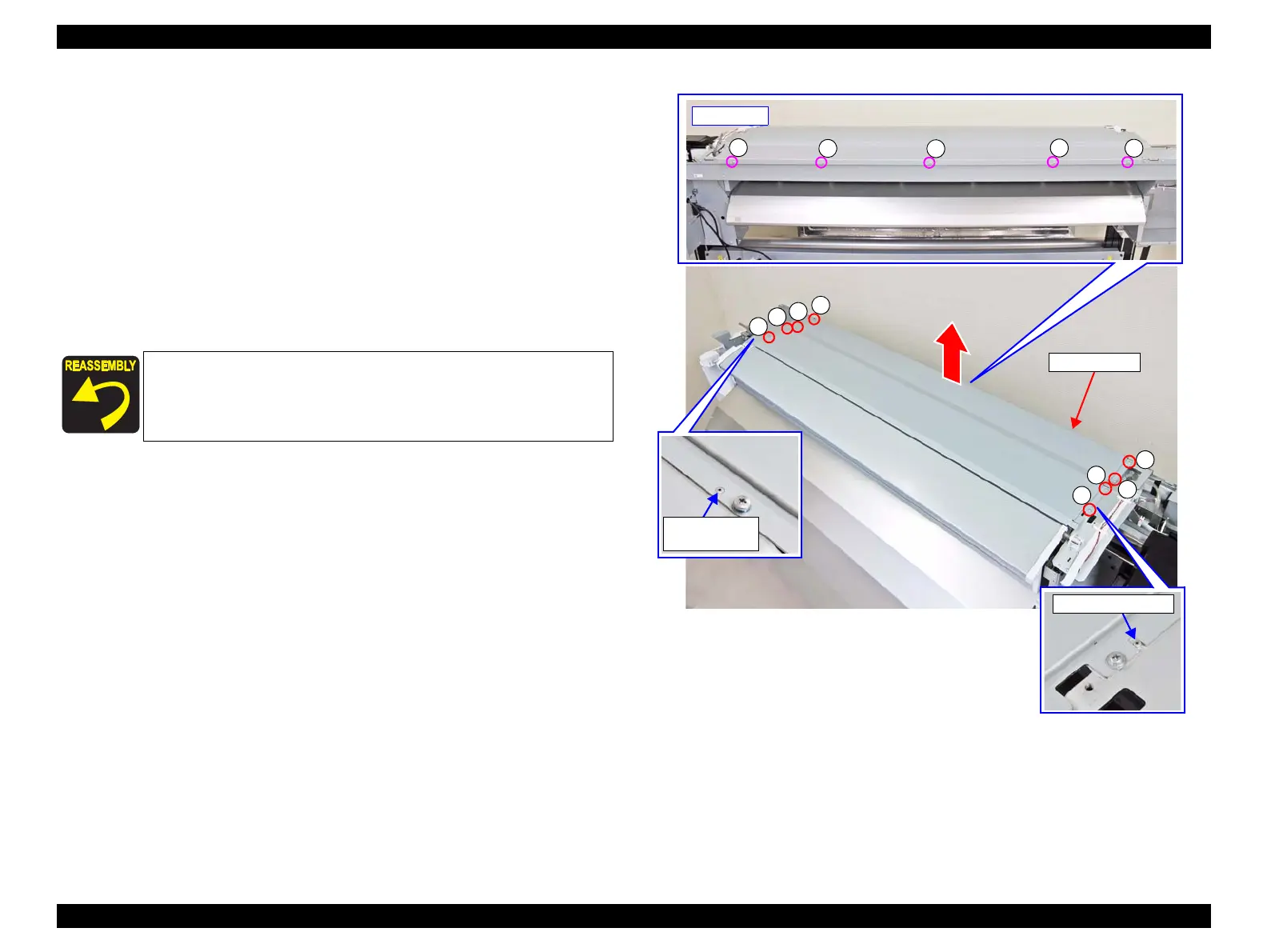

Figure 3-37. Removing the Upper Cover
Align the positioning hole and the cutout of the Upper Cover with
the two dowels of the frame.
A
A
A
A
A
- Rear side -
B
B
B
B
B
B
B
B
Positioning hole
and dowel
Cutout and dowel
Upper Cover
