Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 111
SE Group Confidential (Related Staff Only)
3.4.3.8 Left Upper Cover
1. Remove the Left Rear Cover. (p110)
2. Loosen the three screws (A) of the Left Rear Lower Cover.
3. Remove the seven screws that secure the Left Rear Lower Cover.
B) Silver M4x12 P-tite screw with washer: 3 pcs
C) Silver M4x10 S-tite screw with washer: 4 pcs
4. Remove the Left Rear Lower Cover in the direction of the arrow.

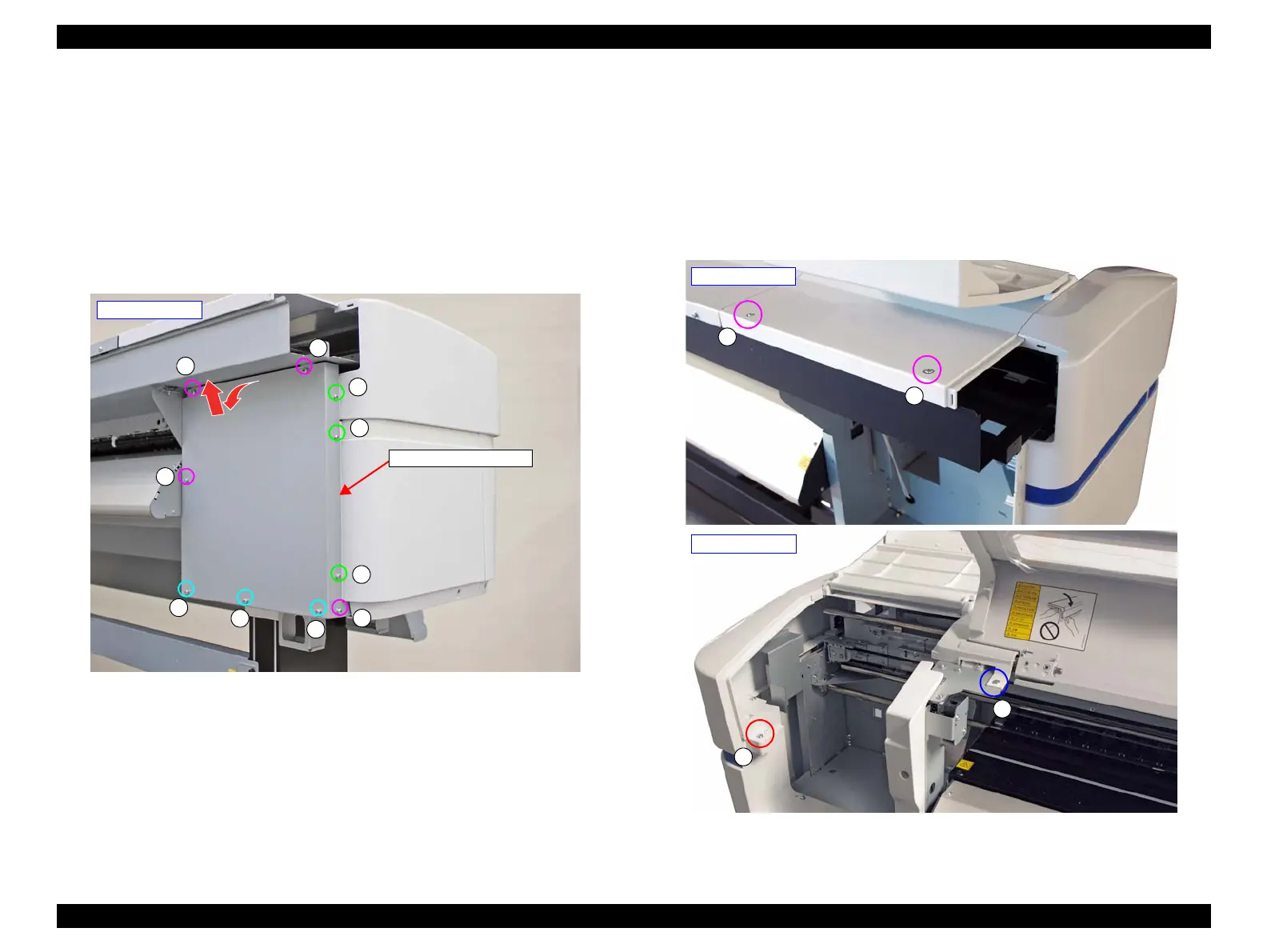

Figure 3-30. Removing the Left Rear Lower Cover
5. Open the Front Cover.
6. Open the Left Maintenance Cover.
7. Remove the four screws that secure the Left Upper Cover.
D) Silver M4x10 S-tite screw with washer: 2 pcs
E) Silver M4x12 P-tite screw with washer: 1 pcs
F) Silver M4x8 S-tite screw: 1 pcs
Figure 3-31. Left Upper Cover Fixing Screws
A
A
B
B
B
C
C
C
A
C
- Left rear side -
Left Rear Lower Cover
D
D
E
F
- Left rear side -
- Left front side -
