Epson SC-F9200 series

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 151
SE Group Confidential (Related Staff Only)
12. Release the Head FFC from the FFC Holders.

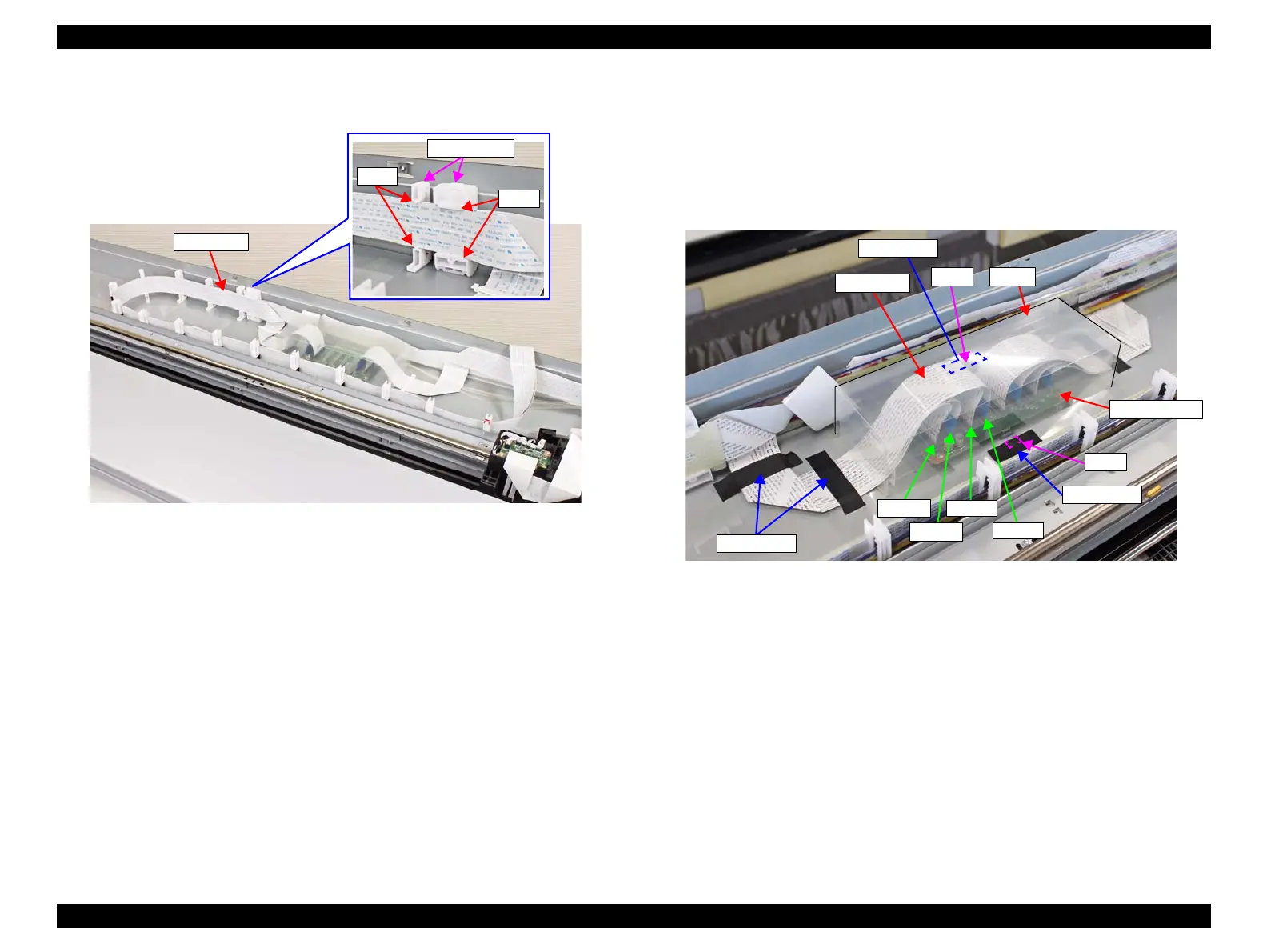

Figure 3-89. Releasing the Head FFC
13. Remove the two pieces of acetate tape.
14. Remove the two pieces of acetate tape, and release the cover from the two hooks
of the frame.
15. Disconnect the Head FFC from the connectors (CN404, CN405, CN406, CN407)
on the Sub-D Board, and remove the Head FFC.
Figure 3-90. Removing the Head FFC
FFC Holders
Hooks
Hooks
Head FFC
CN405
CN404
Acetate tape
Acetate tape
Acetate tape
Hook
CN407
CN406
Cover
Head FFC
Sub-D Board
Hook
