3.4.5.4 Head FFC
1. Remove the Media Loading Lever. (p210)
2. Remove the Panel Unit. (p101)
3. Remove the Right Upper Cover. (p103)
4. Remove the Left Rear Cover. (p110)
5. Remove the Left Upper Cover. (p111)
6. Remove the Upper Cover. (p116)
7. Remove the CR Cover. (p139)
8. Remove the Duct CR. (p140)
9. Remove the Print Head. (p144)
10. Disengage the two hooks, and remove the FFC Holder.

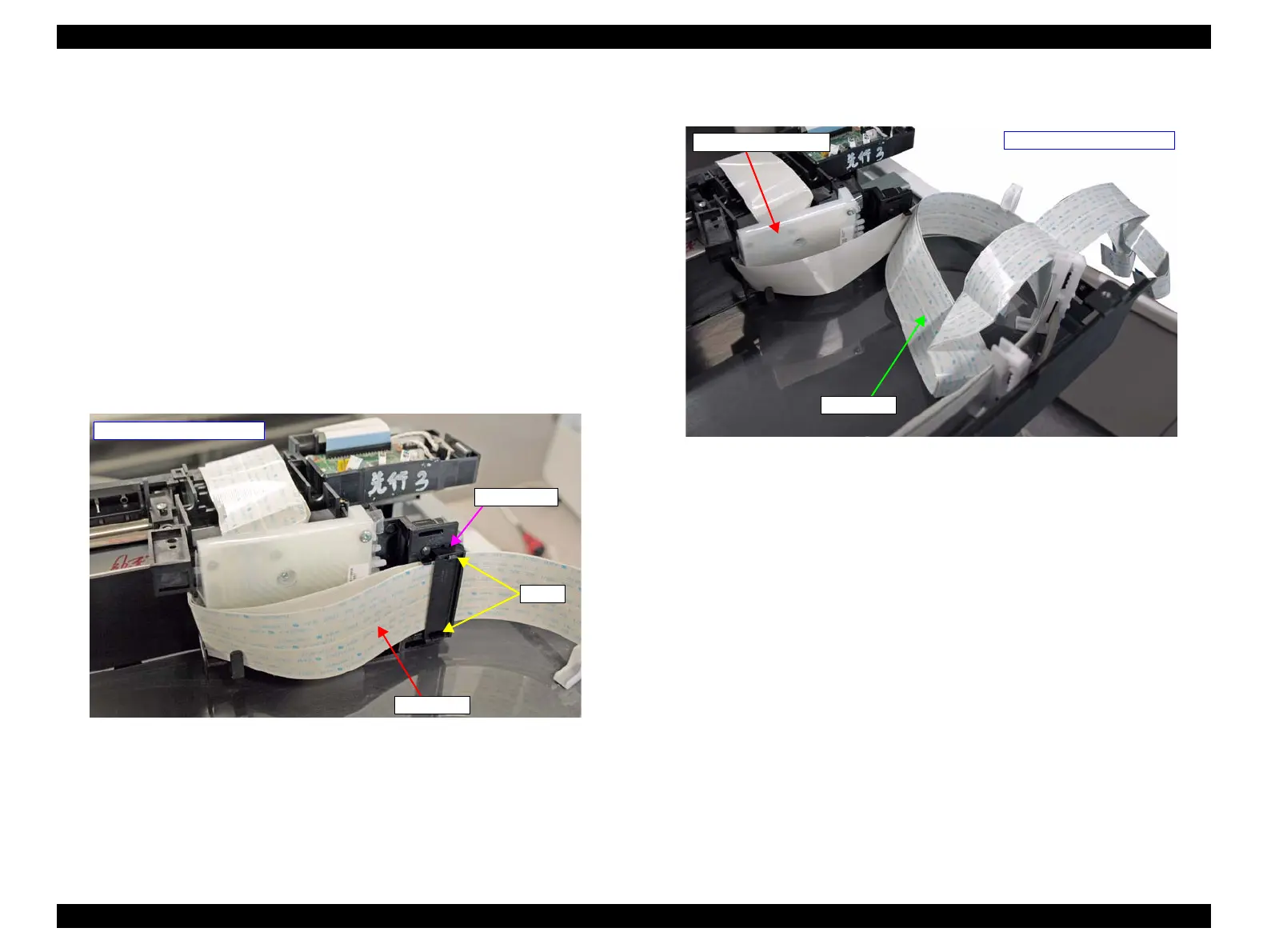

Figure 3-87. Removing the FFC Holder
11. Release the Head FFC from the Ink Path Holder Assy.
Figure 3-88. Released Head FFC
- Rear side of the CR Unit-
Hooks
FFC Holder
Head FFC
- Rear side of the CR Unit-
Ink Path Holder Assy
Head FFC
